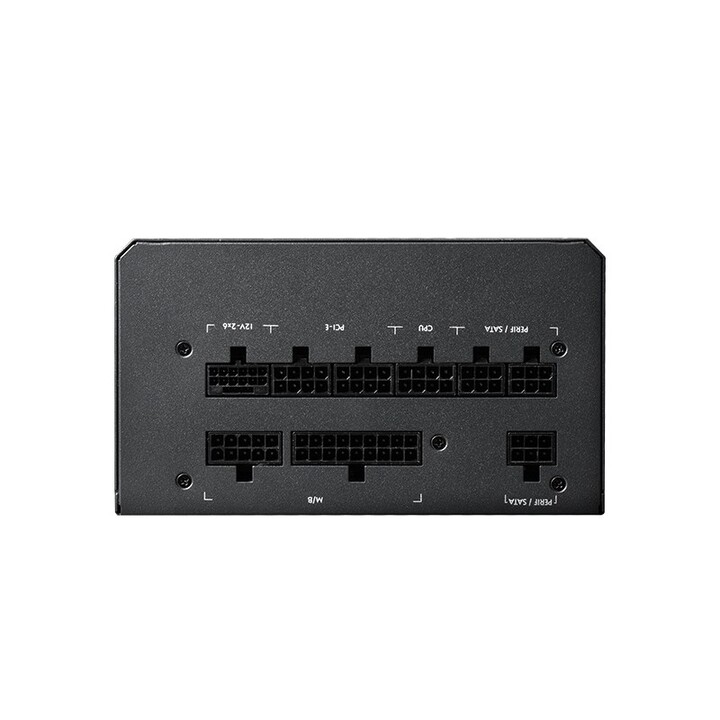

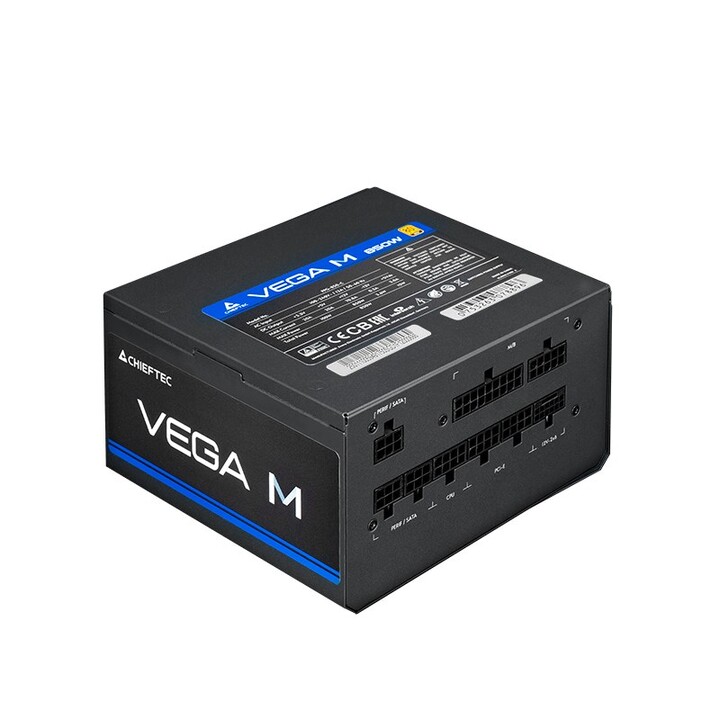

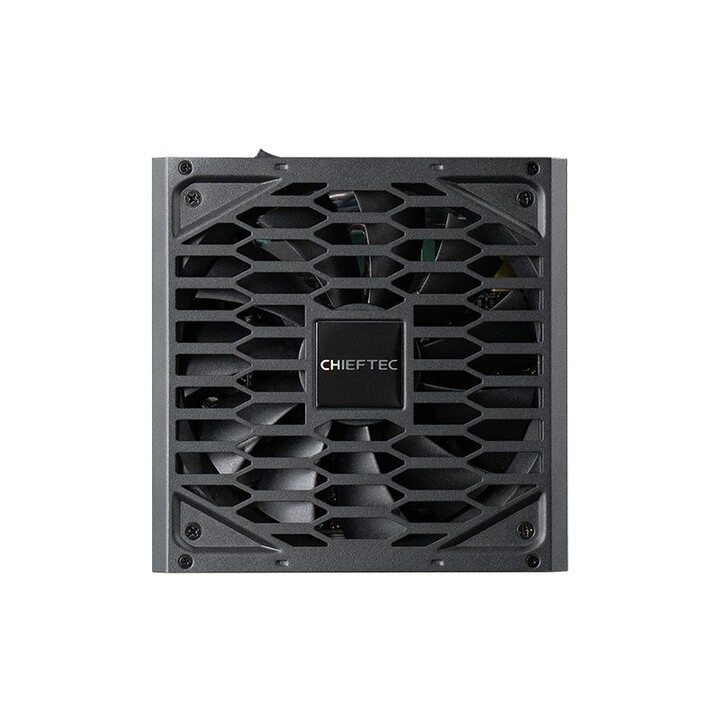

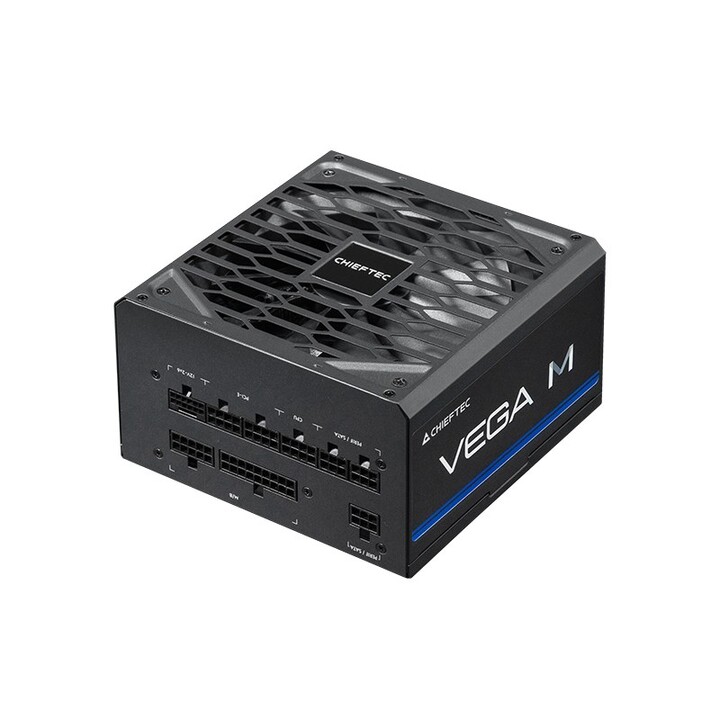

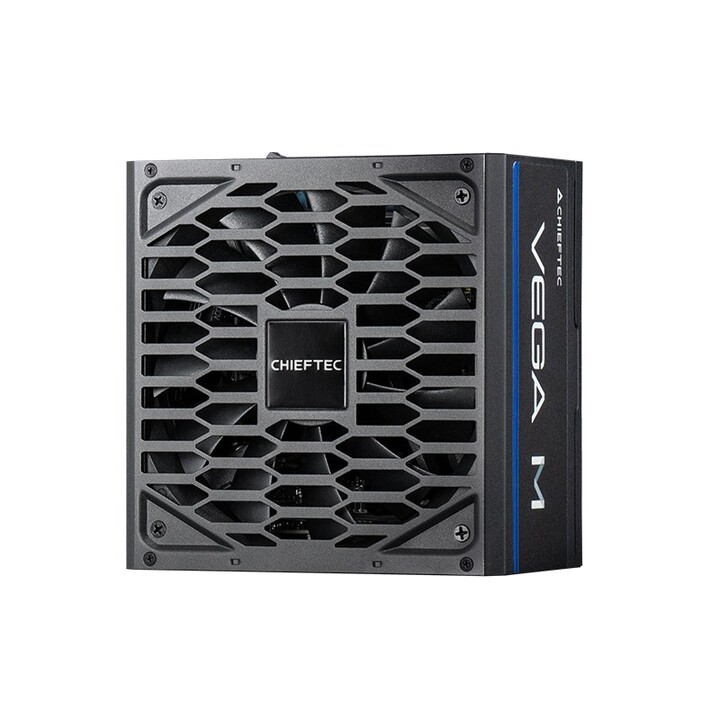

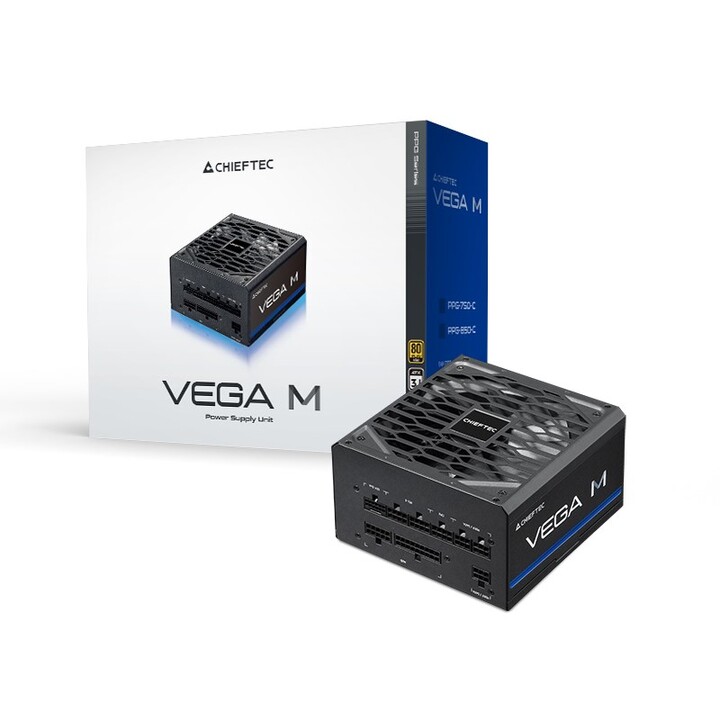

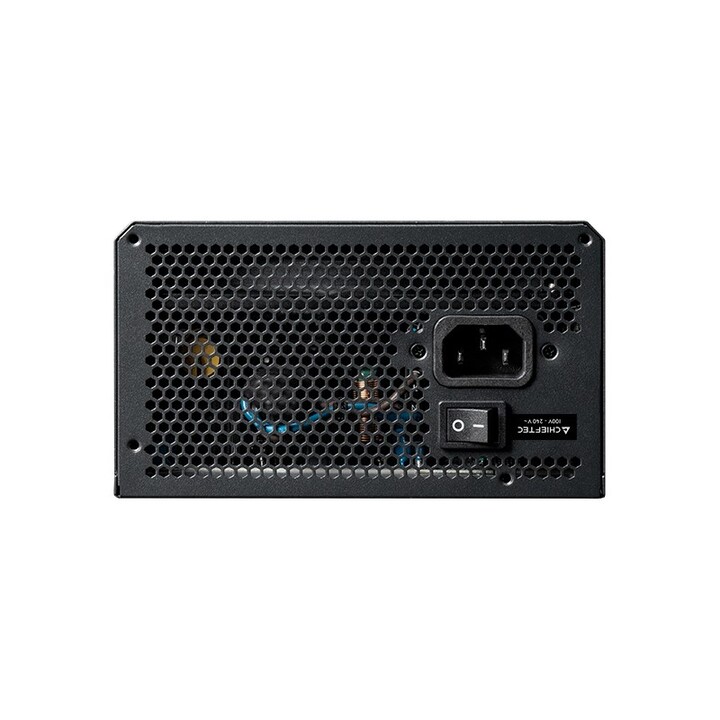

Chieftec Vega PPG-1000-C power supply unit 1000 W 24-pin ATX ATX White
Chieftec Vega PPG-1000-C power supply unit 1000 W 24-pin ATX ATX White
Chieftec Vega PPG-1000-C power supply unit 1000 W 24-pin ATX ATX White
Chieftec Vega PPG-1000-C power supply unit 1000 W 24-pin ATX ATX White
Chieftec Vega PPG-1000-C power supply unit 1000 W 24-pin ATX ATX White
Chieftec Vega PPG-1000-C power supply unit 1000 W 24-pin ATX ATX White
Chieftec Vega PPG-1000-C power supply unit 1000 W 24-pin ATX ATX White
Chieftec Vega PPG-1000-C power supply unit 1000 W 24-pin ATX ATX White

Chieftec Vega PPG-1000-C power supply unit 1000 W 24-pin ATX ATX White

Chieftec
Reference: PPG-1000-C
EAN: 0753263079091
Condition: New
€99.65
VAT included
Without tax: €82.35
  • 1000W power output for high-performance systems
  • 24-pin ATX connector, compatible with standard ATX cases
  • 80 PLUS Gold certified for efficiency

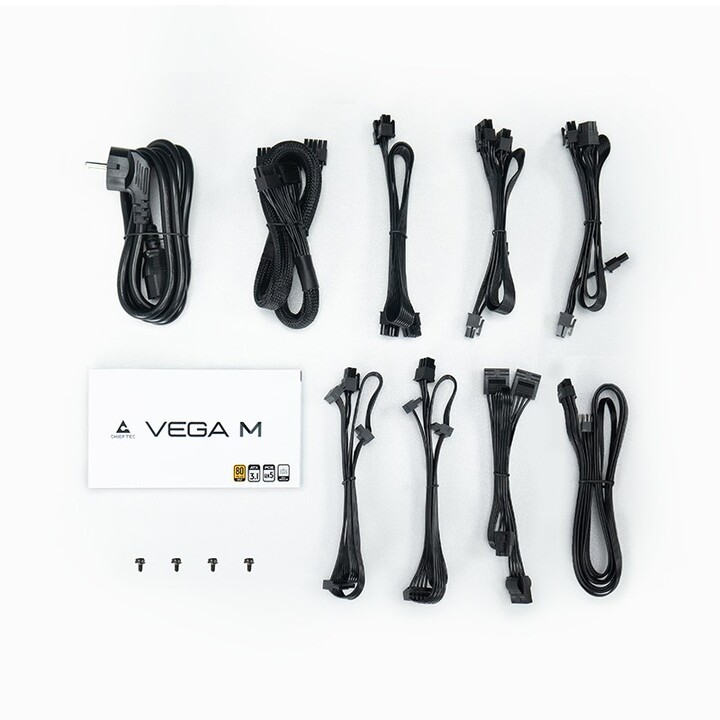

  • Fully modular cable design for clean builds
  • White color finish
Share


Buy it now and receive it between Fri 2 and Tue 6 with GLS / UPS / DHL €5.99

Up to 3 years warranty 100% secure payment 14 days return

Regulatory approvals
Certification
80PLUS Gold
Energy control
Combined power (3.3 V)
100 W
Power protection functions
Overvoltage, Short circuit, Overcurrent, Overload, Overvoltage and input current
Maximum output current (+5Vsb)
3 A
Combined power (+12 V)
1000 W
Maximum output current (+3.3V)
20 A
AC input frequency
50/60 Hz
Input current
12 A
Total power
1000 W
Combined power (+5 V)
100 W
Combined power (-12V)
3.6 W
Maximum output current (+5V)
20 A
AC input voltage
100 - 240 V
Maximum output current (-12V)
0.3 A
Combined power (+5 VSB)
15 W
Maximum output current (+12V)
83.33 A
Ports and Interfaces
CPU power cable length
65 cm
SATA power cable length
400, 150
PCI Express power cable length
60 cm
EPS power connector (8-pin)
Yeah
PCI Express Connector
Yeah
PCI Express power connector cable length (12+4 pin)
600 mm
EPS power connector (4+4 pins)
Yeah
Number of EPS connectors
2
Motherboard power supply
24-pin ATX
PCI Express power connectors (12+4 pin)
1
PCI Express power connectors (6 + 2 pin)
4
Motherboard power cable length
60 cm
Number of SATA power connectors
6
ATX power connector (24 pins)
Yeah
Wiring type
Fully modular
CPU power connector (4 + 4 pins)
Yeah
Peripheral power cable length (Molex)
400 mm, 150
Peripheral (Molex) power connectors (4 pin)
3
Weight and dimensions
Height
85 mm
Depth
150 mm
Broad
150 mm
Performance
Use with
PC
80 PLUS Certification
80 PLUS Gold
Power supply unit (PSU) form factor
ATX
ATX version
3.1
Bearing technology
FDB
Design
Product color
White
Fan diameter
13.5 cm
Cooling type
Asset
Lightning
