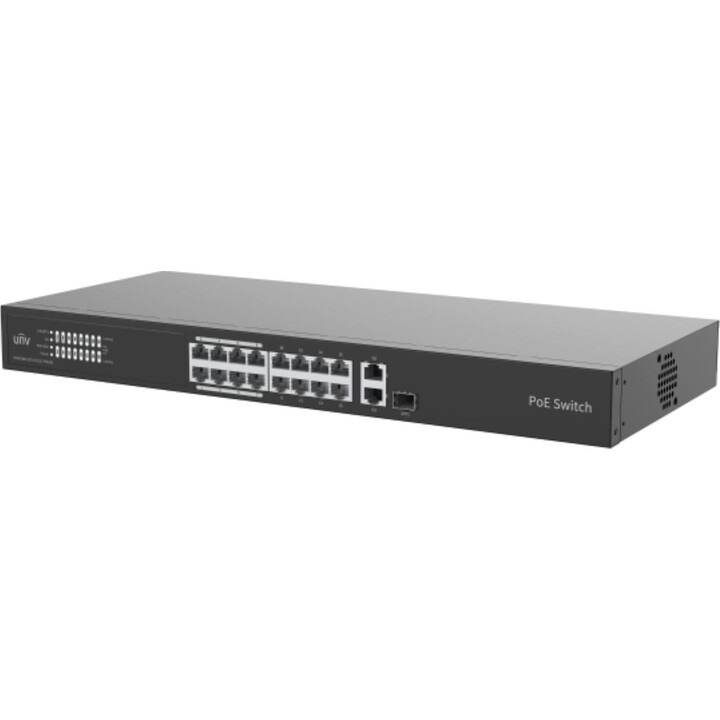

Uniview 16-Port PoE Switch
- 16 x 10/100Mbps PoE+ ports (802.3af/at)
- 1 x 10/100/1000Mbps RJ45 uplink
- 1 x 1000Mbps SFP uplink
- 250W total PoE power budget
- Fanless, metal housing for silent operation
Uniview 16-Port PoE Switch
The Uniview NSW3000-16T1GT1GC-POE-IN is a managed 16-port PoE+ switch designed for small to medium surveillance and network deployments. It provides 16 Fast Ethernet PoE ports with a total power budget of 250W, supporting IEEE 802.3af/at standards to power IP cameras, VoIP phones, and wireless access points. Two Gigabit uplink ports (one RJ45 and one SFP) ensure high-speed backbone connectivity.
With its fanless design and metal casing, the switch operates silently and reliably in office or indoor environments. It features web-based management for VLAN, QoS, and port configuration, making it easy to optimize network traffic. The switch also supports PoE watchdog and port isolation for enhanced security and stability.
| Ports | 16 x 10/100Mbps PoE+ (RJ45), 1 x 10/100/1000Mbps RJ45, 1 x 1000Mbps SFP |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Budget | 250W |
| Switching Capacity | 8.8 Gbps |
| Forwarding Rate | 6.55 Mpps |
| MAC Address Table | 8K |
| Management | Web GUI, SNMP, VLAN, QoS, Port Mirroring |
| Power Supply | 100-240V AC, 50/60Hz |
| Dimensions (W x D x H) | 440 x 200 x 44 mm |
| Operating Temperature | 0°C to 50°C |
| Cooling | Fanless |
| Brand | Uniview |
|---|---|
| Country | China |
| Address of origin | No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, Zhejiang Province |
| EU responsible person | Uniview Technologies Co.,Ltd. |
| Address | Calle Pedro Duque,1 Módulo 6B 28814 Daganzo de Arriba - Madrid |
| [email protected] | |
| Phone | +34 912844705 |
