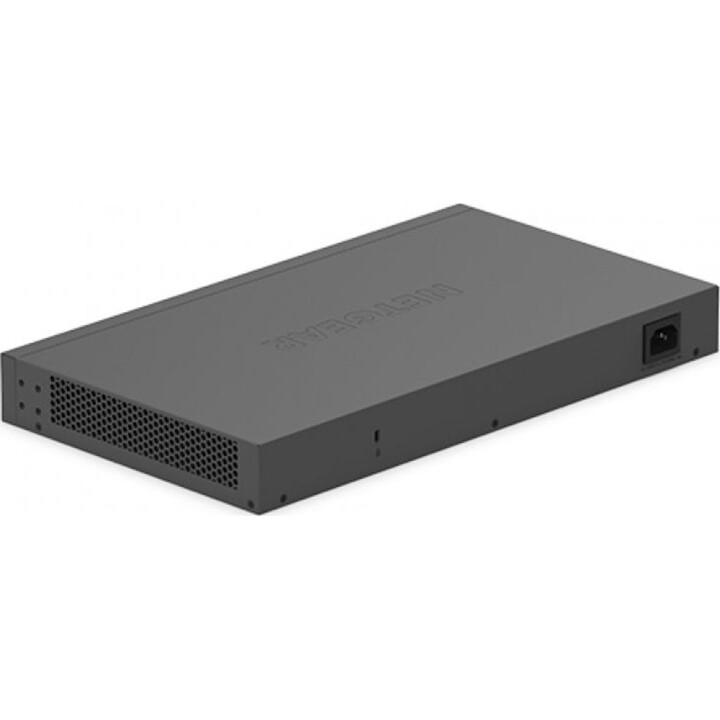

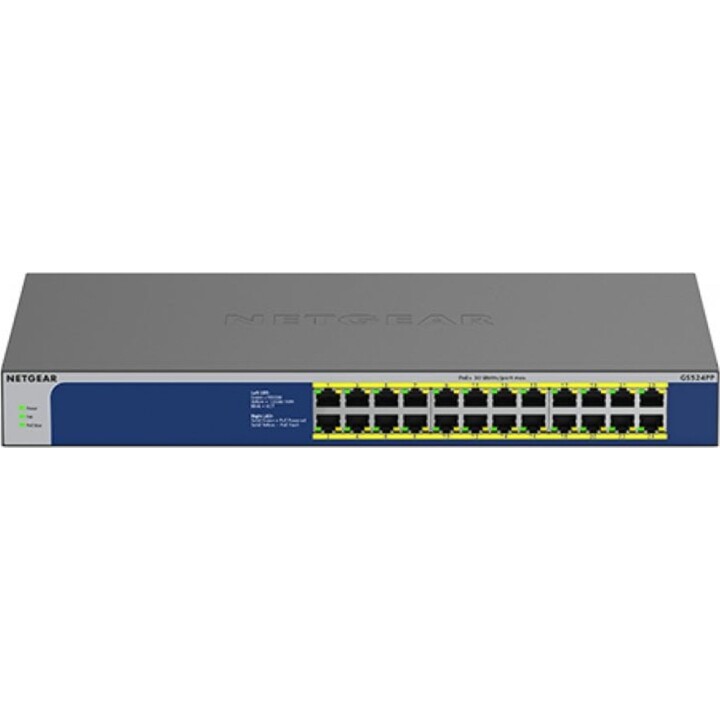

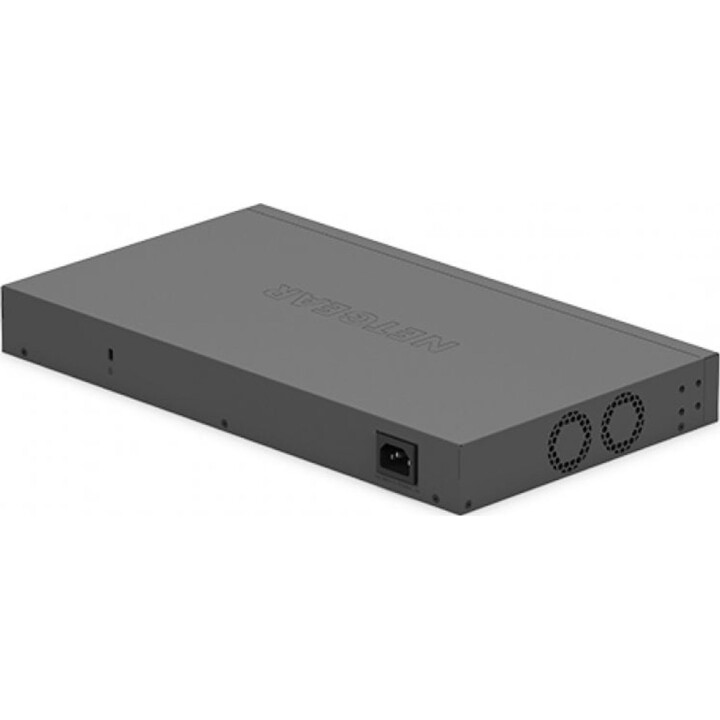

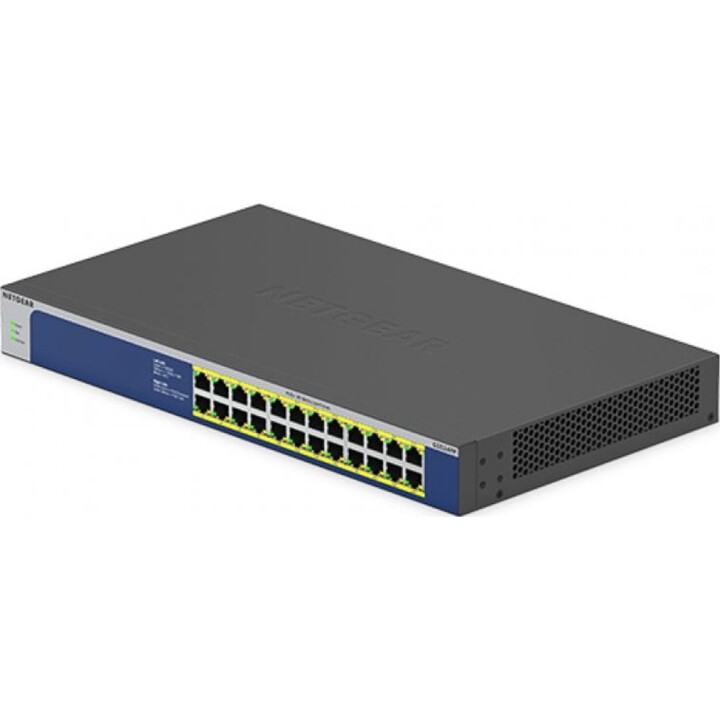

Netgear GS524PP 24-Port Gigabit PoE Rackmount Switch

About the product

The NETGEAR Gigabit unmanaged switch series helps your business cost-effectively expand its network to Gigabit speeds and a greater number of ports.

The GS524PP joins the series and offers 24 PoE+ ports to power high-power PoE devices. With a total PoE power budget of 300W, deploy denser PoE+ devices on a songle switch instead of multiple ones.

The GS524PP is energy-efficient, built to last, and rigorously tested to deliver the reliability your business needs. Jumbo frame support and 802.1p traffic prioritization enable easy integration with more sophisticated networks.

Characteristics

• PLUG AND PLAY : Simple installation, no additional software or configuration processes required.


• POWER OVER ETHERNET : 24 PoE+ ports with a total budget of 300W.


• DURABLE METAL BOX : Small, sturdy desktop metal box with quiet operation.


• SIMPLE MONITORING : LED per port for port activity and speed.


• GIGABIT ETHERNET : 24 auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with non-blocking switching up to 48 GB.


• Automatic PoE Balancing : Exclusive PoE technology automatically balances PoE power based on device needs, regardless of the detected PoE class. The switches provide the power the device needs, at the most granular level.


Specs

• Management features
  • Switch Type: Unmanaged

• Ports and Interfaces
  • Number of basic RJ-45 Ethernet switching ports: 24
  • Basic switching type RJ-45 Ethernet ports: Gigabit Ethernet (10/100/1000)

• Connection
  • Networking standards: IEEE 802.1p, IEEE 802.3at, IEEE 802.3az
  • 10G support: No
  • Auto MDI / MDI-X: Yes

• Design
  • Rack mount: Yes
  • Product color: Gray
  • Case material: Metal
  • LED Indicators: Activity, Speed

• Energy control
  • Power supply included: Yes

• Power over Ethernet (PoE)
  • Power over Ethernet (PoE): Yes
  • Compatible with PoE (Power over Ethernet) type: PoE+
  • Power over Ethernet Plus (PoE+) Number of ports: 24
  • Power per Power over Ethernet (PoE) port: 30 W
  • Power over Ethernet (PoE) Budget: 300 W

• Weight and dimensions
  • Width: 390 mm
  • Depth: 220 mm
  • Height: 43 mm
  • Weight: 2.89 kg
