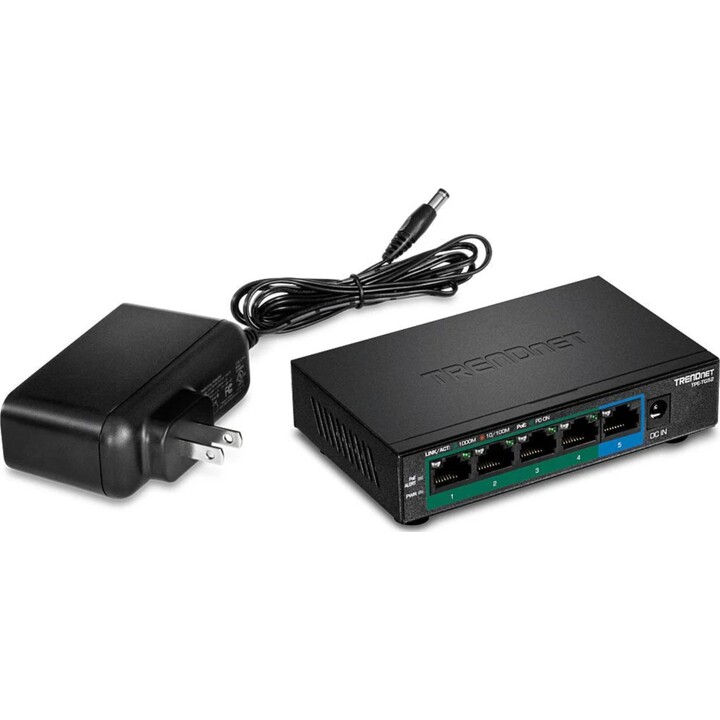

TRENDnet TPE-TG52 5-Port/ RJ-45 Gigabit 10/100/1000 PoE Switch

5 Port Gigabit PoE+ Switch

• 4 Gigabit PoE+ ports
• 1 gigabit port
• 32W PoE power budget
• 10 Gbps switching capacity
• Support IEEE 802.1p QoS and DSCP pass-through
• Compact fanless design
• Metal housing for wall mounting

TRENDnets 5-Port Gigabit PoE+ Switch, model TPE-TG52, reduces equipment and installation costs by providing data and power over existing Ethernet cables. With PoE technology, users only need one set of cables to supply data and power. This compact network switch features four gigabit PoE+ ports and one gigabit port, with a total available PoE power of 32W. The TPE-TG52 PoE+ switch allows you to network PoE devices such as wireless access point s, IP cameras, VoIP phones, IP video encoders, and access controls, among others. It features a fanless design, and has a convenient wall mount option.

PoE+

Total available PoE power of 32W powers up to four Power over Ethernet devices.

Gigabit ports

Five Gigabit ports offer 10 Gbps switching capacity to support edge network installations.

compact design

With its compact metal case and lightweight design, this switch is well suited for desktop installations. Its fanless design is perfect for quiet environments that require quiet operation.

switching capacity

10 Gbps switching capacity

Jumbo-Frame

Send larger packets or Jumbo Frames (up to 9 KB) to improve performance

no fan

Fanless design reduces power consumption and eliminates operating noise

LED indicators

LED indicators to show port status

SPECS

• standards
• IEEE802.3
• IEEE802.3u
• IEEE 802.3ab
• IEEE802.3x
• IEEE802.3p
• IEEE 802.3af
• IEEE 802.3at
• device interface
• 4 Gigabit PoE+ ports
• One gigabit port
• LED indicators
• Data transfer rate
• Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
• Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
• Gigabit: 2000Mbps (full duplex)
• Performance
• Switching fabric: 10 Gbps
• RAM buffer: 128KB
• MAC address table: 2K entries
• Jumbo Frames: 9KB
• Forwarding rate: 7.44 Mpps (64-byte packet size)
• Special features
• VLAN port isolation
• Class of Service (CoS) 802.1p
• mountable wall
• Feeding
• Input: 100 – 240V AC, 50/60Hz, 1.2A
• Output: 54V DC 0.7A external power adapter
• Maximum consumption: 36W
• PoE
• Available PoE power: 32W
• PoE Mode A: Pins 1, 2 for power and pins 3, 6 for power
• MTBF
• 3,516,000 hours
• Admissible temperature
• 0° – 40°C (32° – 104°F)
• Admitted humidity
• max. 90% non-condensing
• Dimensions :
• 121 x 75 x 26mm (4.76 x 2.95 x 1 inches)
• Weight
• 246g (8.68oz)
• Certifications
• EC
• FCC
• lvd
• PACKAGE CONTENTS
• TPE-TG52
• Quick installation guide
• Power adapter (54V DC, 0.7A)
