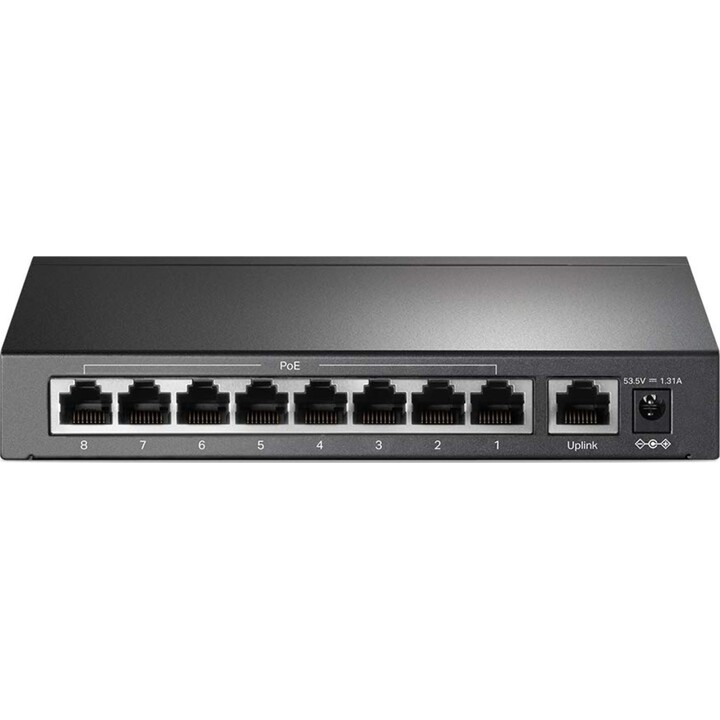

TP-LINK TL-SF1009P Unmanaged switch Fast Ethernet (10/100) Power over Ethernet (PoE) Black

Description

TP-Link TL-SF1009P Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

TP-Link TL-SF1009P, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE), Wall mount

Key product points

Unmanaged

Number of basic RJ-45 Ethernet switching ports: 9

Cat3, Cat4, Cat5, Cat5e 10BASE-T, 100BASE-TX

MAC Address Table: 2000 entries Switching Capacity: 1.6 Gbit/s

DC/PoE Power over Ethernet (PoE)

Management Features

Switch Type: Non-Managed

Ports and Interfaces

Number of basic RJ-45 Ethernet switching ports: 9

Basic RJ-45 Ethernet switching ports: Fast Ethernet (10/100)

Number of Fast Ethernet (copper) ports: 9

Electrical connector: DC input socket

Connection

Network Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

10G Support: No

Copper Ethernet cabling technology: 10BASE-T, 100BASE-TX

Supported cable types: Cat3, Cat4, Cat5, Cat5e

Full duplex: Yes

Half-duplex transmission: Yes

Flow control support: Yes

Auto MDI / MDI-X: Si

Self-negotiation: Yes

Supports MAC address auto-learning: Yes

Supports MAC address auto-aging: Yes

Data transmission

Switching capacity: 1.6 Gbit/s

Forwarding rate: 1.3392 Mpps

MAC Address Table: 2000 entries

Save and Forward: Yes

Design

Rack Mount: No

Stackable: No

Product color: Black

Housing material: Metal

LED Indicators: Activity, Link, PoE, Power

Wall mount: Yes

Performance

Fanless: Yes

Power control

Power source: DC/PoE

Power supply included: No

AC input voltage: 220 V

AC input frequency: 50 Hz

DC input voltage: 53.5 V

Input current: 1.31 A

Power consumption (max): 77.08 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes

Power over Ethernet Plus (PoE+) Number of ports: 8

Power per Power over Ethernet (PoE) port: 30 W

Power over Ethernet (PoE) Budget: 65 W

Environmental conditions

Operating temperature range: 0 - 40 °C

Storage temperature range: -40 - 70 °C

Relative humidity range for operation: 10 - 90%

Relative humidity range during storage: 5 - 90%

Heat dissipation: 262.84 BTU/h

Weight and dimensions

Ancho: 171 mm

Depth: 98 mm

Height: 27 mm

Package contents

User Manual: Yes

Packaging

AC adapter included: Yes

Packaging Type: Box

Package width: 223 mm

Package depth: 280 mm

Package height: 68 mm

Package weight: 980 g

Sustainability

Sustainability compliance: Yes

Regulatory approvals

Certificates of Conformity: US Federal Communications Commission (FCC), CE, RoHS

Certification: FCC, CE, RoHS
