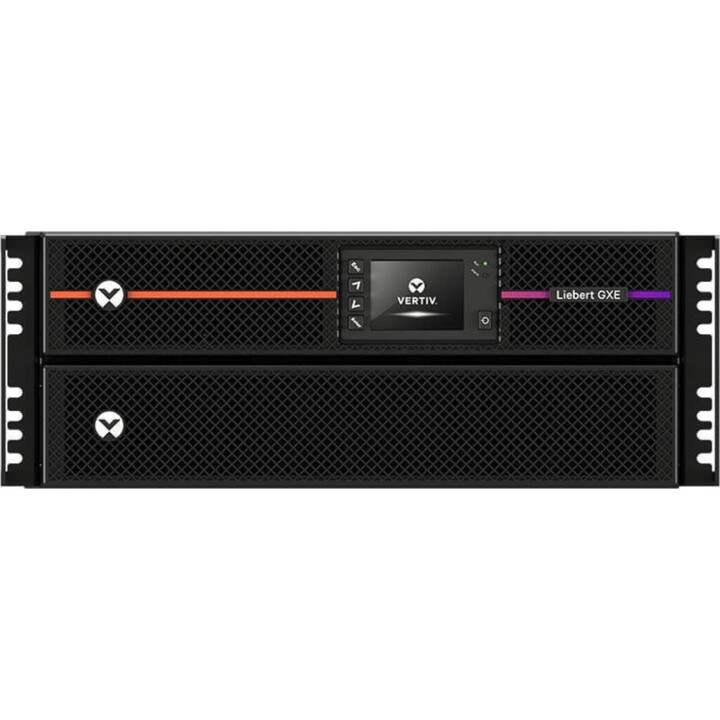

Vertiv Liebert GXE3-6000IRT4UXL UPS.

Description

Vertiv Liebert GXE3-6000IRT4UXL Uninterruptible Power Supply (UPS) Double-conversion (online) 6 kVA 6000 W

Vertiv Liebert GXE3-6000IRT4UXL, Double-conversion (online), 6 kVA, 6000 W, Pure sine wave, 178 V, 288 V

Key product points

Double conversion (online)

6 kVA 6000 W

Waveform: Pure sine wave

Sealed Lead Acid (VRLA)

Black Tower

Characteristics

UPS Topology: Double Conversion (Online)

Output power capacity (VA): 6 kVA

Output power: 6000 W

Waveform: Pure sine wave

Operating input voltage (min): 178 V

Operating input voltage (max): 288 V

Input frequency: 40/70 Hz

Output operating voltage (min): 220 V

Output operating voltage (max): 230 V

Energy surge rate: 600 J

Efficiency (online mode): 94%

Efficiency (ECO mode): 98%

Emergency shutdown: Yes

EMI/RFI Noise Filter: Yes

EMI/RFI, noise filter: 55 dB

Power protection functions: Overload

Audible alarm(s): Yes

Ports and Interfaces

USB port: Yes

Battery

Battery technology: Sealed Lead Acid (VRLA)

Battery life (max): 5 year(s)

Design

Form Factor: Tower

Rack capacity: 4U

Product color: Black

Display type: LCD

Environmental conditions

Operating temperature range: 0 - 40°C

Storage temperature range: -20 - 70 °C

Relative humidity range for operation: 5 - 95%

Regulatory approvals

Certificates of conformity: REACH, RoHS, WEEE

Certification: CE, UKCA, Morocco, RCM, CB report, EAC

Package contents

Mounting shelf: Yes

Cables included: USB cable

Quick Installation Guide: Yes

Weight and dimensions

Width: 430 mm

Depth: 700 mm

Height: 217 mm

Weight: 80 kg

Packaging

Package width: 600 mm

Package depth: 800 mm

Package height: 530 mm

Package weight: 102 kg
