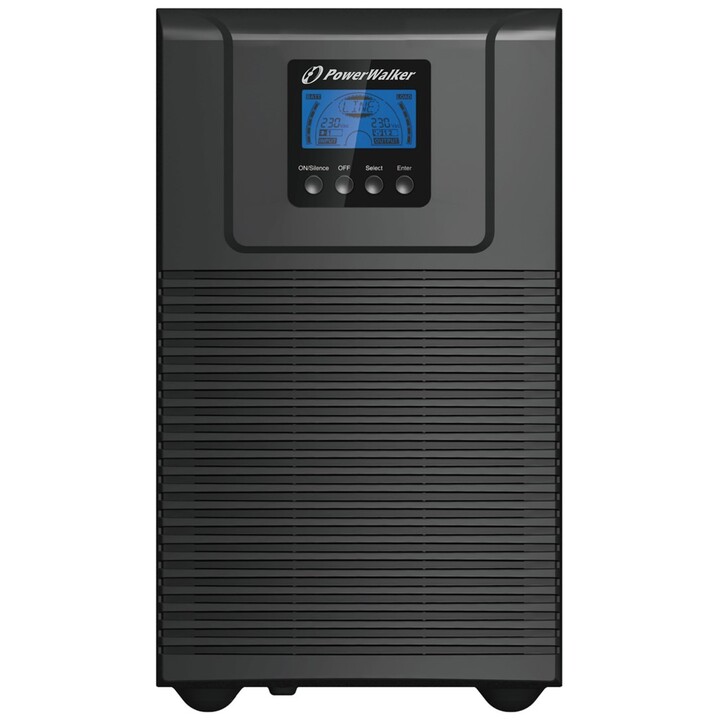

PowerWalker VFI 3000 TGB Double conversion (online) 3 kVA 2700 W 5 AC outlets
Reference:
VFI 3000 TGB
EAN:
4260074979770
Condition:
New
Price:
€533.93
VAT included
Without tax:
€441.26
The PowerWalker VFI 3000 TGB is a high-performance double conversion (online) UPS delivering 3 kVA / 2700 W output power with 5 AC outlets. Featuring RS-232 and USB ports, sine waveform output, and a 90% efficiency rate, it ensures stable power supply with low noise (50dB). Compact and robust, it includes emergency stop, LCD display, and supports up to 6 batteries for backup times up to 11.7 minutes at half load.
Ports and Interfaces
Port: RS-232
1
USB Port
Yes
Type of AC output
Coupler C13, coupler C19
Emergency stop device
Yes
Connector
Coupler C20
Number of AC outlets
5 AC outlets
Weight and Dimensions
Height
328mm
Width
190 mm
Package width
324 mm
Depth
399 mm
Weight
22.2 kg
Package height
464 mm
Features
Efficiency
90%
Noise level
50dB
Operating output voltage (min)
220 V
Emergency stop
Yes
Main factor
3:1
Output power
2700W
Total harmonic distortion of output voltage
5%
Waveform
Sine
Operating input voltage (max)
300 V
Total harmonic distortion of input current (THD)
5%
Output power capacity (VA)
3kVA
Input frequency
40 - 70Hz
Operating output voltage (max)
240 V
Operating input voltage (min)
176V
Power factor
0.9
Package
Included cables
Input power cable, USB cable
User manual
Yes
Battery
Battery capacity
9 Ah
Number of supported batteries
6
Battery charging time
4 hours
Battery voltage
12V
Typical backup time at half load
11.7 minutes
Typical backup time at full load
3.9 minutes
Environmental Conditions
Operating temperature range
0 - 40°C
Operating relative humidity range
0 - 95%
Design
Product color
Black
Display type
LCD screen
-
Brand
-
ReferenceVFI 3000 TGB
-
In stock2 Items
-
ConditionNew
-
EAN134260074979770
-
MPNVFI 3000 TGB
-
Power2700 W
-
Power rangeOver 2,000 W
