About the product

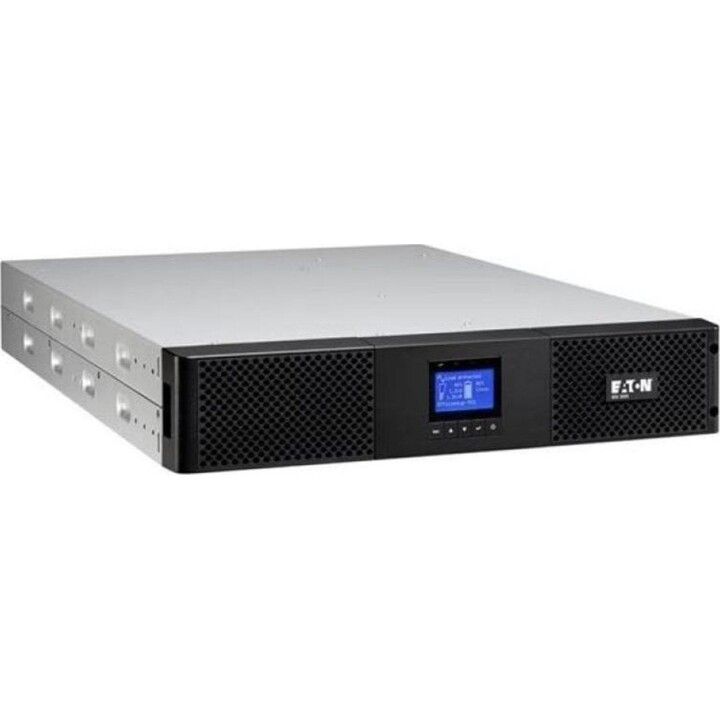

TheEaton 9PX 3000iis an Uninterruptible Power Supply (UPSideal for protecting critical electronic equipment in data centers, server rooms, and computer networks. It offers 3 kVA (3000 VA) of power and a 2700-watt output to power your devices. It provides the highest level of electrical protection. It works by constantly filtering and converting incoming alternating current (AC) to clean, regulated direct current (DC), and then converting it back to AC to power your equipment.
Eaton 9PX 3000i Specifications
-
Characteristics
- UPS Topology: Double conversion (online)
- Output power capacity (VA): 3 kVA
- Output power: 2700 W
- Minimum operating input voltage: 200 V
- Operating input voltage (max): 276 V
- Input frequency: 40 - 70 Hz
- Output frequency: 50/60 Hz
- Maximum current: 16 A
- Noise level: 45 dB
-
Ports and Interfaces
- AC output type: C13 coupler, C19 coupler
- Connector: C20 coupler
- Number of AC outlets: 9 AC outlets
- USB port: Yes
- Serial interface: Yes
- Interface serial type: RS-232
- Port - RS-232: 1
-
Design
- Form factor: Rack mount or Frame mount
- Rack capacity: 2U
- Product color: Black
- Display type: LCD
- Safety: IEC/EN 62040-1, UL 1778, CSA 22.2
- Certification: IEC/EN 62040 -2, FCC B, CISPR22 B, CE /CB (TUV) / cULus / EAC / RCM
-
Environmental conditions
- Operating temperature range: 0 - 40°C
-
Weight and dimensions
- Width: 438 mm
- Depth: 608 mm
- Height: 86.5 mm
- Weight: 26.5 kg
