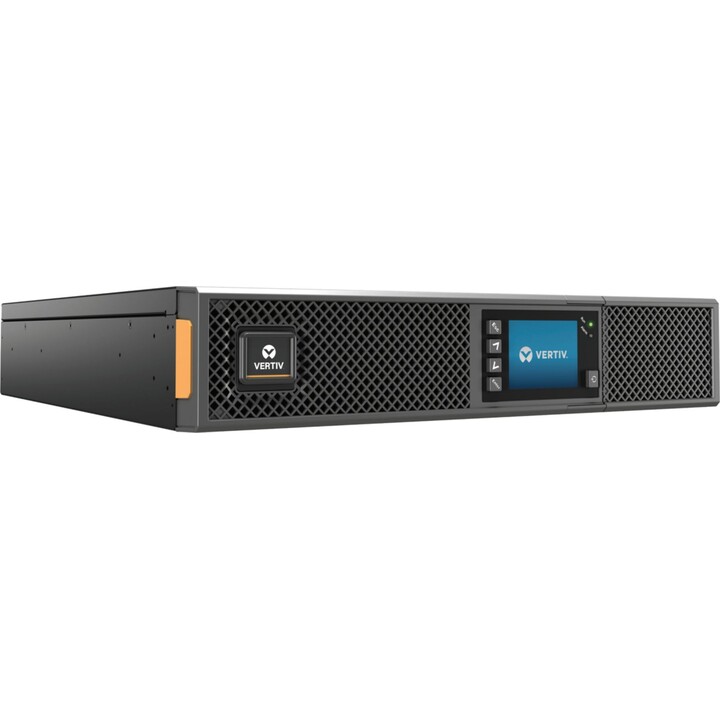

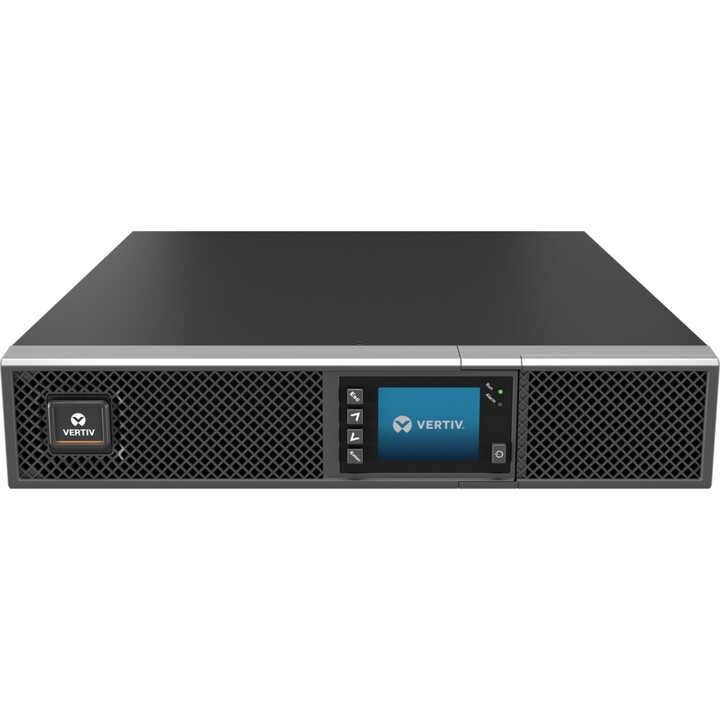

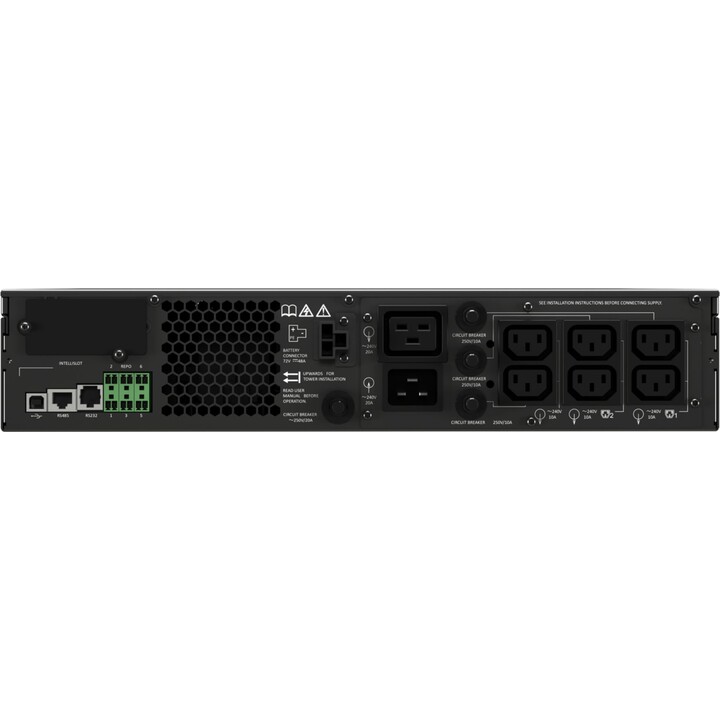

Vertiv liebert gxt5 1ph ups, 3kva

Liebert GXT5 (GXT5-3000IRT2UXL) is a 3000VA/3000W 230V online double conversion UPS in a 2U tower/rack mount design with unity power factor (1.0) and offers efficiency up to 94% at full load. This UPS is ENERGY STAR 2.0 certified with higher efficiency and is equipped with 7 output receptacles, 6 of those are individual programmable output receptacles as well as LCD multi-language color display and gravity sensing.

Top-level on-line double conversion UPS for mission-critical application

Unity output power factor

LCD multi-language color display (gravity sensing)

On-line (VFI) mode efficiency up to 95.9% at full load

Active ECO mode efficiency up to 99%

Energy Star 2.0 certified

Controllable and programmable output sockets

Integrated solution with batteries and electronics

External battery cabinets auto-detection

Operates at full power up to 40C (up to 50C with derating)

Intelligent Communication ready

Safety Agency Approved Category B IEC 61000-4-5 Surges/Lightning protection capability

Model Number GXT5-3000IRT2UXL

Capacity VA 3000W/3000VA

Topology Double Conversion Online

Sine Wave Pure Sinewave

Form Factor Rack / Tower

Active Cooling Yes

SNMP Compatible Yes

Hard-Line No

Hot Swappable Batteries Yes

Australian Outlets - Surge Protection Single Phase

Expandable Batteries Yes

IEC 13 Count 6

Australian Outlets - UPS 0

IEC 19 Count 1

Voltage Range 200-240Vac

Voltage 230Vac

Frequency Range 40/70Hz (Auto sensing)

Output Voltage 200-240Vac

Battery Type 12V 9AH (x6)

Phase Count Single Phase

Surge Protection THAT

Interface USB and RS232 as standard

Software Vertiv Power

LCD Alarm AC Mode, Battery Mode, Low Battery, Fault, Overload

Audible Alarm Batt. Mode, low battery, overload, fault, etc.

Operating Temperature Range 0-50 C

Noise Level Less than 46dB 1metre

Dimensions 540mm x 430mm x 85mm

Weight 28.2kg
