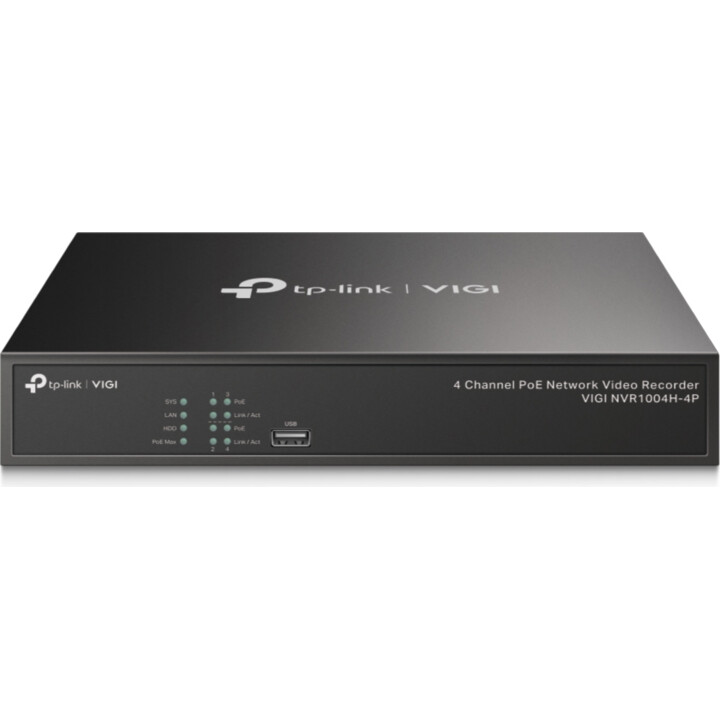

TP-LINK VIGI NVR1004H-4P Rejector
- 4 Channel PoE Network Video Recorder

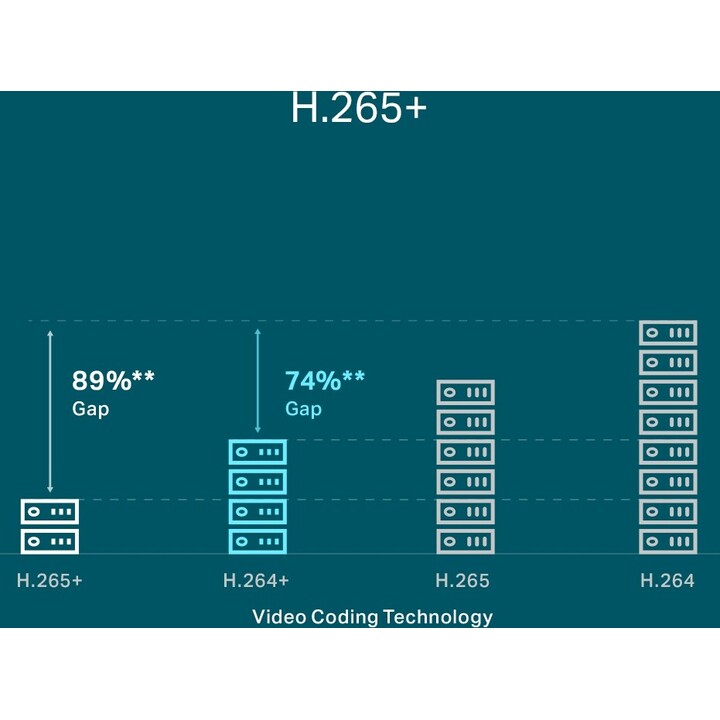

- Supports up to 4 IP cameras with H.265+/H.265/H.264+/H.264 compression

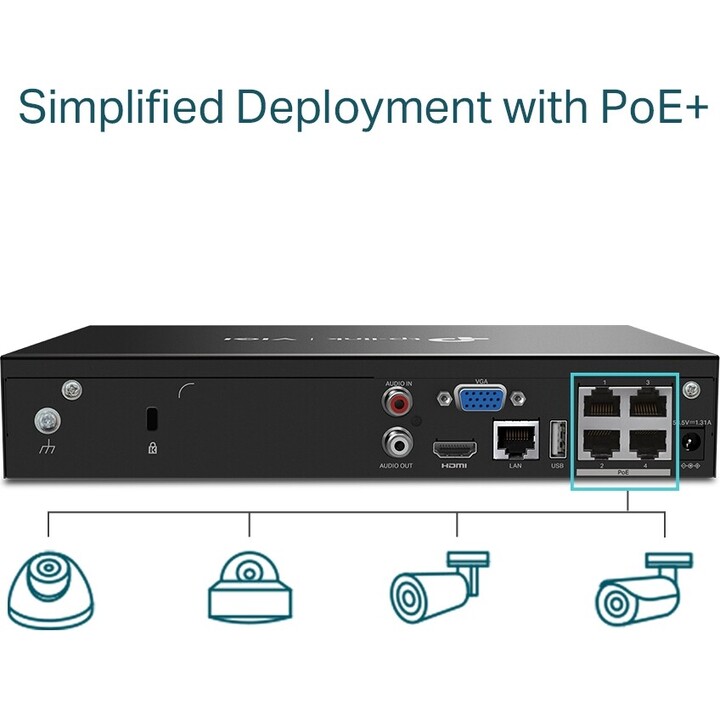

- Built-in 4-port PoE switch (IEEE 802.3af/at) for camera power and data
- 1 SATA interface for up to 10TB storage capacity
- HDMI and VGA output for local display up to 4K resolution
TP-LINK VIGI NVR1004H-4P Rejector

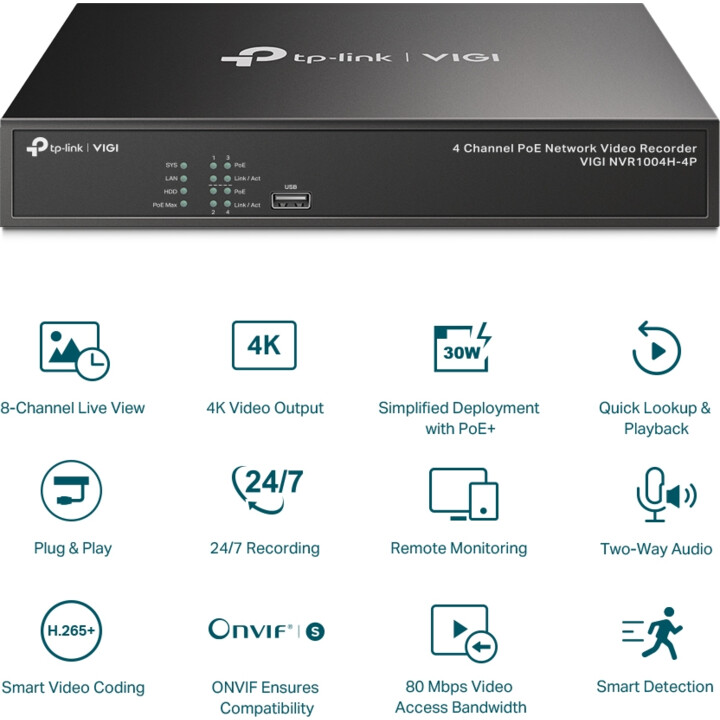

The TP-LINK VIGI NVR1004H-4P is a 4-channel network video recorder designed for small to medium-sized surveillance systems. It features a built-in 4-port PoE switch, simplifying installation by providing both power and data connectivity to compatible IP cameras. Supporting H.265+ compression, it reduces bandwidth and storage requirements without compromising video quality. The NVR can accommodate a single SATA hard drive up to 10TB, ensuring ample storage for extended recording periods.

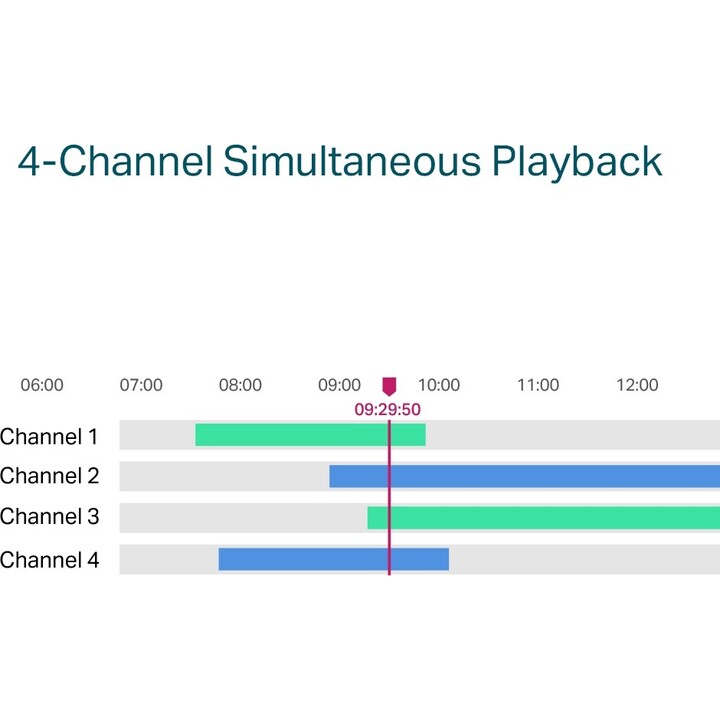

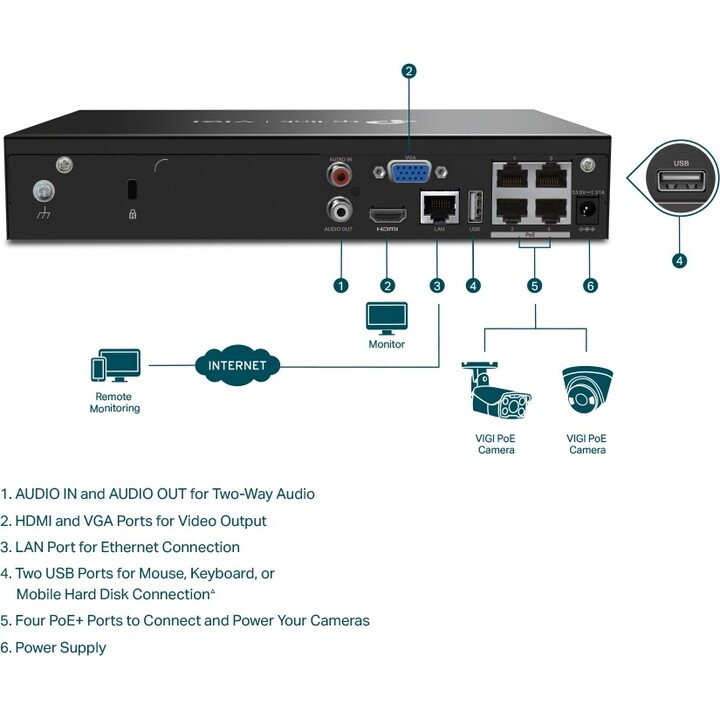

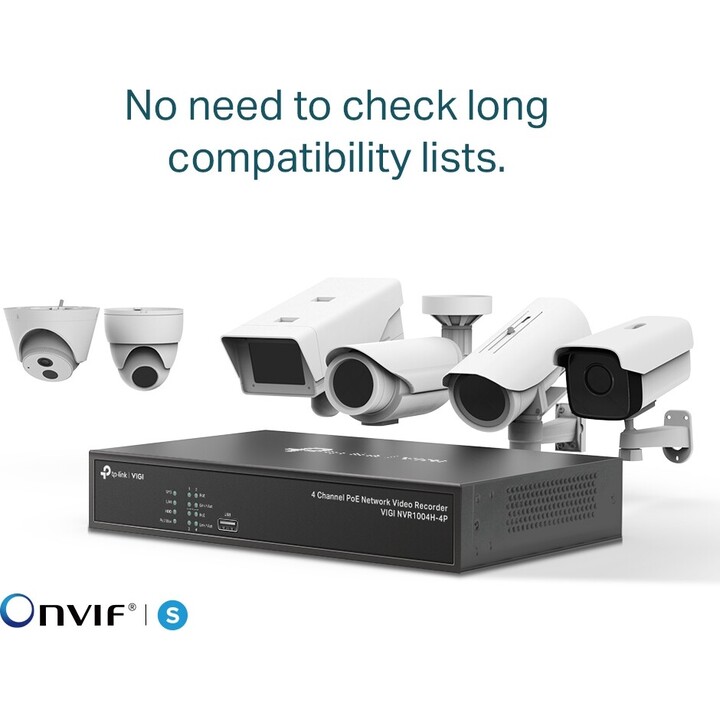

With HDMI and VGA outputs, the VIGI NVR1004H-4P allows local monitoring at resolutions up to 4K. It supports remote access via the TP-LINK VIGI app or web interface, enabling live view, playback, and configuration from anywhere. The device is compatible with a wide range of ONVIF conformant cameras, offering flexibility in camera selection. Advanced features include motion detection, continuous recording, and scheduled recording modes.
| Channels | 4 |
| PoE Ports | 4 (IEEE 802.3af/at) |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | Up to 8MP per channel |
| Storage | 1 SATA HDD up to 10TB |
| Video Output | HDMI (4K), VGA (1080p) |
| Network Interface | 1 RJ45 10/100/1000 Mbps |
| USB Ports | 2 USB 2.0 |
| ONVIF Support | Yes (Profile S, G, T) |
| Power Supply | 48V DC, 65W |
-
ColorBlack
