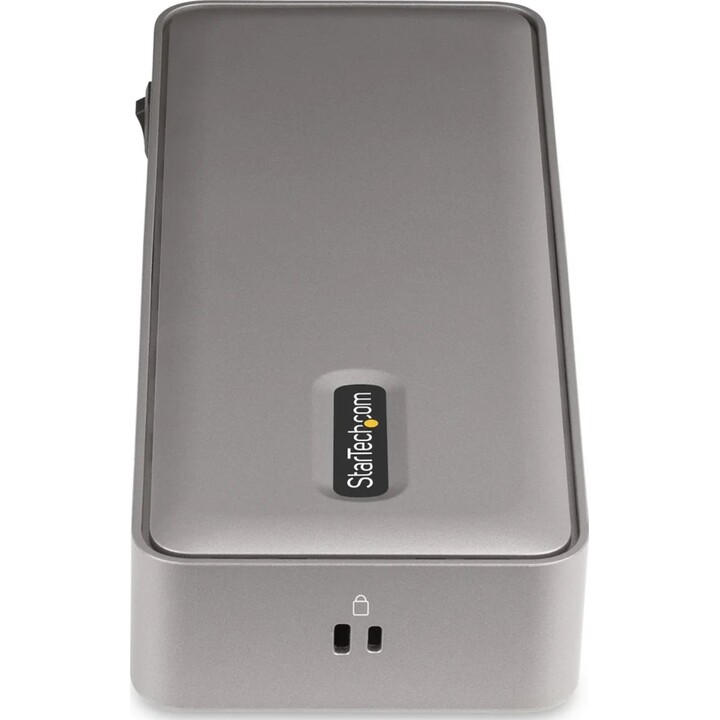

Startech USB-C KVM Docking Station for Laptop

Description

StarTech.com 129UE-USBC-KVM-DOCK KVM Switch Silver

Share a dual 4K 60Hz workstation between two laptops via a USB Type-C connection.

Dock and switch between two laptops to access your workstation peripherals, including two monitors, seamlessly switching between laptops with the touch of a button. Downloadable Hot-Key software (available for Windows and macOS) allows users to switch between computers using keyboard shortcuts.

DisplayLink Certified:

The Dock is DisplayLink certified for Plug and Display compatibility with Windows, ChromeOS, and macOS, enabling operation and switching between multiple computers with different operating systems. DisplayLink technology also supports dual extended displays on Apple MacBook M1/M2s, which are not natively capable of handling more than one external display. DisplayLink certification guarantees compatibility with resolutions up to 4K 60Hz on both external displays.

Charge Two Laptops Simultaneously:

The KVM Dock supports Power Delivery (PD) 3.0 and charges both connected laptops via USB-C. The dock delivers 90W of power to the active host computer and 45W to the second PC, ensuring both laptops can charge simultaneously.

Full-Function Docking Station:

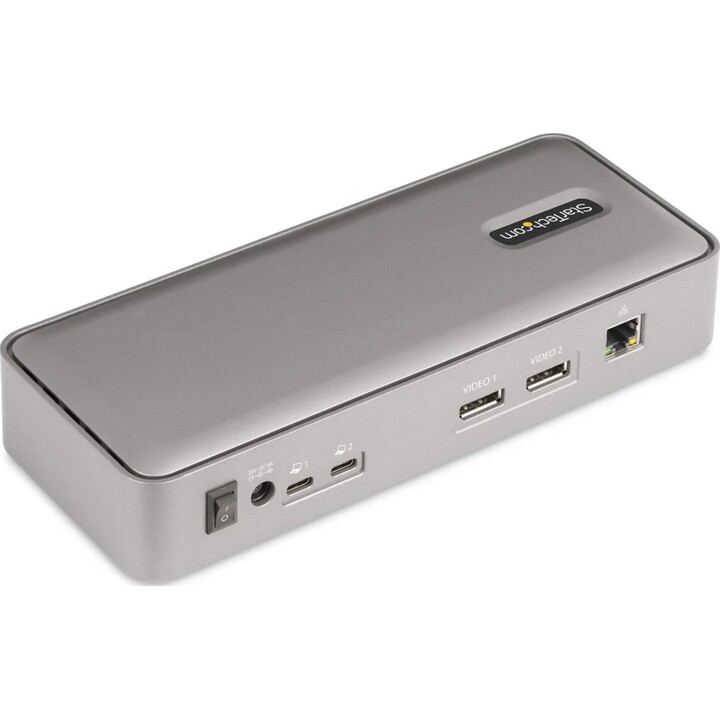

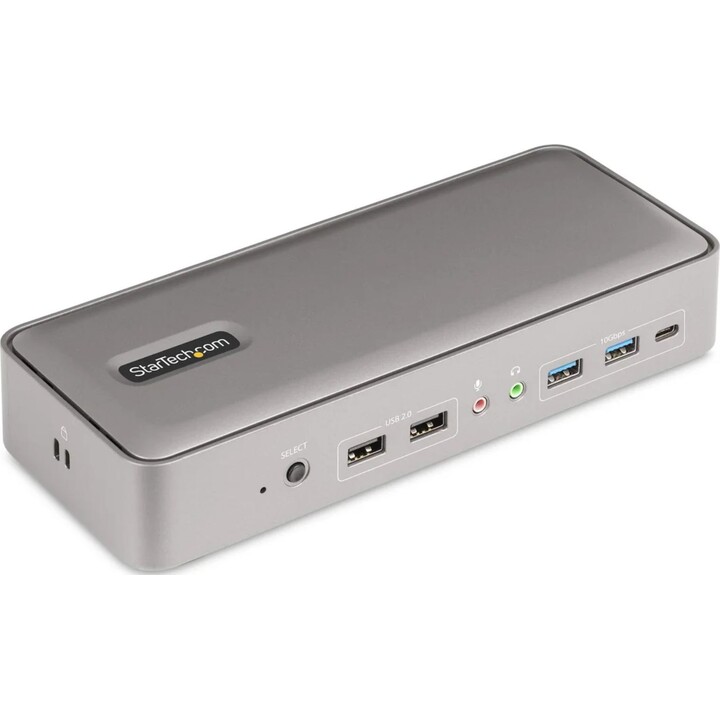

Connect two USB-C computers to this docking station to access a wide range of port connectivity, options, and features. The dock includes:

- 2 DisplayPort ports for dual-display output with support for resolutions up to 4K 60Hz.

- 2 USB-A (USB 2.0 480Mbps) HID ports for USB devices such as a keyboard and mouse.

- 2 USB-A and 1 USB-C (USB 3.2 Gen 2 at 10Gbps) ports for connecting high-speed USB peripherals such as SSD storage.

- 1 Gigabit Ethernet port with WoL (Wake-on-LAN) for a wired local area network (LAN) connection.

- 1 3.5mm 3-position TRRS jack for stereo audio output.

- One 3.5 mm, 2-position microphone jack for mono audio input.

- Two K-Slots (standard/nano) for securing the Dock with a cable lock (sold separately) for added security.

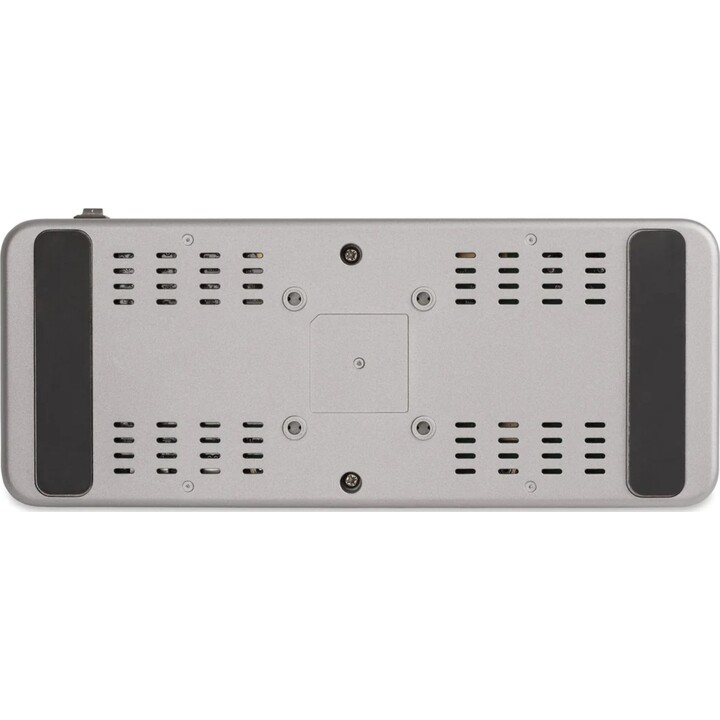

The Dock features a mounting pattern that allows it to be mounted when combined with StarTech.com mounting accessories (sold separately). Our mounting accessories allow you to mount it to the VESA pattern on the back of a monitor or any flat surface. The following mounts are compatible with this product:

- SSPMSUDWM - Surface Mount for Dock

- SSPMSVESA - VESA Mount for Dock

Improve productivity and device management with the StarTech.com Connectivity Tools App.

Developed to enhance performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of computing connectivity accessories. The software suite includes:

-
Advanced Windows Configuration Utility: Configure and save custom Windows settings.

-
MAC Address Transfer Utility: Enhance network security.

-
USB Event Monitoring Utility: Track and log connected USB devices.

-
Wi-Fi Auto-Switching Utility: Enable users to quickly access faster network speeds over a wired LAN.

For more information and to download the StarTech.com Connectivity Tools App, visit: www.StarTech.com/Connectivity-Tools

The StarTech.com Advantage

Ports and Interfaces

• Number of computers controlled: 2
• Keyboard port type: USB
• Mouse port type: USB
• Video port type: DisplayPort
• Number of DisplayPorts: 2
• DisplayPort version: 1.4
• Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 3
• Number of USB 3.2 Gen 2 (3.1 Gen 2) Type A ports: 2
• Audio connection: Yes
• Headphone outputs: 1
• Number of microphone inputs: 1
• DC input socket: Yes

Connection

• Ethernet: Yes
• Ethernet LAN (RJ-45) number of ports: 1
• Cabling technology: 10/100/1000Base-T(X)
• Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Performance

• HD Type: 4K Ultra HD
• Maximum resolution: 3840 x 2160 pixels
• IC: DisplayLink - DL6950, Genesys Logic - GL3590, Genesys Logic - GL9510, Parade - PS186, Realtek - RTL8211F

Design

• Product color: Silver
• Housing material: Plastic
• LED indicators: LAN, Power
• Safety cable slot: Yes

Exhibition

• Built-in screen: No

Energy control

• Input voltage: 100 - 240 V
• Input current: 2.4 A
• Output voltage: 20 V
• Output current: 9 A
• Energy consumption: 180 W
• External power adapter: Yes
• Compatible power plug types: EU, UK
• USB power supply: Yes
• USB Power Delivery up to: 90 W

System requirements

• Supported Windows operating system: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
• Supported Linux operating system: Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04
• Supported MAC OS: Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS
• Other supported operating systems: ChromeOS

Sustainability

• Sustainability compliance: Yes
• Certificates of conformity: RoHS

Environmental conditions

• Operating temperature range: -10 - 45°C
• Storage temperature range: -20 - 60 °C
• Relative humidity range for operation: 0 - 90%

Weight and dimensions

• Width: 90 mm
• Depth: 224 mm
• Height: 40 mm
• Weight: 402 g

Packaging

• Package width: 160 mm
• Package depth: 285 mm
• Package height: 90 mm
• Package weight: 1.8 kg

Package contents

• Cables included: AC power, USB Type-C
• Quick Installation Guide: If
• AC adapter included: Yes
