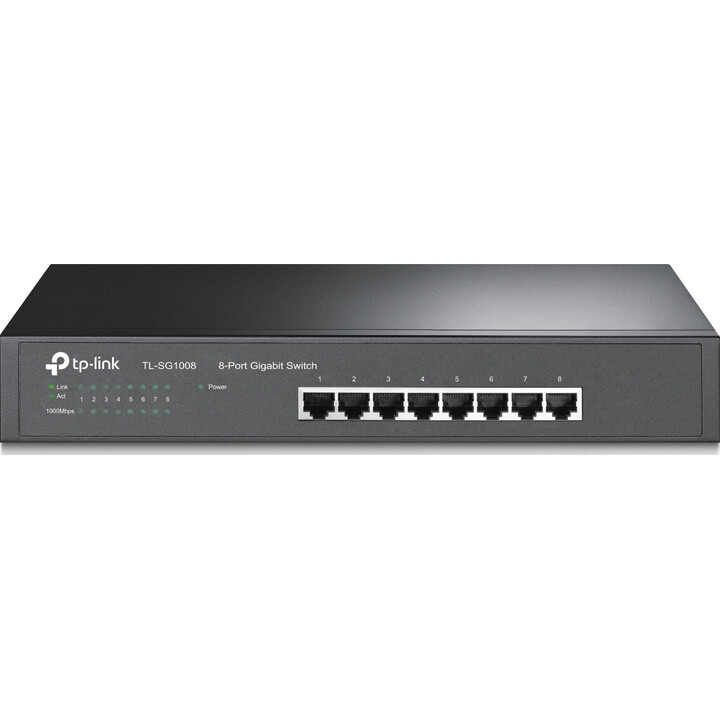

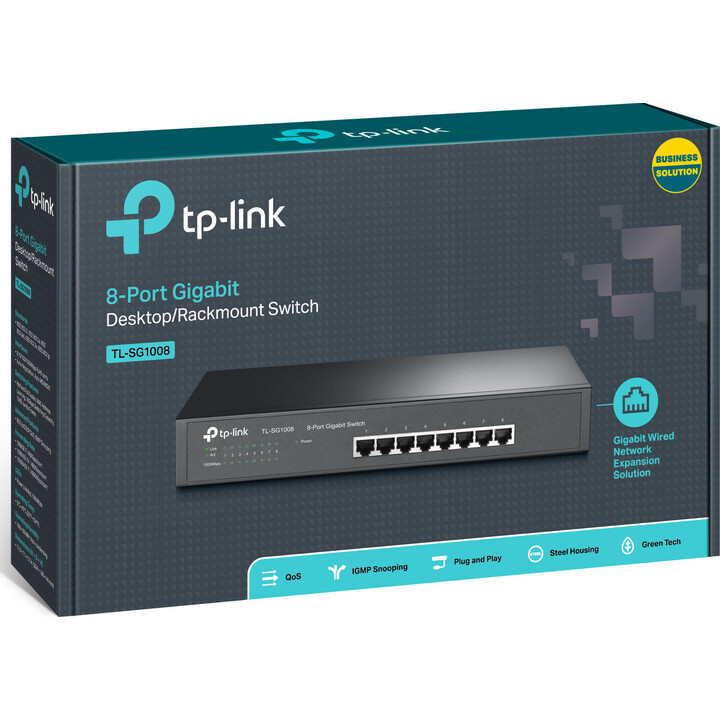

TP-Link TL-SG1008 8-Port Gigabit Desktop/Rackmount Switch
- 8-port Gigabit Ethernet switch (10/100/1000 Mbps) with auto MDI/MDI-X and full-duplex support
- Unmanaged plug-and-play design with 16 Gbit/s switching capacity and 4,000-entry MAC table
- Supports IEEE 802.1p, 802.3ab, 802.3i, 802.3u, 802.3x, jumbo frames up to 16,000 bytes, and flow control
- Desktop or rack-mountable (hardware included), black metal housing, 294 × 180 × 44 mm
- Includes power adapter and quick installation guide; energy-efficient 4.3 W power consumption
TP-Link TL-SG1008 8-Port Gigabit Desktop/Rackmount Switch
The TP-Link TL-SG1008 is an unmanaged 8-port Gigabit Ethernet switch designed to instantly expand your wired network with high-speed 10/100/1000 Mbps connectivity. Whether you need to connect computers, printers, NAS devices, or access points, this switch delivers reliable plug-and-play performance without any configuration required.
With a 16 Gbit/s switching capacity and a 4,000-entry MAC address table, the TL-SG1008 efficiently handles traffic across all eight ports simultaneously. It supports full-duplex operation, flow control (IEEE 802.3x), auto MDI/MDI-X on every port, and jumbo frames up to 16,000 bytes, making it suitable for both home and small office environments.
The switch comes in a sturdy black metal housing measuring 294 × 180 × 44 mm and can be placed on a desktop or mounted in a standard rack (rack-mount kit included). It includes an AC power adapter and a quick installation guide, and its low power consumption of just 4.3 W helps keep energy costs down.
Main features
- 8 × Gigabit Ethernet RJ-45 ports (10/100/1000 Mbps) with auto-negotiation and auto MDI/MDI-X
- Unmanaged, plug-and-play operation — no configuration needed
- 16 Gbit/s switching capacity and 4,000-entry MAC address table
- Supports IEEE 802.1p, 802.3ab, 802.3i, 802.3u, 802.3x standards
- Full-duplex support, flow control, and jumbo frame support up to 16,000 bytes
- Desktop or rack-mountable (rack-mount kit included), black metal housing
- Energy-efficient: 4.3 W power consumption, 100–240 V AC input
Especificaciones técnicas
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Switching capacity | 16 Gbit/s |
| MAC address table | 4000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Supported network protocols | CSMA/CD, TCP/IP |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Power source included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption | 4.3 W |
| Power over Ethernet (PoE) | No |
| Operating temperature range | 0 - 40 °C |
| Storage temperature range | -40 - 70 °C |
| Operating relative humidity | 10 - 90% |
| Storage relative humidity | 5 - 90% |
| Heat dissipation | 14.67 BTU/h |
| Width | 294 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Cables included | AC |
| Quick start guide | Yes |
| Packaging type | Box |
Frequently asked questions
Is this switch managed or unmanaged?
It is an unmanaged switch, meaning it works out of the box without any configuration or software.
Does it support PoE (Power over Ethernet)?
No, the TL-SG1008 does not support PoE. It is designed for data connectivity only.
Can I mount it in a rack?
Yes, it supports rack mounting and includes the necessary hardware. It can also be placed on a desktop.
What is the switching capacity and MAC address table size?
The switch has a 16 Gbit/s switching capacity and a MAC address table that can store up to 4,000 entries.
It is for you if...
- Necesitas ampliar tu red con 8 puertos Gigabit de forma inmediata y sin configuración.
- Buscas un switch fiable para casa u oficina pequeña, con montaje en escritorio o rack.
- Valoras el bajo consumo energético (4.3 W) y la eficiencia en el reenvío de datos.
- Quieres soporte para jumbo frames y control de flujo para un rendimiento estable.
-
TypeSwitch
-
Number of ports8
-
Battery includedNo
| Brand | TP-LINK |
|---|---|
| Country | China |
| Address of origin | South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, Guangdong 518057 |
| EU responsible person | TP-Link Technologies Co., Ltd. |
| Address | Feldring 9, Hofheim am Taunus, Germany, 65719 |
| [email protected] | |
| Phone | 34912000727 |
