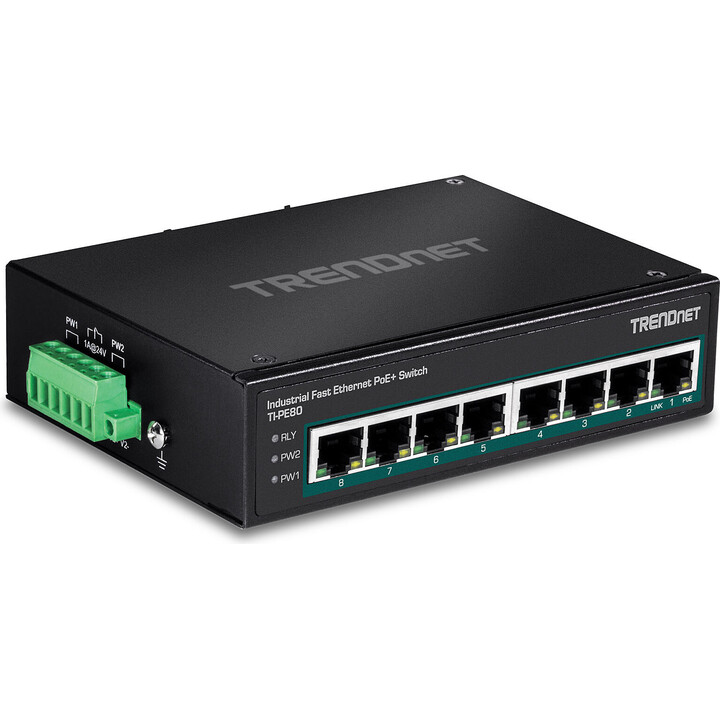

TRENDnet Switch TI-E80 8 Ports/ RJ-45 Gigabit 10/100

TRENDnet Industrial Fast Ethernet DIN-Rail Switches feature a rugged IP30-rated metal enclosure. These industrial Ethernet switches are designed to withstand high levels of vibration and shock; They operate in both low and high temperatures in industrial environments, from -40° to 75° C (-40° to 167° F). Redundant power inputs with surge protection on each ondustrial Ethernet switch minimize network downtime.

simple installation

No configuration required, just connect your network devices to the industrial Ethernet switch

Secondary power supply

These industrial Ethernet switches feature dual power inputs to provide redundant power with surge protection.

rugged industrial design

It is equipped with a robust IP30-rated casing designed to withstand a high degree of vibration and shock, and operates in a wide temperature range, from -40 to 75°C (-40 to 167°F).

• 8 Fast Ethernet ports
• 1.6 Gbps switching capacity
• Forwarding rate: 1.19 Mpps (64-byte packet size)
• IP30 rated metal reinforced switch

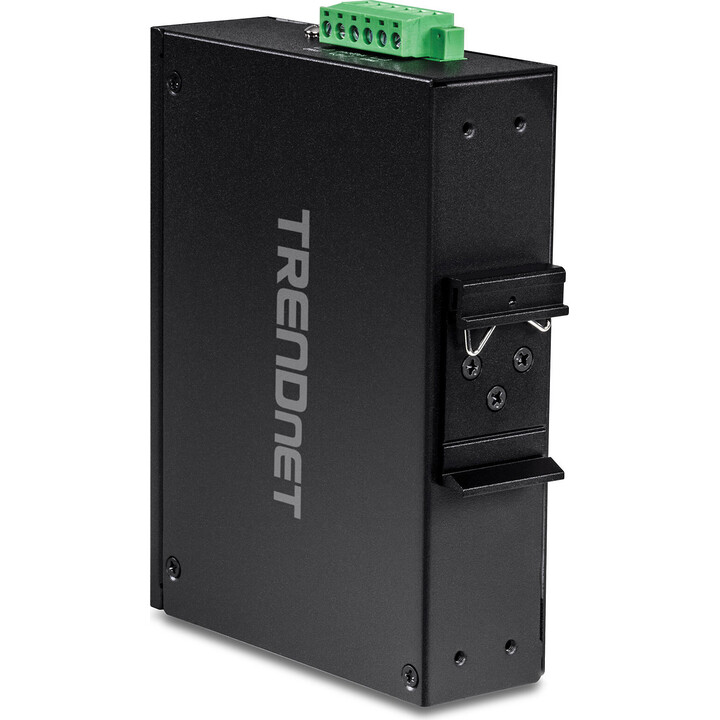

• Includes DIN-rail mounting hardware and wall mounting brackets
• Wide operating temperature range, from -40 to 75°C (-40 to 167°F)
• Redundant dual power inputs with overload protection
• Alarm relay activated by power failure
• Power supply sold separately (model TI-M6024)
• Fanless design for quiet operation

SPECS

• standards
• IEEE802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE802.3x
• device interface
• 8 port fast ethernet
• Removable 6-pin terminal block
• LED indicators
• wall mount
• DIN Rail Mount
• ground connection point
• Data transfer rate
• Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
• Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
• Performance
• Data RAM buffer: 56KB
• Switching mesh: 1.6Gbps
• MAC address table: 1K entries
• Forwarding rate: 0.744 Mpps (64-byte packet size)
• Special features
• Heavy-duty components rated for extreme temperatures
• Redundant power inputs
• Supports 8kV ESD protection
• low profile design
• DC power
• Input: 12 – 56V DC
• Recommended power supply: TI-M6024 (sold separately)
• Maximum consumption: 3W

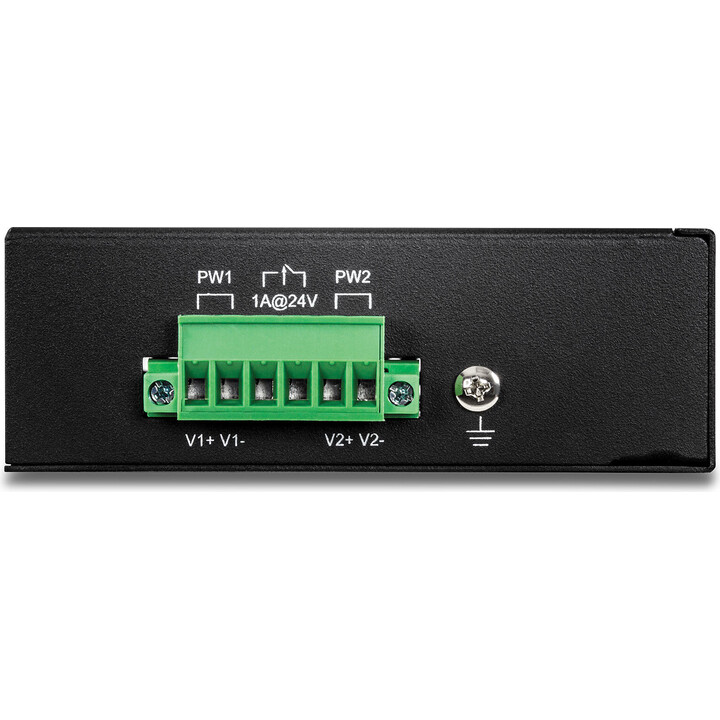

• terminal block
• Redundant power inputs, alarm relay contact, 6-pin
• Wire range: 0.34mm^2 to 2.5mm^2
• Solid wire (AWG): 12-24/14-22
• Stranded Wire (AWG): 12-24/14-22
• Torque: 5 in-lbs / 0.5 Nm / 0.56 Nm
• Wire Strand Length: 7 – 8mm
• alarm relay contact
• Relay outputs with current carrying capacity of 1A, 24 V DC
• Open circuit mode when two power supplies are connected
• Short circuit mode when connected only to a power source
• MTBF
• 510,304 hours
• Case
• IP30 metal casing
• DIN rail mounting
• wall mount
• ground connection point
• Operating temperature
• -40° – 75° C (-40° – 167° F)
• Supported Humidity
• Max 95% non-condensing
• Dimensions
• 142 x 105 x 37mm (5.6 x 4.1 x 1.5 inches)
• Weight
• 635g (22.5oz)
• Certifications
• EC
• FCC
• Shock (IEC 60068-2-27)
• Free fall (IEC 60068-2-32)
• Vibrations (IEC 60068-2-6)
• IEC 61000-4-2
• IEC 61000-4-4
• IEC 61000-4-5
• PACKAGE CONTENTS
• TI-E80
• Quick Installation Guide
• removable terminal block
• DIN rail and wall mounting kit
