Digitus DK-1613-VH-305 network cable Violet 305 m Cat6 U/UTP (UTP)

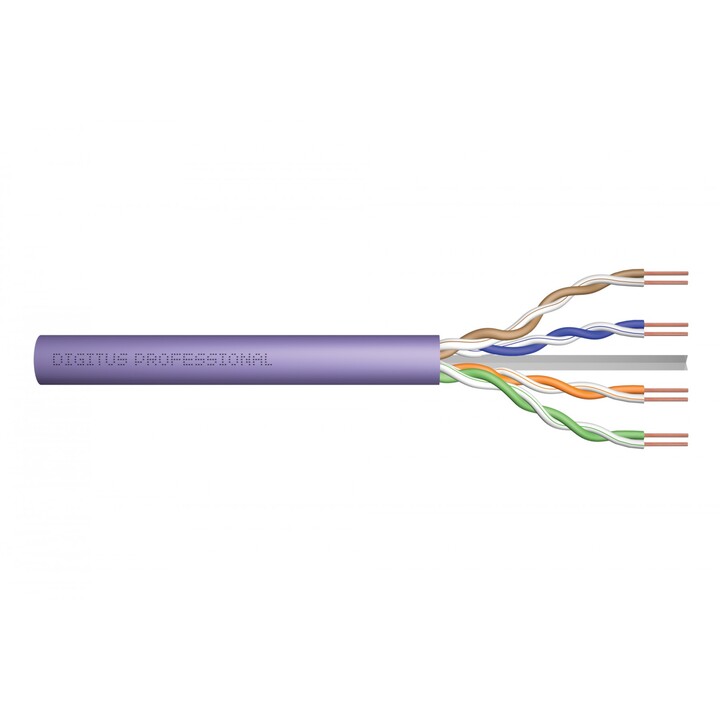

The DIGITUS CAT 6 U-UTP installation cable is designed for high-performance network setups requiring reliable data transmission up to 250 MHz. Featuring AWG 23/1 bare copper conductors, this cable ensures excellent conductivity and minimal signal loss. The cable consists of 8 insulated conductors twisted into 4 pairs with a color code of blue-white, orange-white, green-white, and brown-white, without individual or overall shielding.

Its outer sheath is made of Low Smoke Zero Halogen (LSZH) material classified as Eca to B2ca according to EN 50575 standards, providing enhanced safety in case of fire. The violet (RAL 4005) sheath has a nominal thickness of 0.5 mm and offers robust protection with a strain relief of up to 150N. The cable supports a nominal impedance of 100±5 Ohm and capacitance of 40 pF/m, ensuring stable and efficient signal transmission.

With a nominal outer diameter of 6.1 mm and a weight of 41 kg per km, this cable is easy to handle and install. It operates reliably within a temperature range of -20 °C to +75 °C and is suitable for installation temperatures between 0 °C and +50 °C. The cable is delivered in a convenient 305-meter paper box, ideal for professional network installations requiring high-quality CAT 6 cabling.
