DIGITUS Displayport KVM Switch - 2-Port Single-Display

• 2x1 KVM switch: 2 source devices and 1 console (1 DP monitor, 1 USB keyboard, 1 USB mouse, audio/microphone).

• Video interface: DisplayPort on both input to each PC and output to the monitor (DP in x2, DP out x1).

• User input interface: USB for keyboard/mouse and analogue audio (speakers and microphone) via 3.5 mm jack.

Port connectivity

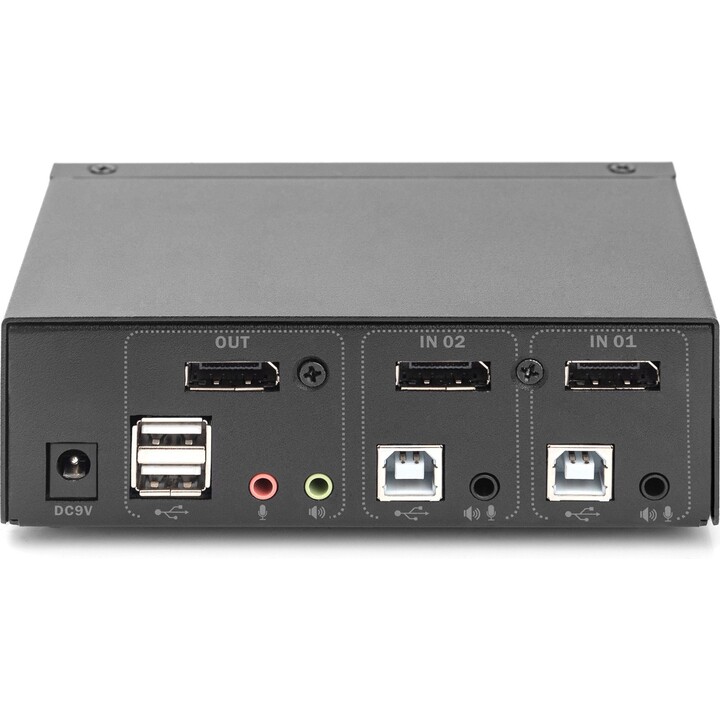

• PC inputs (on the back):

  • 2 x DisplayPort (one per computer).

  • 2 x USB type B (for keyboard/mouse and KVM control).

  • 2 x 3.5mm combo jacks (audio/mic from each PC).

• Console outputs (user):

  • 1 x DisplayPort to monitor.

  • 2 x rear USB A for keyboard and mouse.

  • 2 x 3.5 mm jacks (microphone and speakers).

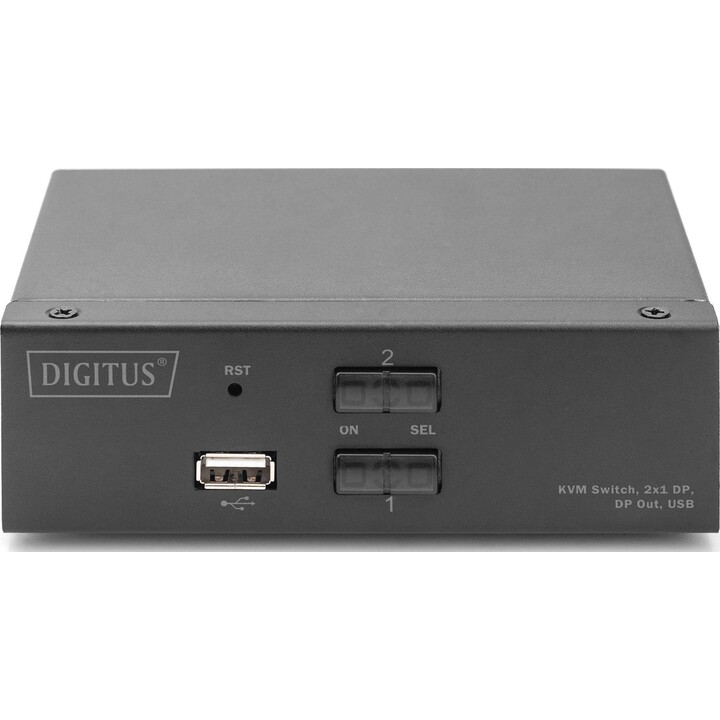

• Additional front port:

  • 1 x front USB A for extra peripherals (flash drive, printer, etc.), shared depending on the active PC.

Video, sound and USB

• Supported resolution: up to 4K @ 60 Hz (3840 x 2160) via DisplayPort, with very good image quality for professional or gaming use.

• Audio:

  • Supports high-definition formats such as Dolby True HD and DTS HD Master Audio via the DP/audio path.

  • In addition, it handles analogue audio via 3.5 mm jacks for microphone and speakers.

• USB:

  • USB 2.0 (Full Speed) interface sufficient for keyboard, mouse and low/medium speed peripherals.

Control, power supply and construction

• Methods of switching between PCs:

  • Selection button on the front panel.

  • Hotkey switching from the connected keyboard.

• Indicators: Status LEDs on the front panel to show which PC is currently active.

• Power supply:

  • USB powered (bus-powered) from PCs.

  • Optionally, a 9 V DC adapter can be used for more stability if many USB peripherals are connected.

• Housing and size:

  • Robust metal housing, suitable for intensive use.

  • Dimensions approx. 13.2 x 9.2 x 4.4 cm; weight approx. 465 g.

• Environmental range: operation 0 °C to 50 °C; storage -20 °C to 60 °C; humidity 0-80% non-condensing.
