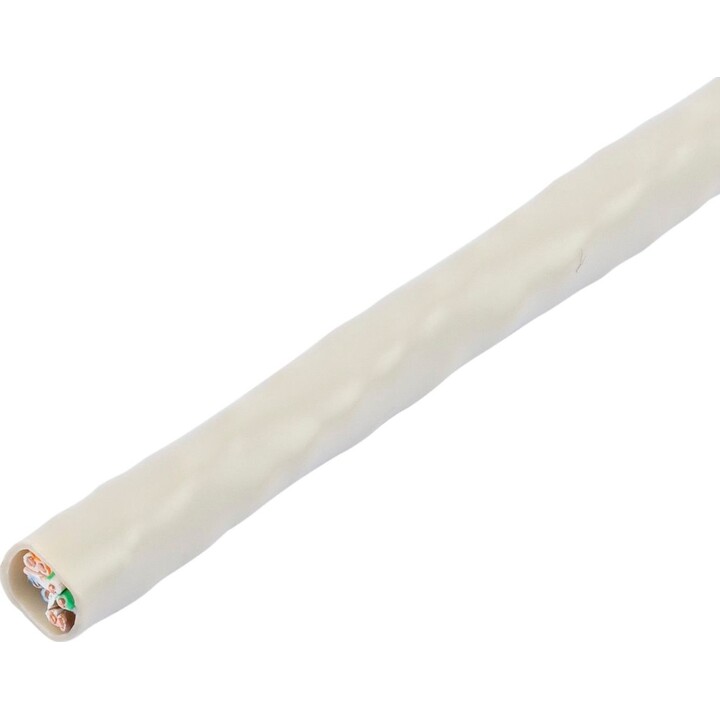

Startech 304.8m Bulk Solid Network Cable Roll UTP Cat6

The gray Cat6 vertical installation cable reel enables Gigabit network connections with PoE (Power-over-Ethernet) in applications requiring CMR category cable. This 304.8-meter (125  -foot ) gray Cat6 vertical installation cable reel , model WIR6CMRGR , meets or exceeds the specifications for this type of cable, ensuring reliable Gigabit network connections. It also features a jacket with length markings in feet, allowing you to easily determine the remaining cable length and facilitating installations that require precise measurements.

StarTech Cat6 cables  are manufactured with high-quality copper conductors. While many manufacturers offer "cheaper" cables made with a copper-clad aluminum core, at StarTech.com we don't compromise on quality, and our customers get the best value and performance from their investment when they purchase our cables.

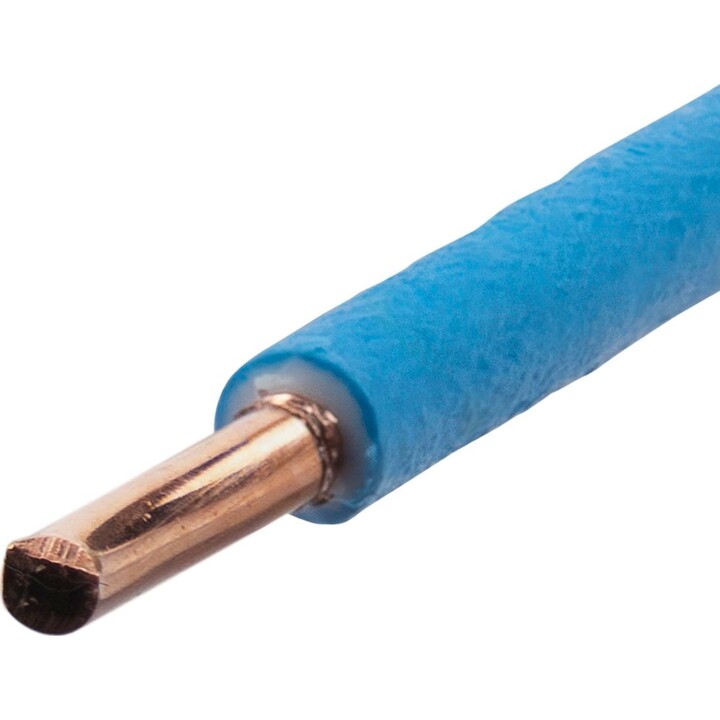

This Cat6 cable is made with 0.26mm² thick copper wire to support a wide range of Ethernet applications, including PoE (Power over Ethernet). Because we use high-quality copper wire, our cables easily handle the power required by PoE applications, unlike the inferior copper-clad aluminum cables offered by other manufacturers. These lower-quality cables may not provide sufficient electrical resistance and can cause overheating, equipment damage, and potentially even fires.

Characteristics:

• Ideal for vertical installations (wall cables, between floors, in elevator shafts, etc.)

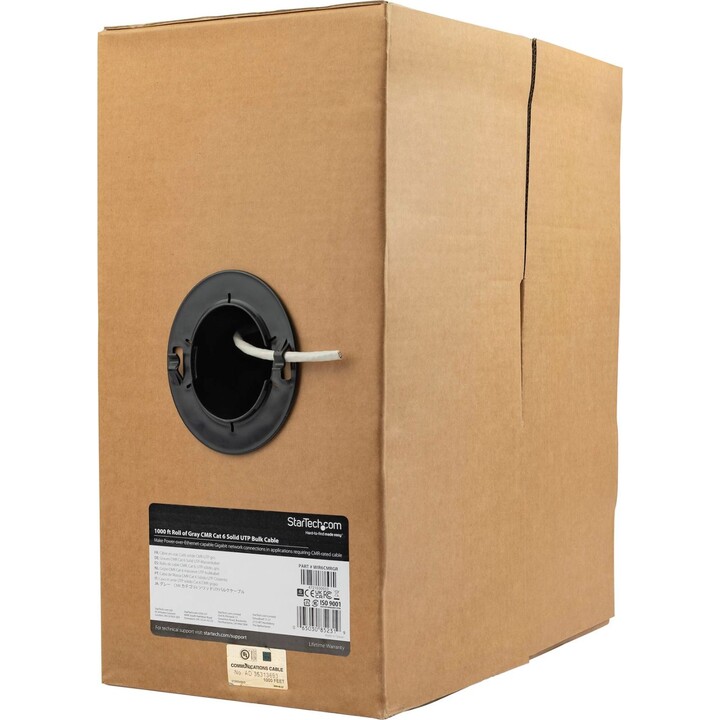

• Easy to remove from the Reelex box, allowing for quick installation
• Easy measurement of cable lengths and how much cable is left on the roll
• Vertical CMR fire rating and UL certification
• Carefully manufactured and tested to keep Near End Crosstalk (NEXT) within acceptable limits
• Manufactured with top quality components

Specs:

• Weight and dimensions
  • Weight: 16.4 kg

• Characteristics
  • Cable length: 304.9 m
  • Standard cable: Cat6
  • Connector 1: No
  • Connector 2: No
  • Gender type: No
  • Cable shielding: U/UTP (UTP)
  • Product color: Gray
  • RoHS Compliance: Yes
  • Jacket material: Polyvinyl chloride (PVC)
  • Wire gauge AWG: 23
  • Frequency: 500 MHz
  • Cable classification: CMR
  • Plug and Play: Yes
  • Certification: UL
