Digitus DK-1623-A-VH-305 network cable Blue 305 m Cat6a U/FTP (STP)

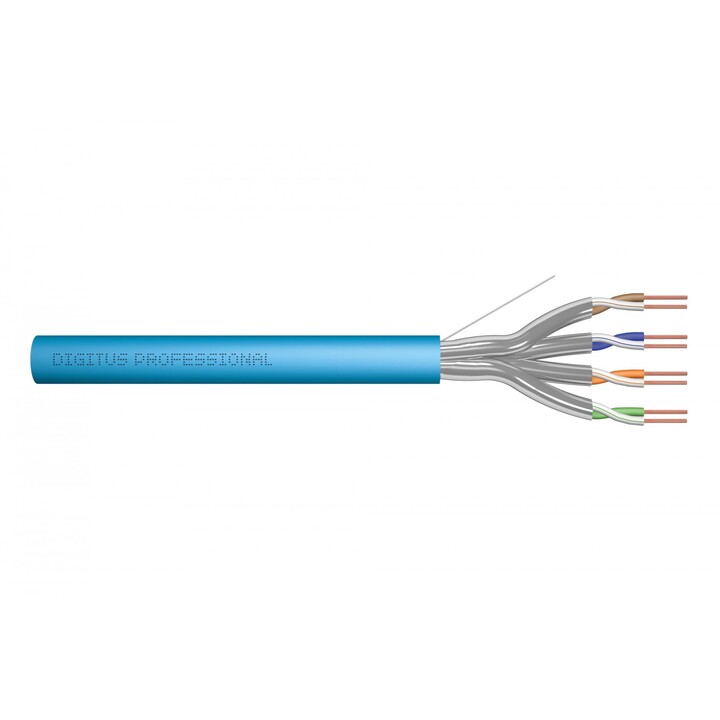

The DIGITUS CAT 6A U-FTP installation cable is designed for high-speed data transmission with a frequency of up to 500 MHz. Featuring AWG 23/1 bare copper conductors, the cable consists of 8 insulated conductors twisted into 4 pairs, each shielded with aluminum-laminated polyester film to ensure minimal interference and optimal signal integrity.

The outer sheath is made of LSZH (Low Smoke Zero Halogen) material, compliant with Eca to B2ca standards according to EN 50575, providing enhanced safety in case of fire. The cable's light blue color (RAL 5012) makes it easy to identify in installations.

Technical specifications include a nominal capacitance of 45 pF/m at 1 KHz, impedance of 100±15 Ohm from 4 to 100 MHz and 100±25 Ohm from 100 to 500 MHz, and a maximum operating voltage of 72 Vdc. The cable supports a strain relief of up to 150N and features dynamic and static bending radii of 8x and 4x the cable diameter respectively, ensuring durability during installation and use.

Operating temperature ranges from -20 °C to +75 °C, with installation recommended between 0 °C and +50 °C. The cable's outer diameter varies slightly depending on the fone classification but is approximately 7.0 to 7.6 mm, with a weight around 56 to 58 kg per kilometer.

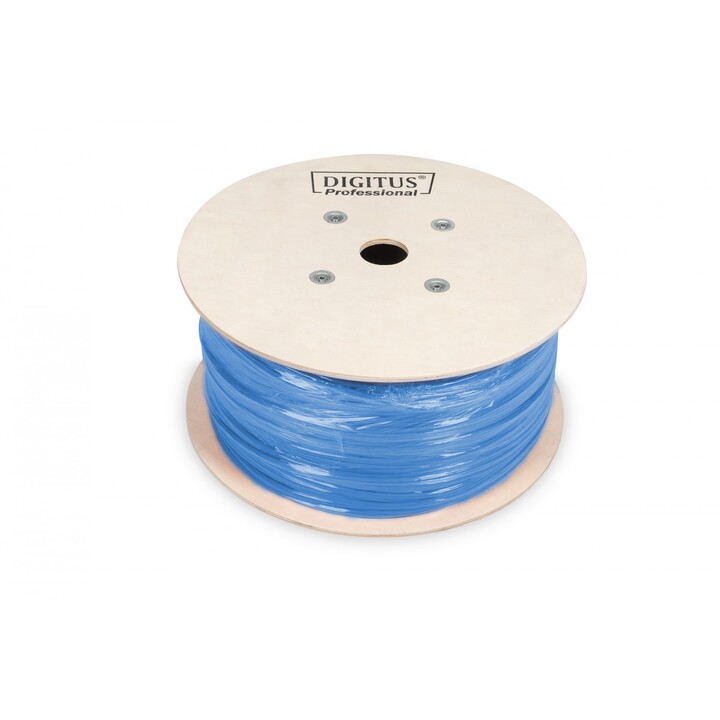

This 305-meter drum cable is ideal for professional network installations requiring reliable, high-speed connectivity with enhanced shielding and safety features.
