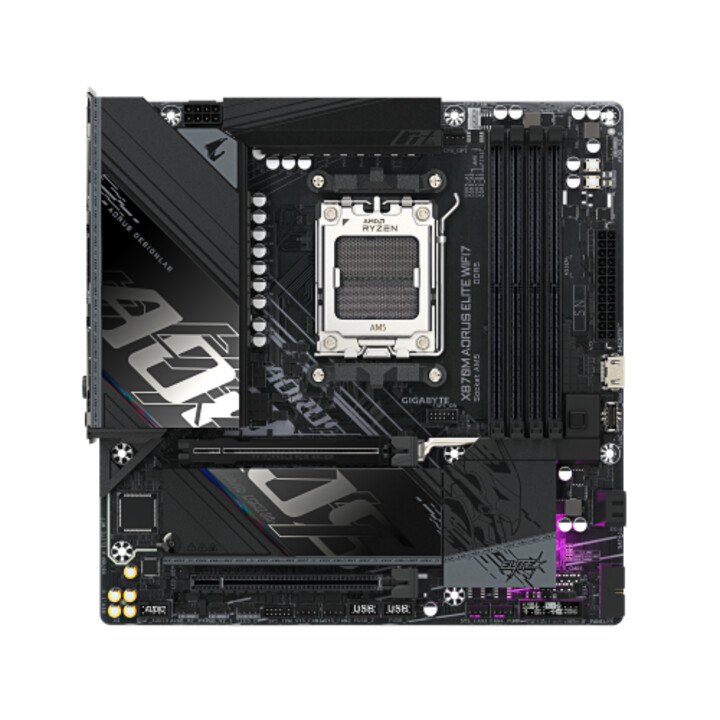

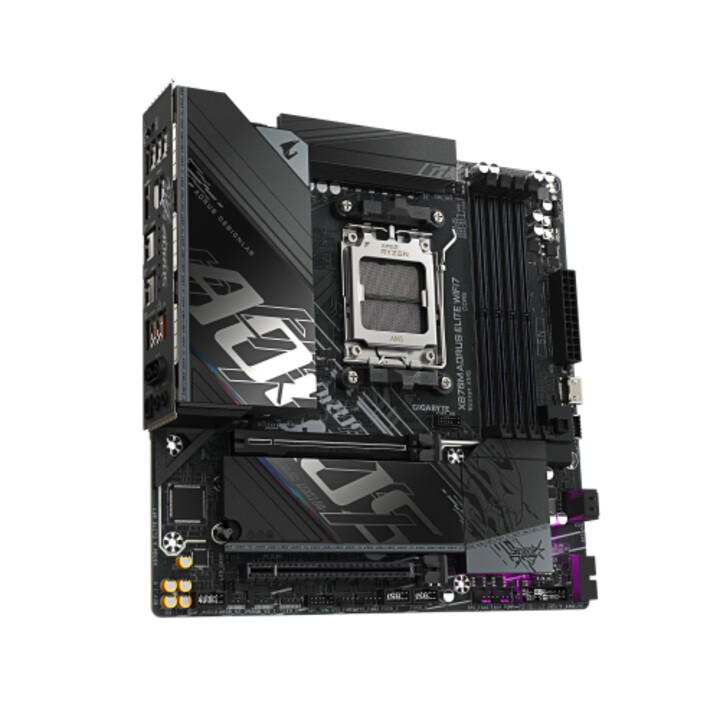

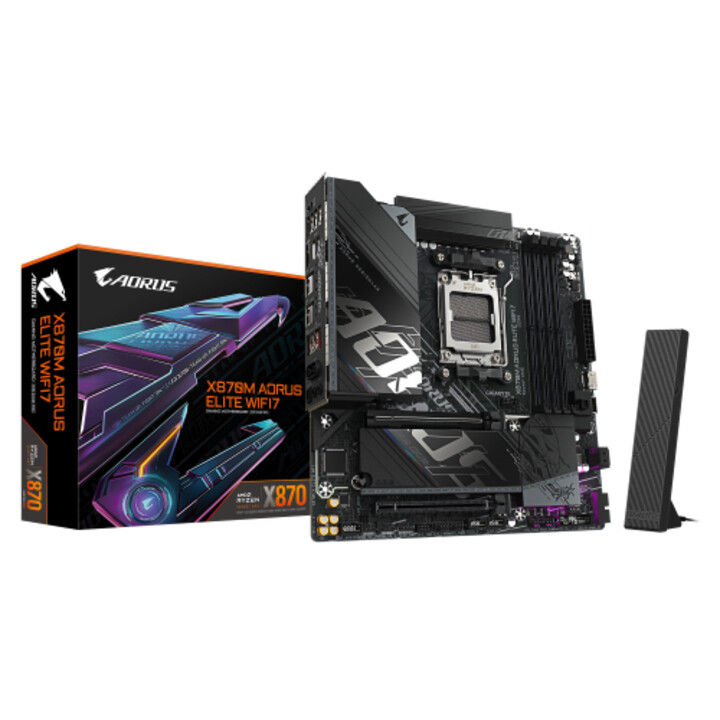

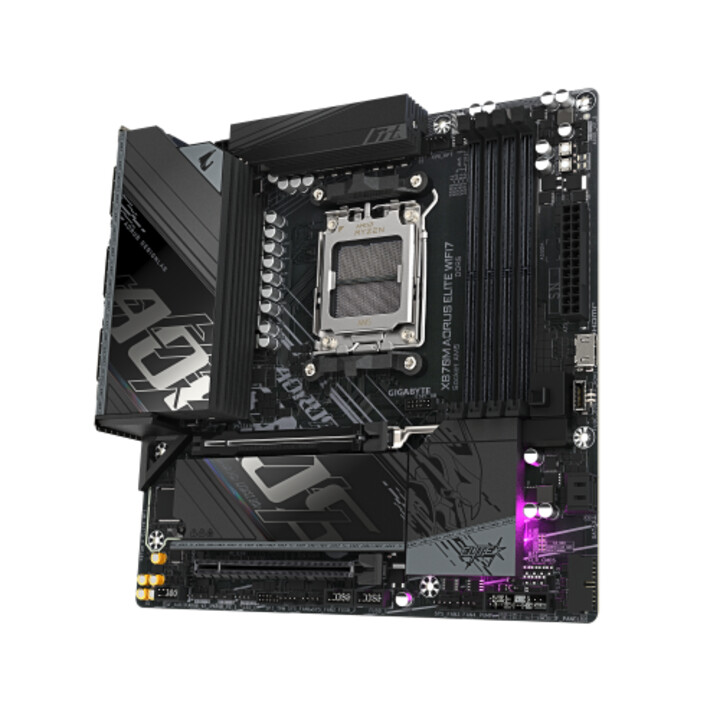

Gigabyte X870m Aorus Elite Wifi7 Motherboard – Compatible with AMD Ryzen 9000 Processors, 14+2+2 Phase Digital VRM, Up to 8200 M

GIGABYTE X870M AORUS ELITE WF7 BOARD, AMD, AM5,

Specs:

- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets: Socket AM5
- Maximum supported memory clock speed: 8200 MHz
- ECC compatibility: Non-ECC
- Maximum internal memory per slot: 64GB
- Compatible memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slot type: DIMM
- Maximum internal memory: 256 GB
- Memory channels: Dual channel
- Supported memory clock speeds: 8200, 8000, 7950, 7900, 7800, 7600, 7400, 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5200, 4800, 4400 MHz
- Unbuffered memory: Yes
- Wi-Fi Standard: Wi-Fi 7 (802.11be)
- WLAN controller model: Realtek RTL8922AE
- Ethernet: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN Controller: Realtek RTL8125
- Wi-Fi: Yes
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- Bluetooth version: 5.4
- USB 3.2 Gen 2x2 connectors: 1
- Number of CPU fan connectors: 2
- Number of water pump connectors: 2
- Number of RGB LED pin headers: 4
- Number of EPS power connectors (8-pin): 1
- USB 2.0, connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 2
- Front panel audio connector: Yes
- ATX power connector (24 pins): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 4
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
- Front panel connector: Yes
- EPS power connector (8-pin): Yes
- 12V electrical connector: Yes
- Connector for RGB LED strips: Yes
- TPM Connector: Yes

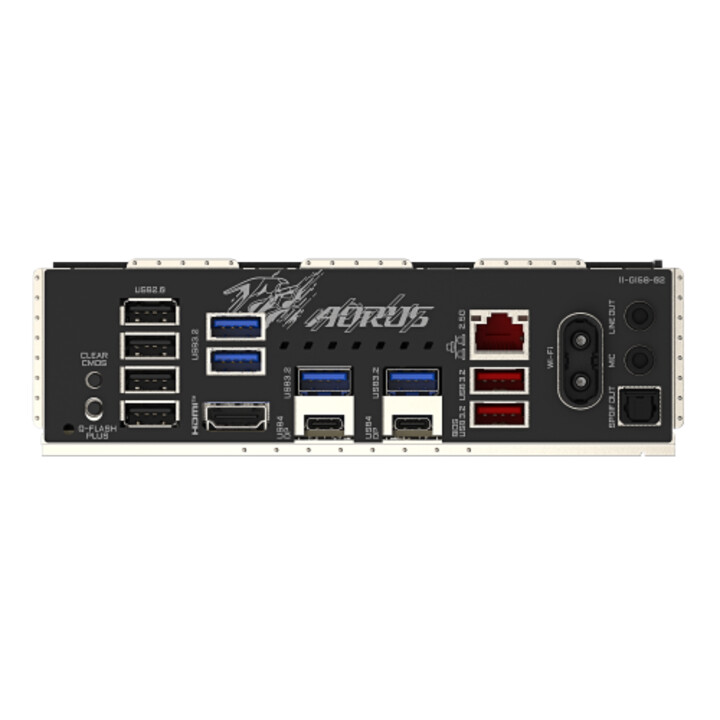

- Number of USB4 Gen 3×2 ports: 2
- Line input: If
- USB 2.0: 4
- USB 3.2 Gen 1 (3.1 Gen 1): 4
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type A ports: 2
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type C ports: 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type C: 0
- Ethernet LAN (RJ-45) ports: 1
- S/PDIF output port: Yes
- Optical Audio Output: 1
- WiFi-AP antenna connector: 2
- VGA (D-Sub) ports: 0
- HDMI ports: 1
- Number of DVI-D ports: 0
- HDMI Version: 2.1
- DisplayPort version: 1.4
- Headphone jack: 1
- RAID compatibility: Yes
- Number of compatible storage units: 4
- Supported storage disk interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
- Supported storage drive types: HDD & SSD
- RAID levels: 0, 1, 5, 10
- Number of HDDs supported: 2
- PCI Express x16 (Gen 5.x) slots: 1
- 1st M.2 largest key size: 25110
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 22110
- 2nd M.2 highest PCI Express generation: 4.0
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 slots (M): 2
- BIOS types: UEFI AMI
- BIOS, memory size: 256 MB/s
- ACPI Version: 5.0
- Jumper Clear CMOS: Yes
- System Management BIOS (SMBIOS) version: 2.7
- CMOS cleaning button: Yes
- Desktop Management Interface (DMI) version: 2.7
- Parallel processing support: Not supported
- Maximum resolution: 4096 x 2160 Pixels
- HDCP: Yes
- DirectX Version: 12.0
- Product color: Black
- Chipset family: AMD
- Chipset: AMD X870
- Form factor: Micro ATX
- Audio output channels: 7.1 channels
- Sound chip: Realtek ALC1220-VB
- Power supply: ATX
- Component for: PC
- Supported Windows operating system: Windows 11 x64
- Cooling type: Passive
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Width: 244 mm
- Depth: 244 mm
- Package width: 270 mm
- Package depth: 268 mm
- Package height: 68 mm
- Package weight: 2.06 kg
- Height: 35 mm
- Batteries included: Yes
- Screws included: Yes
- Antenna included: Yes
- Software included: Norton® Internet Security (OEM version)
- Warranty period: 3 year(s)
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Cells: 1
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Country of origin: China
- Quantity per shipping box: 1 piece(s)
