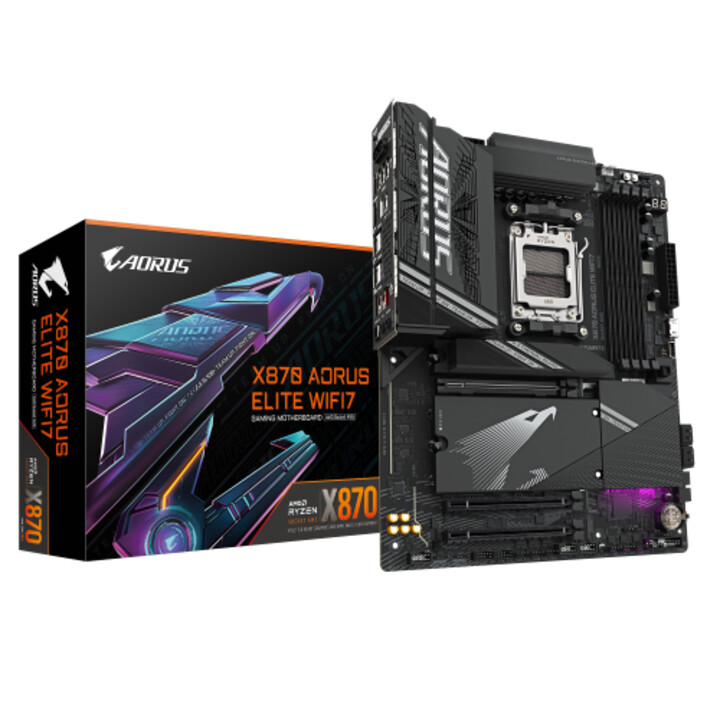

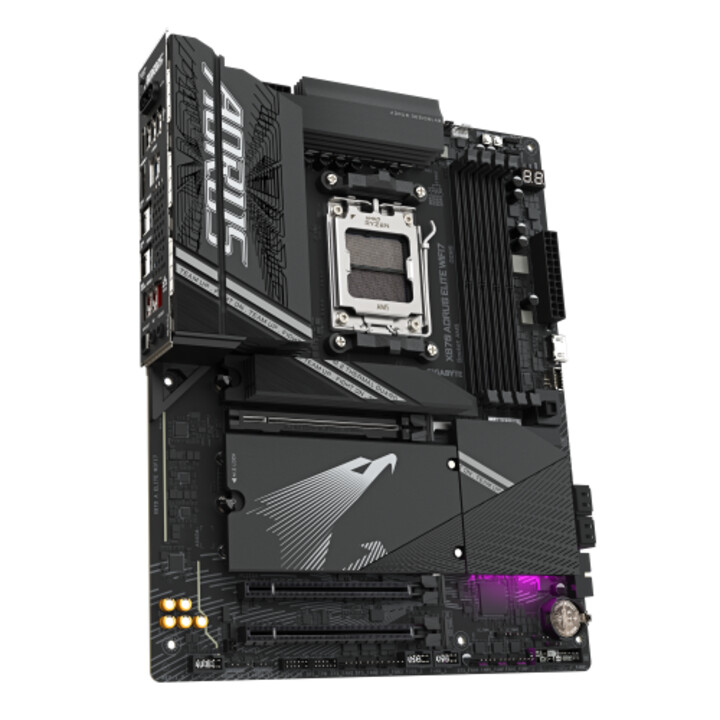

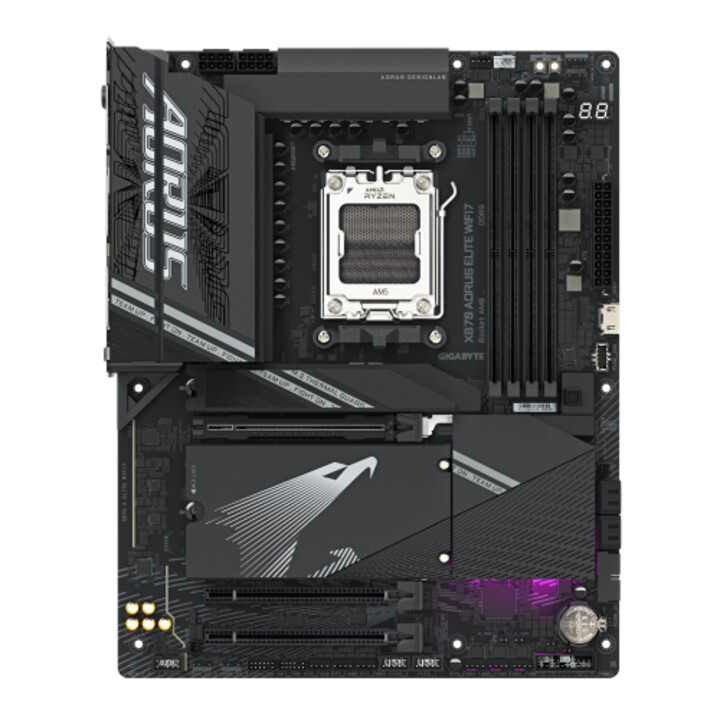

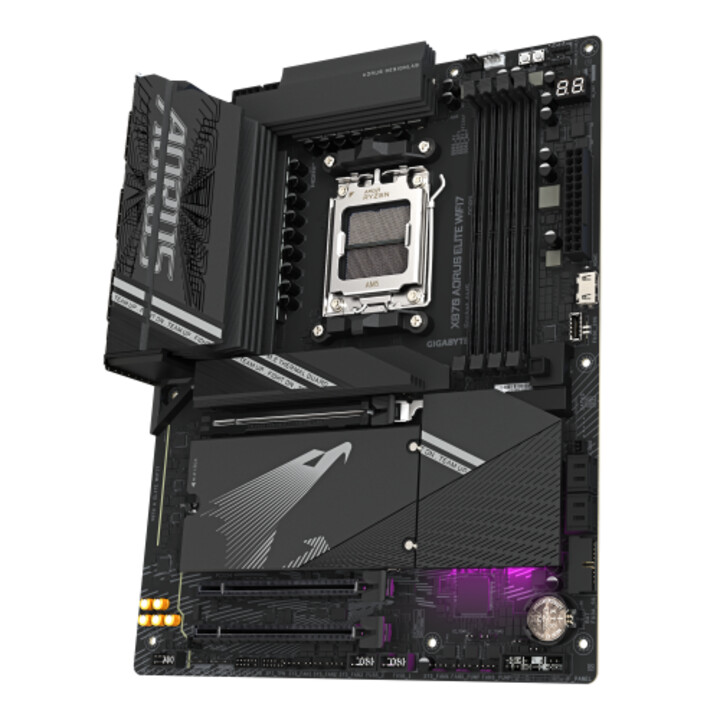

Gigabyte X870 A Elite Wifi7 Motherboard - Compatible With Amd Ryzen 9000 Cpus, 16+2+2 Phase Vrm, Up To 8000mhz Ddr5 (oc), 4xpcie

GIGABYTE X870 A ELITE WIFI7,AMD,AM5,X870,4DDR5,256GB,WIFI7,ATX

Specs:

- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Supported processor: AMD Ryzen 7
- Supported processor sockets: Socket AM5
- Maximum internal memory supported by the processor: 256 GB
- Maximum supported memory clock speed: 8000 MHz
- supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slot type: DIMM
- Maximum internal memory: 256 GB
- Memory channels: Dual channel
- Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz
- Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB
- Wi-Fi standard: Wi-Fi 7 (802.11be)
- WLAN controller model: MediaTek MT7925
- Ethernet: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wifi: Yes
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- USB 3.2 Gen 2x2 connectors: 1
- USB 2.0, connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 4
- ATX power connector (24 pin): Yes
- EPS power connector (8-pin): Yes
- Connector for RGB LED strips: Yes
- TPM connector: Yes
- Total number of SATA connectors: 4
- USB4 Gen 2x2 ports quantity: 2
- USB 2.0: 2
- USB 3.2 Gen 1 (3.1 Gen 1): 4
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 3
- Ethernet LAN ports (RJ-45): 1
- S/PDIF output port: Yes
- HDMI ports: 1
- DisplayPort: 2
- Microphone input: Yes
- RAID Support: Yes
- Number of supported storage units: 4
- Supported storage disk interfaces: M.2, SATA III
- Supported storage drive types: HDD & SSD
- RAID levels: 0, 1, 10
- Number of HDDs supported: 8
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x4 slots: 2
- Number of M.2 (M) slots: 4
- BIOS types: UEFI AMI
- BIOS, memory size: 256 MB/s
- ACPI version: 5.0
- Clear CMOS Jumper: Yes
- System Management BIOS (SMBIOS) version: 2.7
- CMOS clear button: Yes
- Desktop Management Interface (DMI) version: 2.7
- DirectX version: 12.0
- Product colour: Black
- Chipset family: AMD
- Chipset: AMD X870
- Form factor: ATX
- Audio output channels: 7.1 channels
- Sound chip: Realtek ALC1220
- Component for: PC
- Supported Windows operating system: Windows 11 x64
- PC Health Monitoring: Fan, Temperature, Voltage
- Width: 305 mm
- Depth: 244 mm
- Package width: 335 mm
- Package depth: 270 mm
- Package height: 80 mm
- Package weight: 2.74 kg
- Height: 35 mm
- Batteries included: Yes
- Software included: Norton? Internet Security (OEM version)LAN bandwidth management software
- Warranty period: 3 year(s)
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Cells: 1
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Country of origin: China
- Quantity per shipping box: 1 piece(s)
