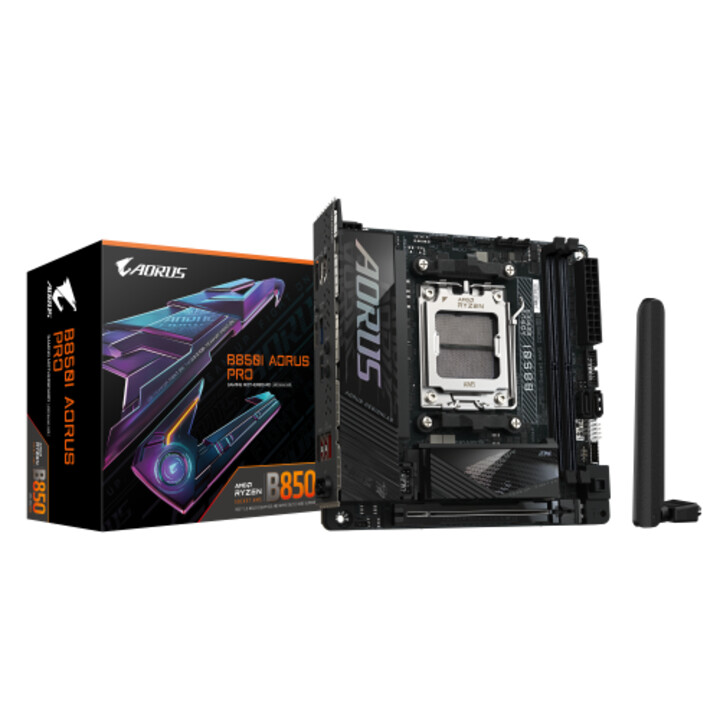

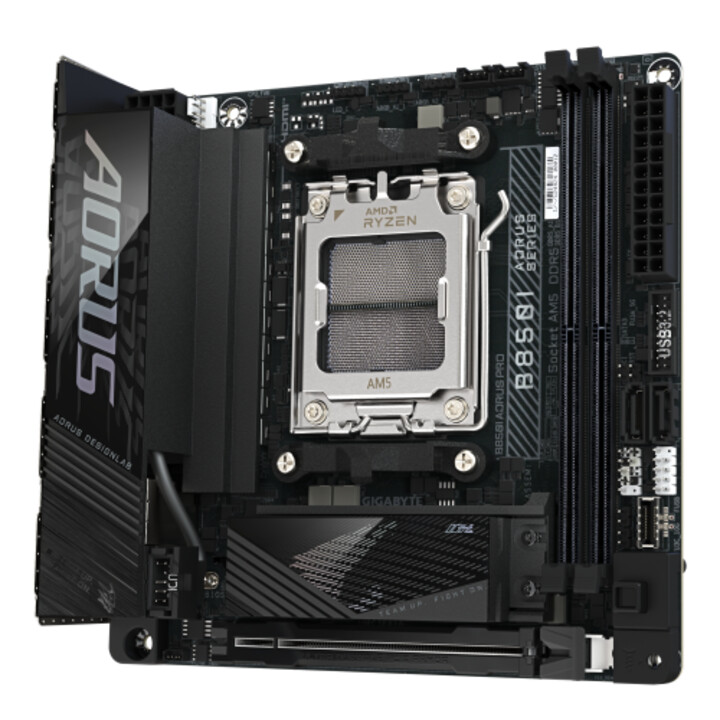

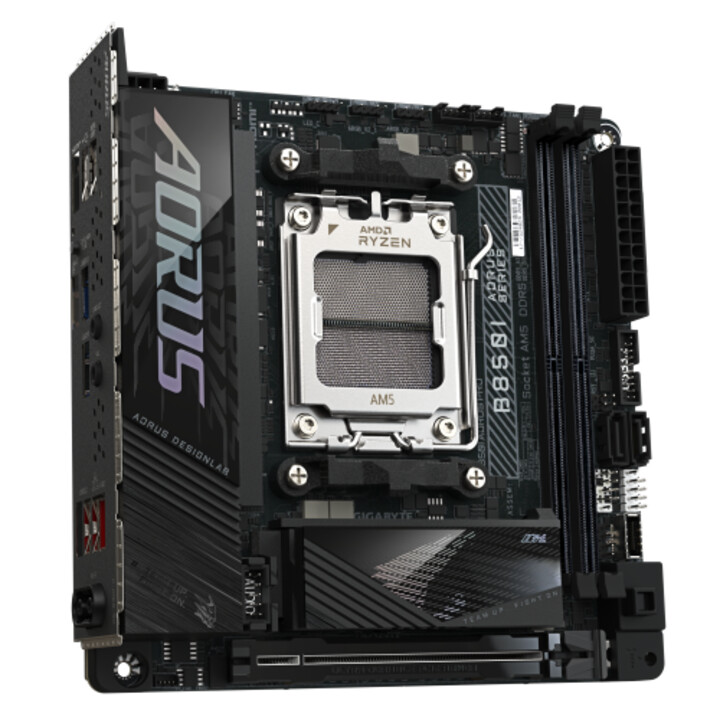

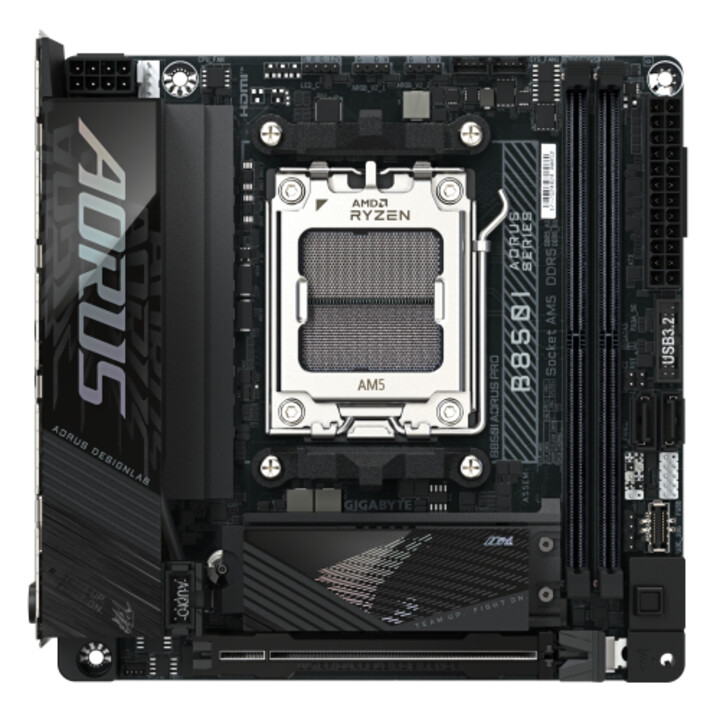

Gigabyte B850i Aorus Pro Motherboard - Supports Amd Ryzen 9000 Series Processors, 8+2+1 Phase Digital Vrm, Up to 8400mhz Ddr5(oc

GIGABYTE B850I AORUS PRO BOARD,AMD,AM5,B850,2DDR5,128GB,1HDMI,2SATA3+2M.2,2.5GBELAN+WIFI7+BT5.4,4USB3.2,ITX

Specs:

- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets: AM5 socket
- Maximum supported memory clock speed: 8400 MHz
- ECC compatibility: Non-ECC
- Maximum internal memory per slot: 64GB
- supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slot type: DIMM
- Maximum internal memory: 128GB
- Memory channels: Dual channel
- Supported memory clock speeds: 4400,4800,5200,8400 MHz
- Unbuffered memory: Yes
- Wi-Fi standard: Wi-Fi 7 (802.11be)
- WLAN controller model: Realtek RTL8922AE
- Ethernet: Yes
- Ethernet interface type: Gigabit Ethernet
- Wifi: Yes
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- Bluetooth version: 5.4
- Number of CPU fan connectors: 2
- Number of RGB LED pin headers: 4
- Number of EPS power connectors (8-pin): 1
- USB 2.0, connectors: 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 2
- Front panel audio connector: Yes
- ATX power connector (24 pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 3
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Front panel connector: Yes
- EPS power connector (8-pin): Yes
- 12V electrical connector: Yes
- Connector for RGB LED strips: Yes
- TPM connector: Yes
- Serial port header: 1
- USB 2.0: 2
- USB 3.2 Gen 1 (3.1 Gen 1): 2
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type C: 0
- Ethernet LAN ports (RJ-45): 1
- WiFi-AP antenna connector: 2
- VGA (D-Sub) ports: 0
- HDMI ports: 1
- Number of DVI-D ports: 0
- DisplayPort: 1
- Headphone jack: 1
- Microphone input: Yes
- RAID Support: Yes
- Number of supported storage units: 4
- Supported storage disk interfaces: M.2, SATA III
- Supported storage drive types: HDD & SSD
- RAID levels: 0, 1, 10
- Number of HDDs supported: 2
- PCI Express x16 (Gen 5.x) slots: 2
- 1st M.2 largest key size: 2280
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation: 4.0
- Number of M.2 (M) slots: 2
- BIOS types: UEFI AMI
- BIOS, memory size: 256 MB/s
- ACPI version: 5.0
- Clear CMOS Jumper: Yes
- System Management BIOS (SMBIOS) version: 2.7
- CMOS clear button: Yes
- Desktop Management Interface (DMI) version: 2.7
- Parallel processing support: Not supported
- Maximum resolution: 4096 x 2160 pixels
- HDCP: Yes
- DirectX version: 12.0
- Product colour: Black, Brown
- Chipset family: AMD
- Chipset: AMD B850
- Form factor: Mini ITX
- Audio output channels: 7.1 channels
- Sound chip: Realtek ALC897
- Component for: PC
- Supported Windows operating system: Windows 11 x64
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Width: 170 mm
- Depth: 170 mm
- Weight: 1.3 kg
- Height: 35 mm
- Batteries included: Yes
- Screws included: Yes
- Antenna included: Yes
- Software included: Norton Internet Security (OEM version)LAN bandwidth management software
- Warranty period: 3 year(s)
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Cells: 1
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Country of origin: China
- Quantity per shipping box: 1 piece(s)
