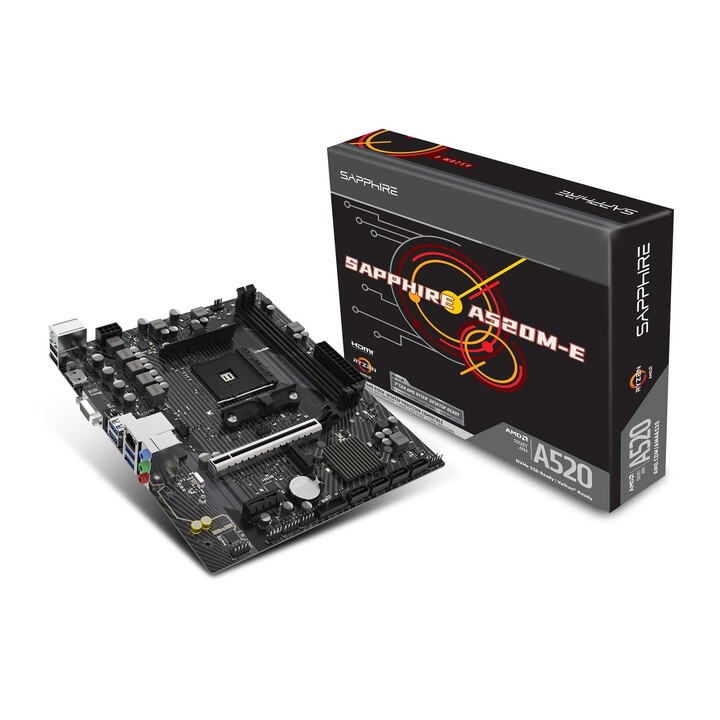

Sapphire A520M-E AMD A520 Socket AM4 micro ATX

The Sapphire A520M-E is a Micro ATX motherboard designed for AMD Ryzen processors, featuring the AMD A520 chipset and AM4 socket. It supports up to 64GB of dual-channel DDR4 memory across two DIMM slots, with a maximum memory clock speed of 3200 MHz, ensuring smooth multitasking and performance.

This motherboard includes a Realtek ALC897 high definition audio codec providing 5.1 channel audio output for immersive sound experiences. Connectivity options are versatile, with multiple USB ports including four USB 3.2 Gen 1 Type-A ports, two USB 2.0 ports, and one USB 2.0 internal connector. It also offers one PCI Express x16 (Gen 3.0) slot and one PCI Express x1 slot for expansion cards.

Storage support includes four SATA III connectors and one M.2 slot (2280 size, PCI Express 3.0) compatible with both HDDs and SSDs, supporting RAID levels 0, 1, and 10. The motherboard features Gigabit Ethernet via the Realtek RTL8111M LAN controller and HDMI 2.1 output for high-definition video.

Designed with a black color scheme, the Sapphire A520M-E is compatible with Windows 10 x64 and Windows 11 x64 operating systems. It includes one PS/2 port, one VGA (D-Sub) port, and supports audio output through three headphone outputs. The motherboard is ideal for building reliable and efficient PCs with AMD Ryzen 3000, 4000, and 5000 series processors.
