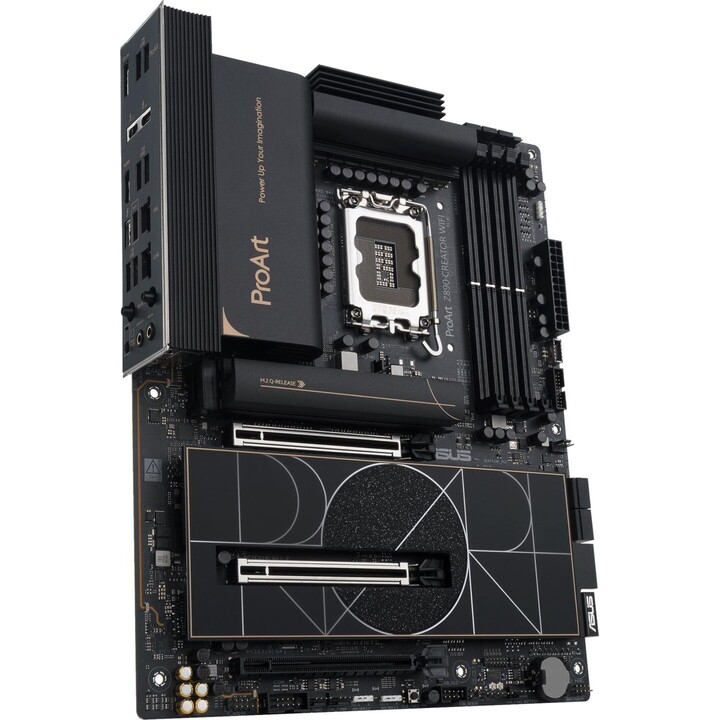

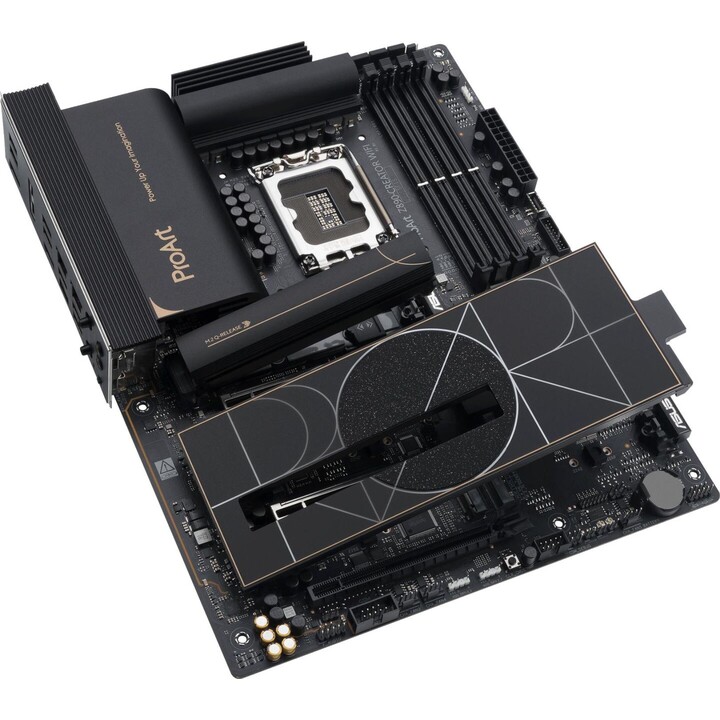

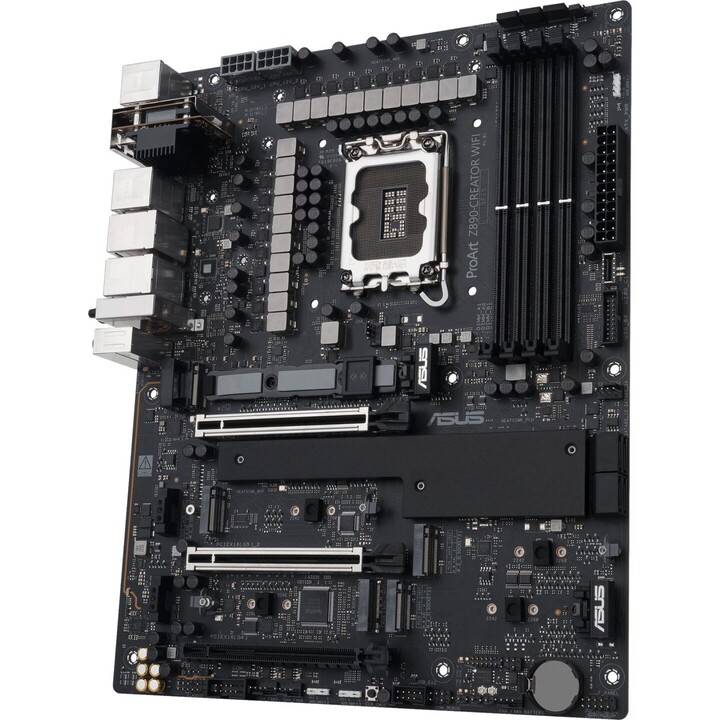

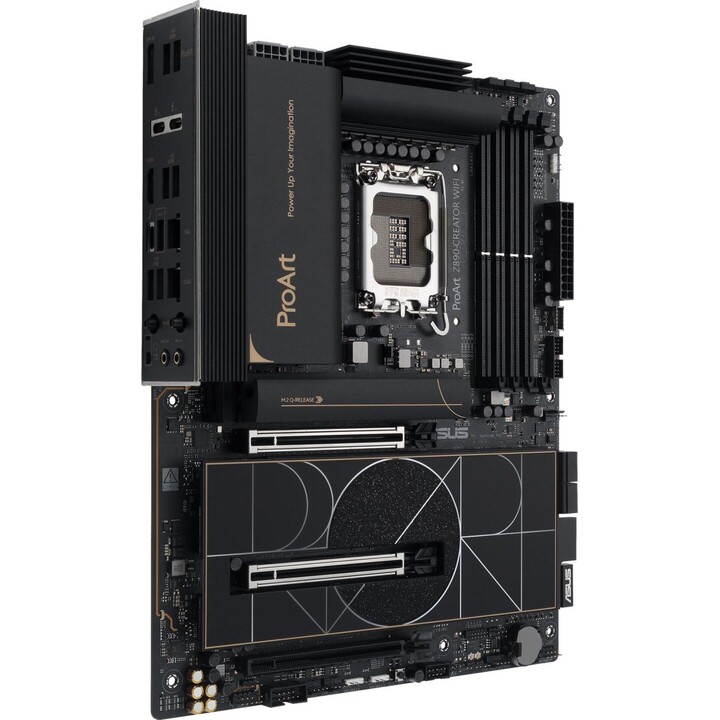

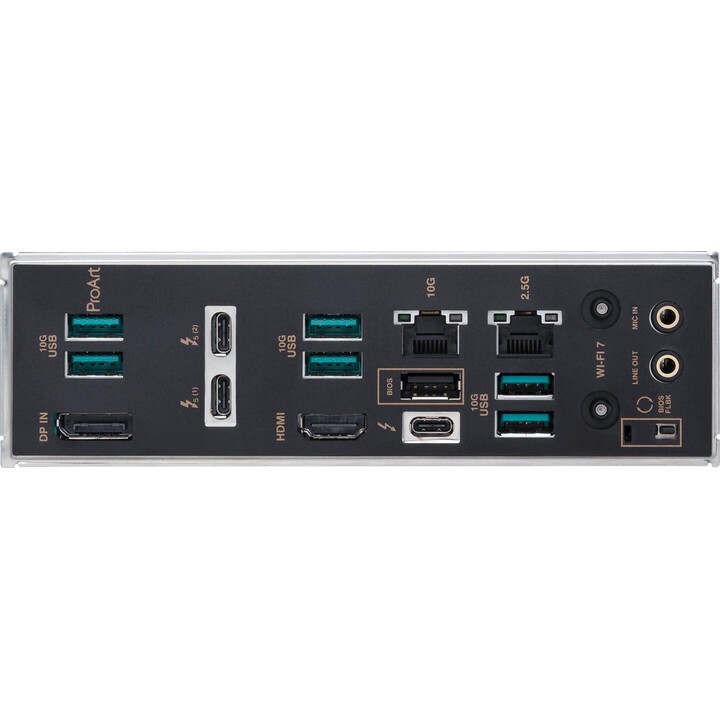

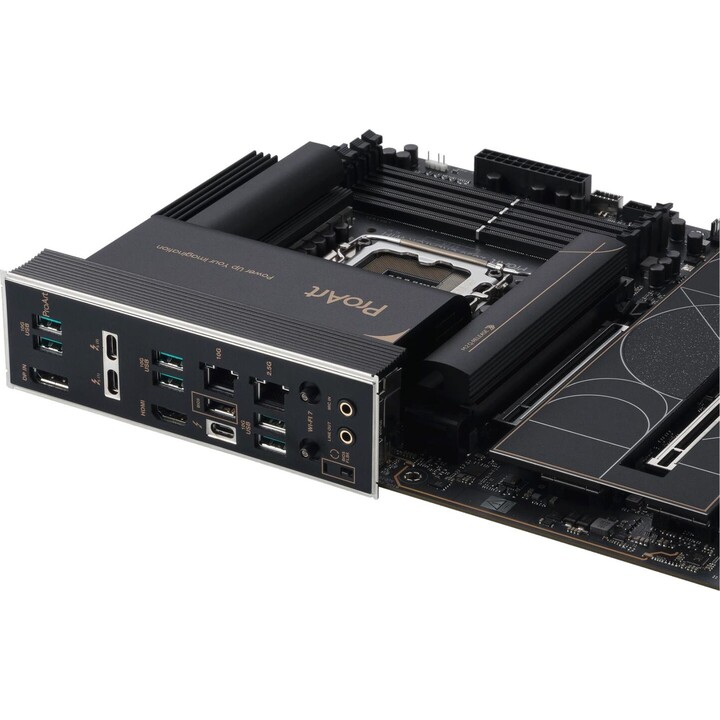

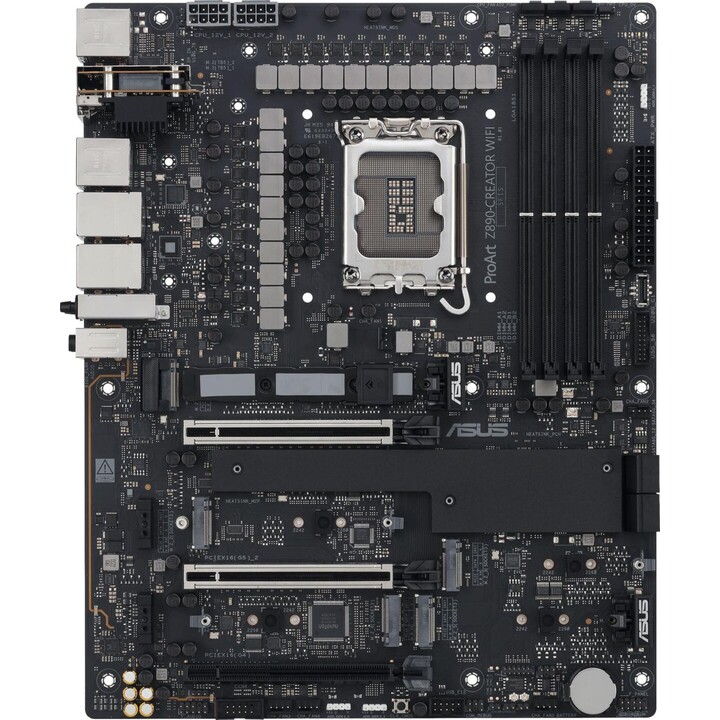

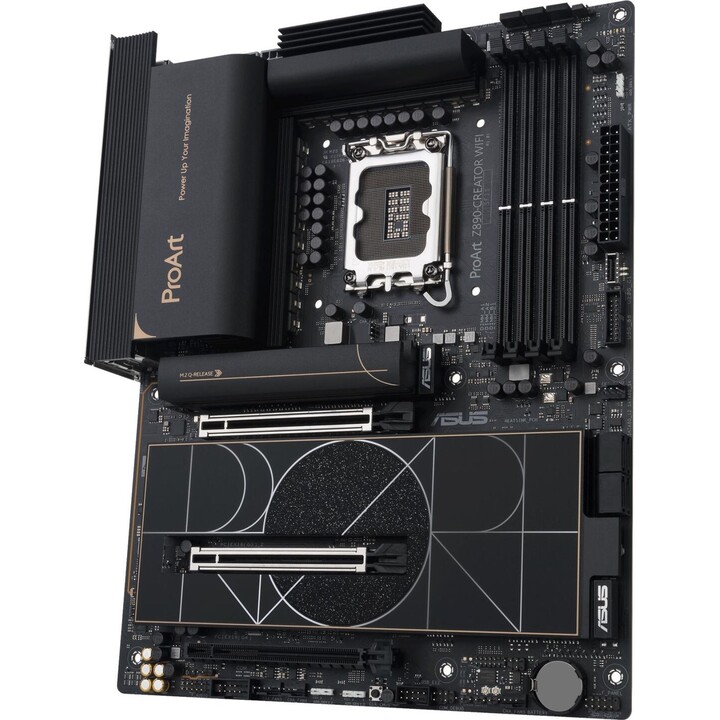

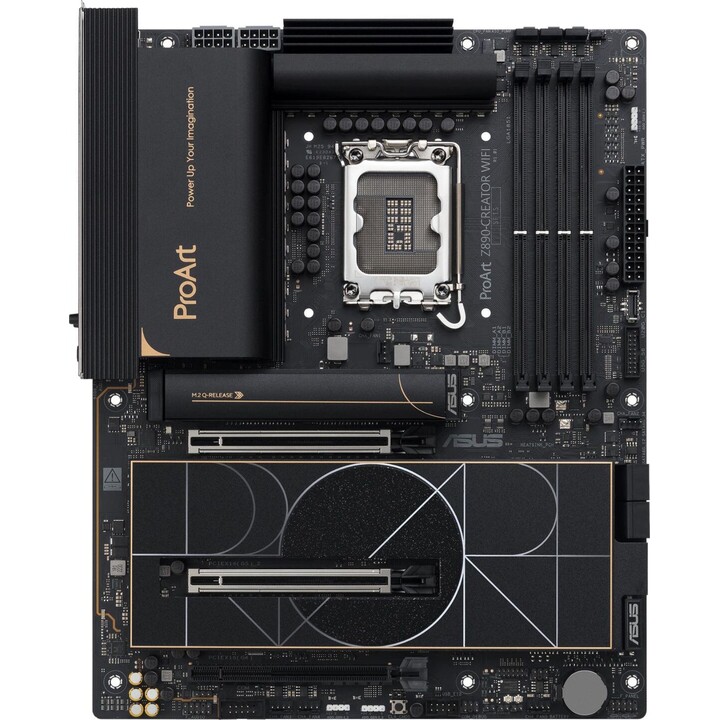

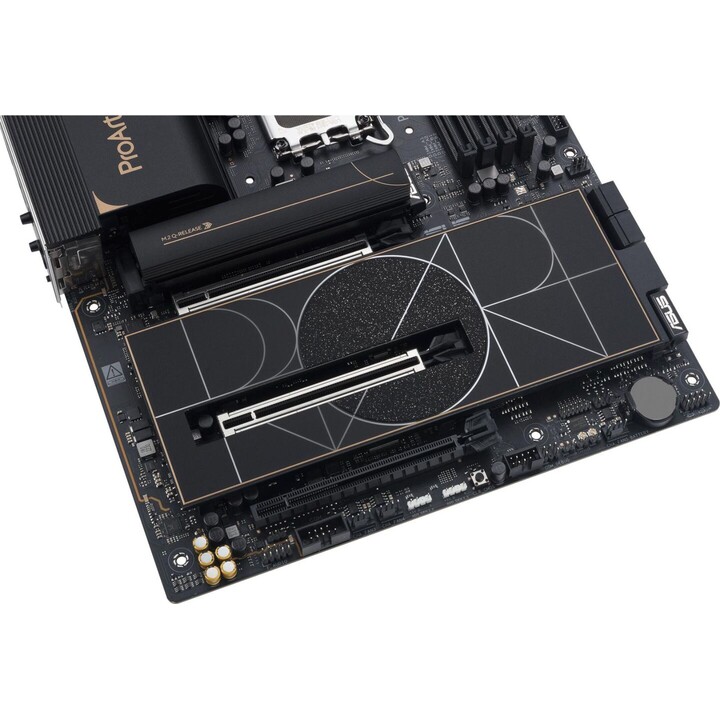

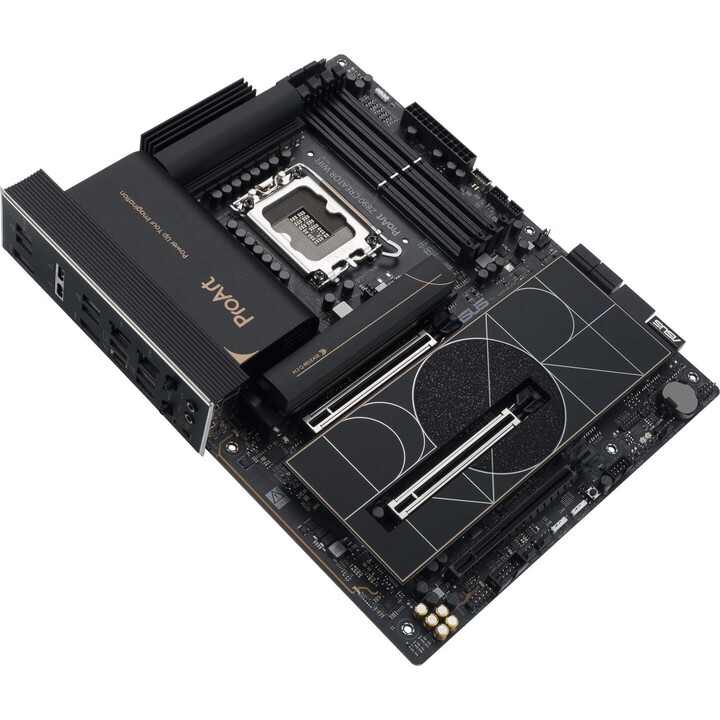

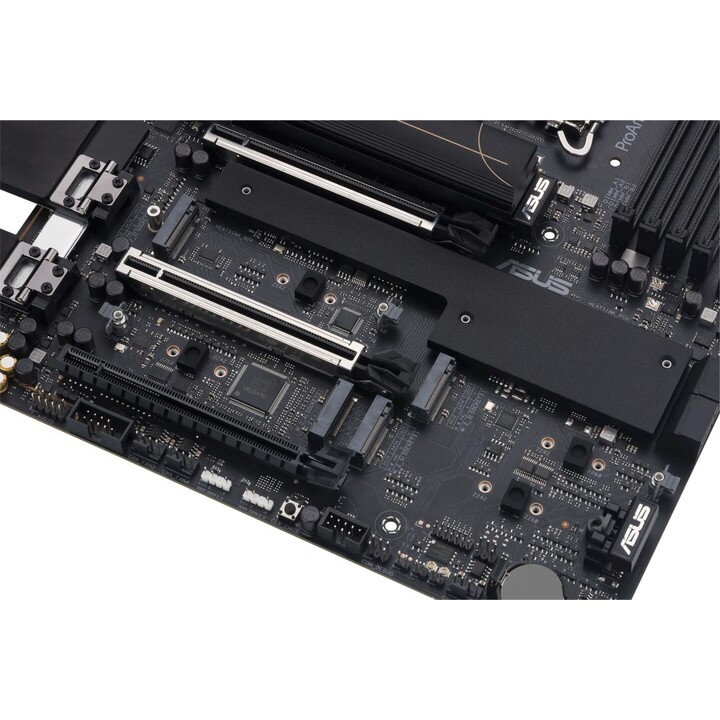

Asus Proart Z890-creator Wifi Intel Z890 Lga 1851 (socket V1) Atx

ASUS PROART Z890-CREATOR WIFI BOARD,INTEL,1851,Z890,4DDR5,192GB,1HDMI+3THUNDERBOLT,4SATA3+5M.2,2LAN+2WIFI7+BT5.4,7USB3.2,ATX

Specs:

- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- Supported processor: Intel Core Ultra (Series 2)
- Supported processor sockets: LGA 1851
- Maximum supported memory clock speed: 9066 MHz
- ECC compatibility: Non-ECC
- supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slot type: DIMM
- Maximum internal memory: 192 GB
- Memory channels: Dual channel
- Supported memory clock speeds: 9066 MHz
- Unbuffered memory: Yes
- Wi-Fi standard: Wi-Fi 7 (802.11be)
- Ethernet: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
- Wifi: Yes
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- Bluetooth version: 5.4
- Number of CPU fan connectors: 2
- Number of water pump connectors: 1
- Number of RGB LED pin headers: 3
- Number of EPS power connectors (8-pin): 2
- Number of temperature sensor headers: 1
- USB 2.0, connectors: 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX power connector (24 pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 5
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Front panel connector: Yes
- EPS power connector (8-pin): Yes
- 12V electrical connector: Yes
- Connector for RGB LED strips: Yes
- TPM connector: Yes
- Number of COM connectors: 1
- Chassis intrusion connector: Yes
- Line input: Yes
- USB 2.0: 1
- USB 3.2 Gen 1 (3.1 Gen 1): 0
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 6
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type C: 0
- Ethernet LAN ports (RJ-45): 2
- WiFi-AP antenna connector: 2
- VGA (D-Sub) ports: 0
- HDMI ports: 1
- Number of DVI-D ports: 0
- HDMI version: 2.1
- DisplayPort: 1
- DisplayPort version: 2.1
- Headphone jack: 1
- Number of Thunderbolt ports: 3
- RAID Support: Yes
- Number of supported storage units: 9
- Supported storage disk interfaces: M.2, SATA III
- Supported storage drive types: HDD & SSD
- RAID levels: 0, 1, 5, 10
- Number of HDDs supported: 4
- PCI Express x16 (Gen 5.x) slots: 2
- 1st M.2 largest key size: 22110
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation: 4.0
- 3rd M.2 largest key size: 2280
- 3rd M.2 highest PCI Express generation: 4.0
- 4th M.2 largest key size: 2280
- 4th M.2 highest PCI Express generation: 4.0
- 5th M.2 largest key size: 2280
- 5th M.2 highest PCI Express generation: 4.0
- PCI Express x16 (Gen 4.x) Slots: 1
- Number of M.2 (M) slots: 5
- BIOS types: UEFI AMI
- BIOS, memory size: 256 MB/s
- CMOS clear button: Yes
- Parallel processing support: Not supported
- Maximum resolution: 7680 x 4320 pixels
- Product colour: Black
- Chipset family: Intel
- Chipset: Intel Z890
- Form factor: ATX
- Audio output channels: 7.1 channels
- Sound chip: Realtek ALC1220P
- Power supply: ATX
- Component for: PC
- Width: 305 mm
- Depth: 244 mm
- Antenna included: Yes
- Cables included: SATA
