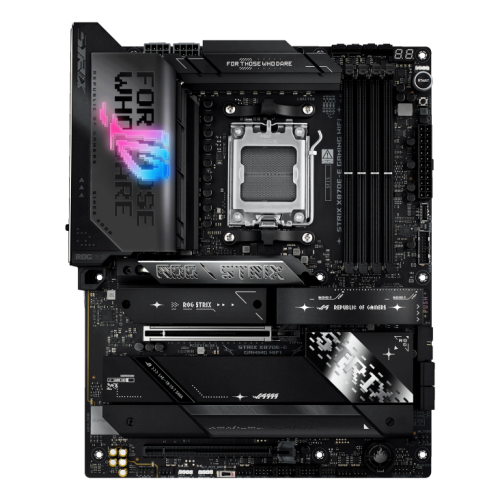

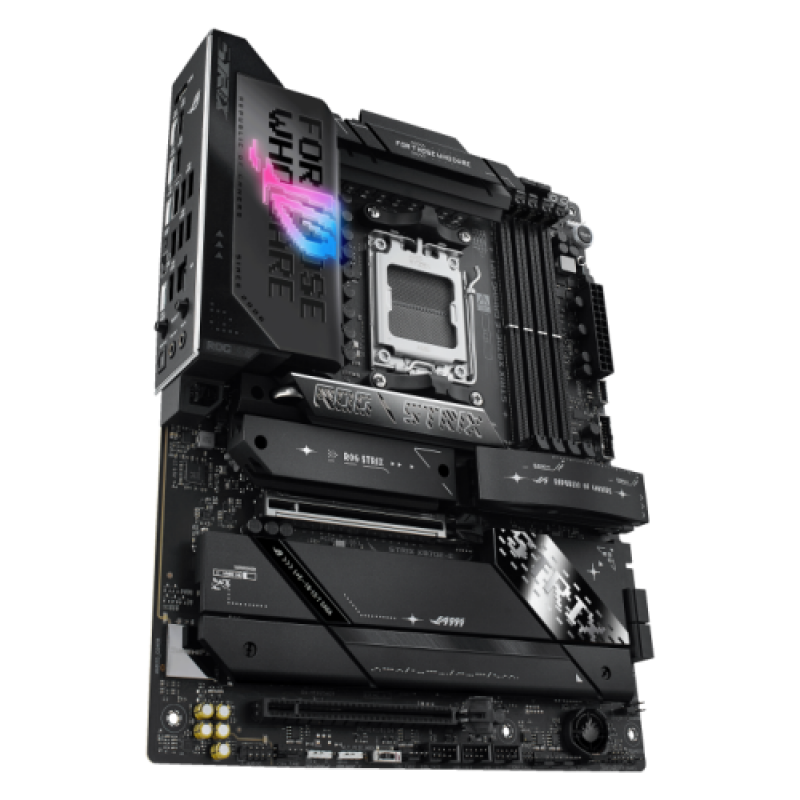

ASUS ROG STRIX X870E-E GAMING WIFI BOARD,AMD,AM5,X870,4DDR5,ATX
Specs:
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Supported processor sockets: AM5 socket
- supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slot type: DIMM
- Maximum internal memory: 192 GB
- Memory channels: Dual channel
- ECC: Yes
- No ECC: Yes
- Unbuffered memory: Yes
- Wi-Fi standard: Wi-Fi 7 (802.11be)
- Ethernet: Yes
- Ethernet interface type: 5 Gigabit Ethernet
- Wifi: Yes
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- Bluetooth version: 5.4
- USB 3.2 Gen 2x2 connectors: 1
- USB 2.0, connectors: 3
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX power connector (24 pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 5
- 12V electrical connector: Yes
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- USB4 Gen 2x2 ports quantity: 2
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 9
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Ethernet LAN ports (RJ-45): 1
- S/PDIF output port: Yes
- WiFi-AP antenna connector: 1
- HDMI ports: 1
- Headphone jack: 1
- Microphone input: Yes
- RAID Support: Yes
- Number of supported storage units: 9
- Supported storage disk interfaces: M.2, SATA III
- Supported storage drive types: HDD & SSD
- RAID levels: 0, 1, 10, 5
- Number of HDDs supported: 4
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x16 (Gen 4.x) Slots: 1
- Number of M.2 (M) slots: 5
- BIOS types: UEFI AMI
- BIOS, memory size: 256 MB/s
- CMOS clear button: Yes
- Parallel processing support: Not supported
- Chipset family: AMD
- Chipset: AMD X870E
- Form factor: ATX
- Audio output channels: 7.1 channels
- Sound chip: Realtek ALC4080
- Component for: PC
- Supported Windows operating system: Windows 11 x64
- Width: 305 mm
- Depth: 244 mm
- Cables included: SATA
