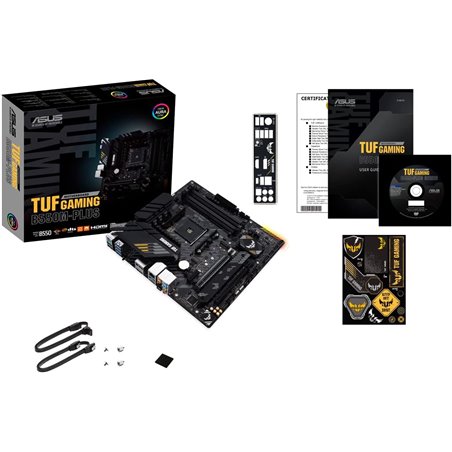

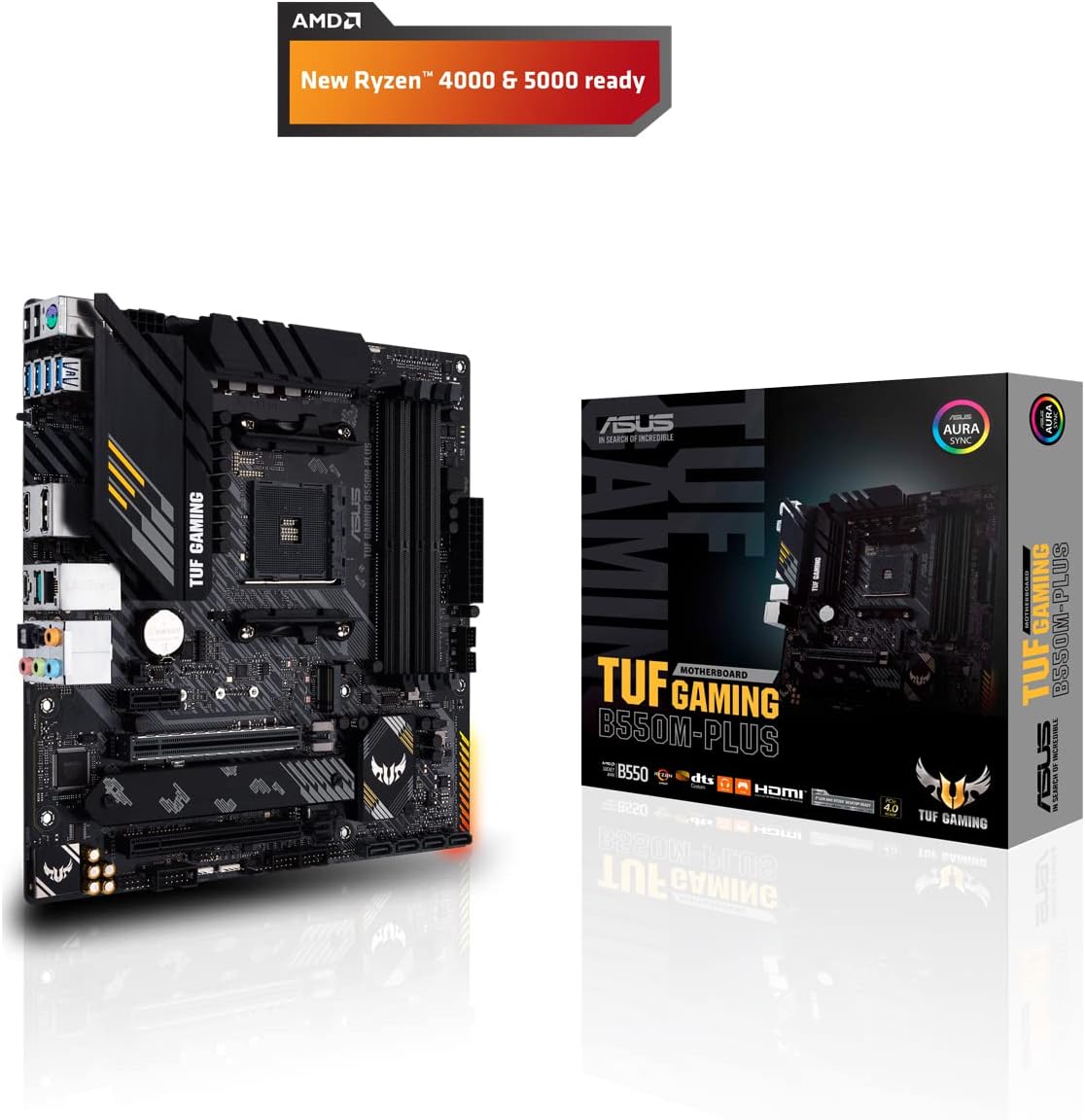

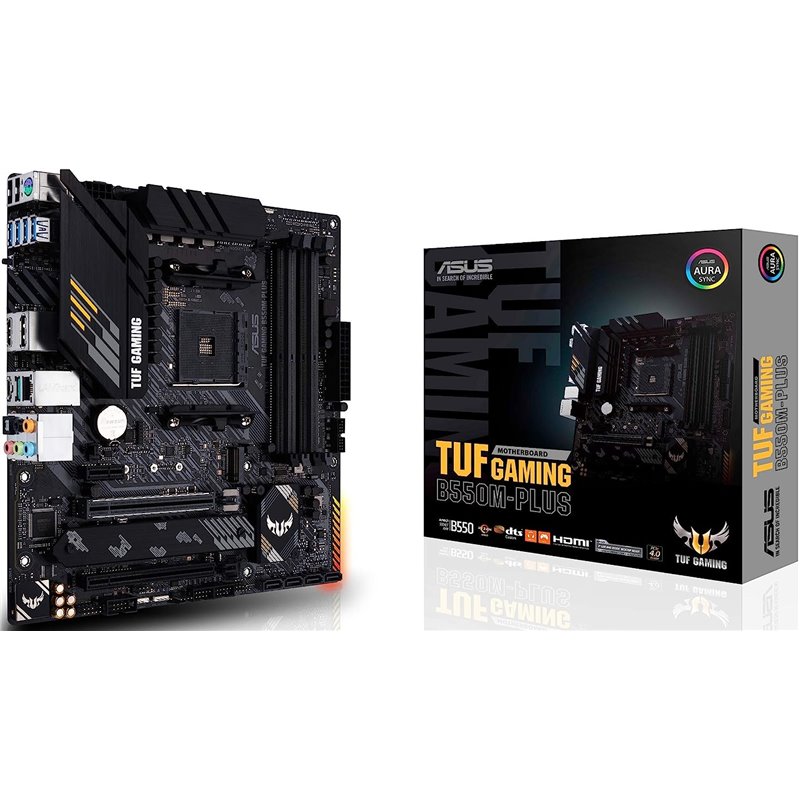

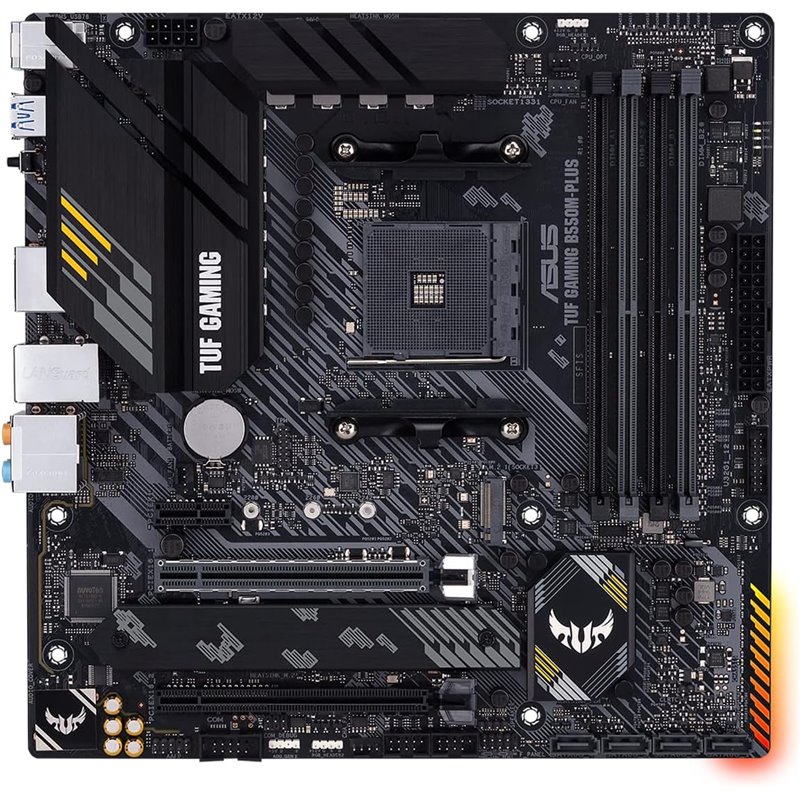

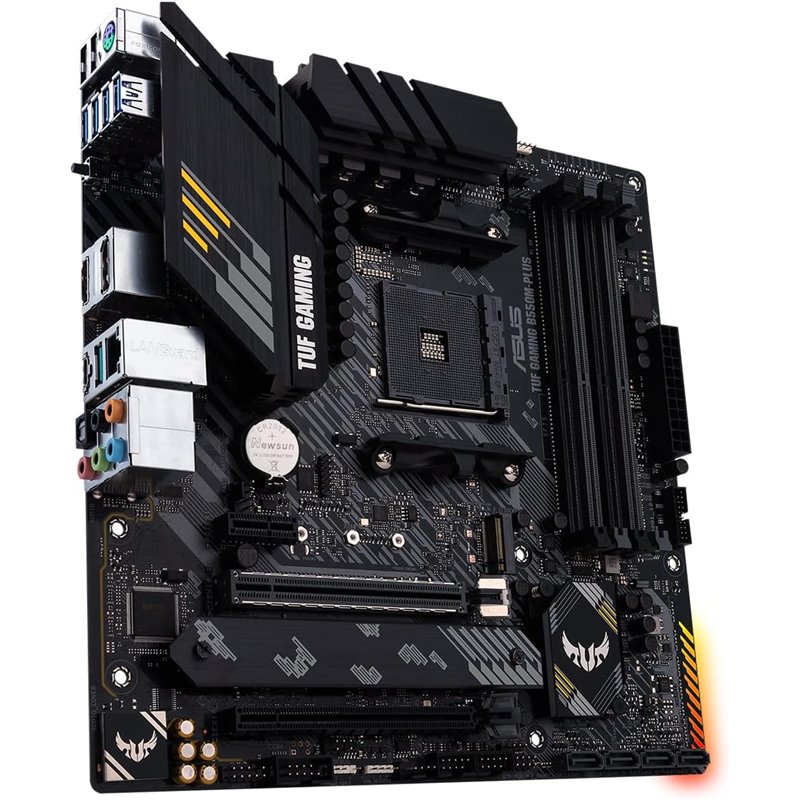

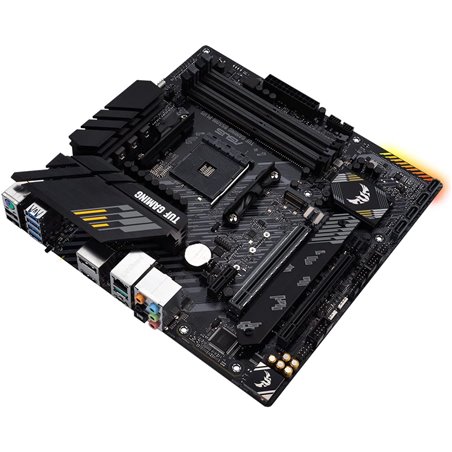

Asus TUF B550M-PLUS Gaming (AM4)

€135.27
without tax €135.27
90MB14A0-M0EAY0
4718017623544
New product
Do not wait any longer to enjoy your Asus TUF B550M-PLUS Gaming (AM4) at the best price in your store GreaTecno Read more...

  •   Up to 3 years warranty
  •   100% secure payment
  •   14 days return
Whatsapp Share with your friends

Buy it now and receive it between Fri 5 and Thu 11 with GLS o Correos Express España €16.45

Technical details

Format Micro ATX
Chipset AMD B550
Number of PCI Express slots 3
Component for PC / server
Processor family AMD
Supported hard drive interfaces M.2 PCIe, M.2. SATA, Serial ATA III
Number of supported processors one
Number of DIMM slots 4

Processor

Processor socket Socket AM4
Processor family AMD Ryzen

Memory

Memory slots 4x DIMM
Type of memory slots DIMM
Maximum internal memory 128 GB
Supported memory module capacities 32 GB
No ECC Yes
Unbuffered memory Yes
Memory channel support Dual
supported memory types DDR4-SDRAM
Supported memory clock speeds 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz

Video

Maximum resolution 4096 x 2304 pixels

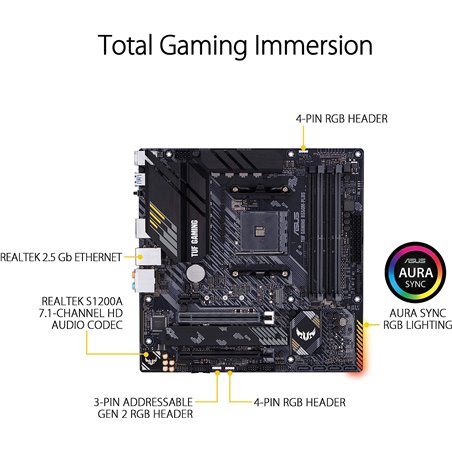

Audio

Audio output channels 7.1
Audio system Realtek ALC S1200A

Expansion slots

PCI Express configurations 1 x1, 2 x16
Number (total) of PCI Express slots 3
PCI Express x1 slots one
X16 PCI Express slots two
PCI Express slot version 3.0, 4.0

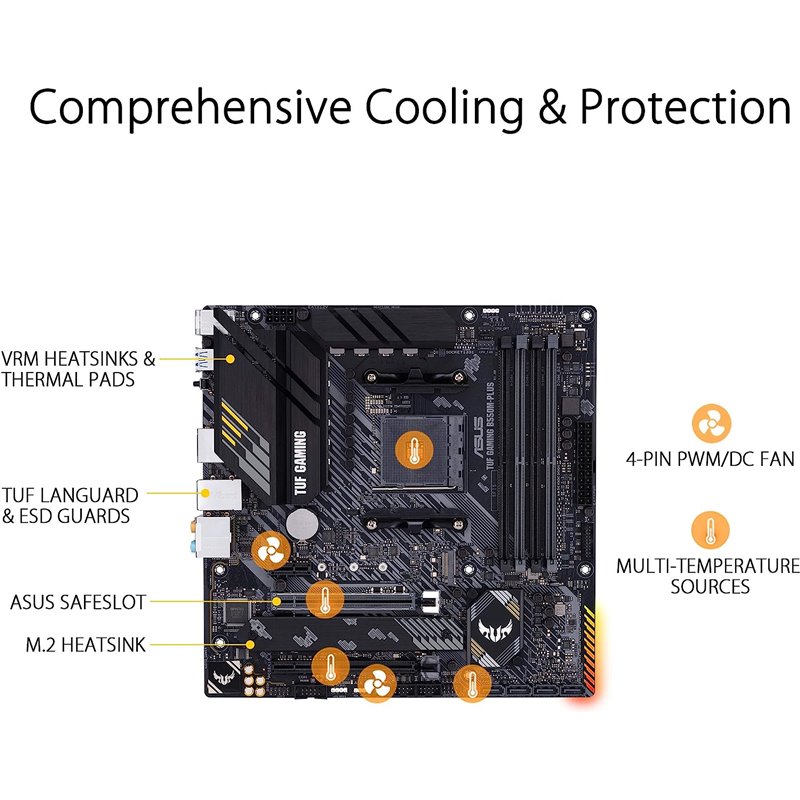

Internal I / O

EPS power connector (8-pin) Yes
CPU fan connector Yes
ATX power connector (24-pin) Yes
Front panel audio connector Yes
Jumper Clear CMOS Yes
Fan connector Yes
TPM connector Yes
USB 2.0 connectors two
USB 3.2 connectors one
Number of chassis fan connectors two
Number of COM connectors one
Number of SATA connectors 3 4
M.2 connectors two
Connectors RGB / LED Strips two

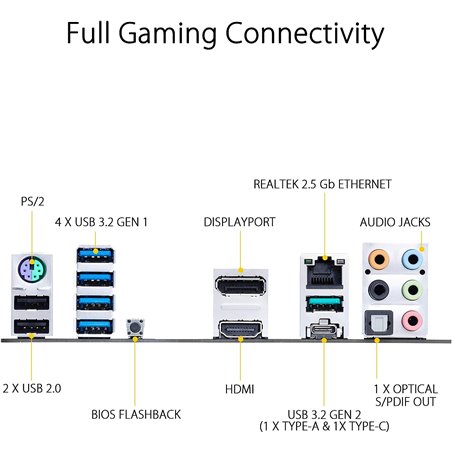

Rear panel I / O ports (Input / Output)

Speaker, headphone, output jack 5
DisplayPorts quantity one
Number of HDMI ports one
USB 2.0 ports quantity two
USB 3.2 ports quantity 5
USB Type-C ports quantity one
Ethernet (RJ-45) one
Microphone, input jack Yes
Mouse port - PS / 2 keyboard one
S / PDIF out port one

Storage controllers

RAID levels 0, 1, 10

Net

Network connection Yes
LAN controller Realtek RTL8125B
Ethernet Yes
Wifi No

BIOS

BIOS, memory size 256 MB
BIOS types UEFI AMI
