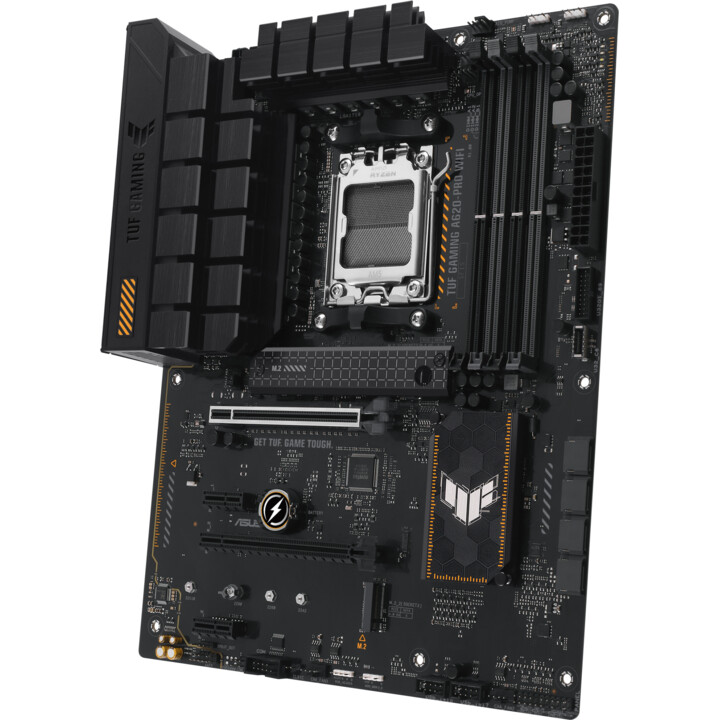

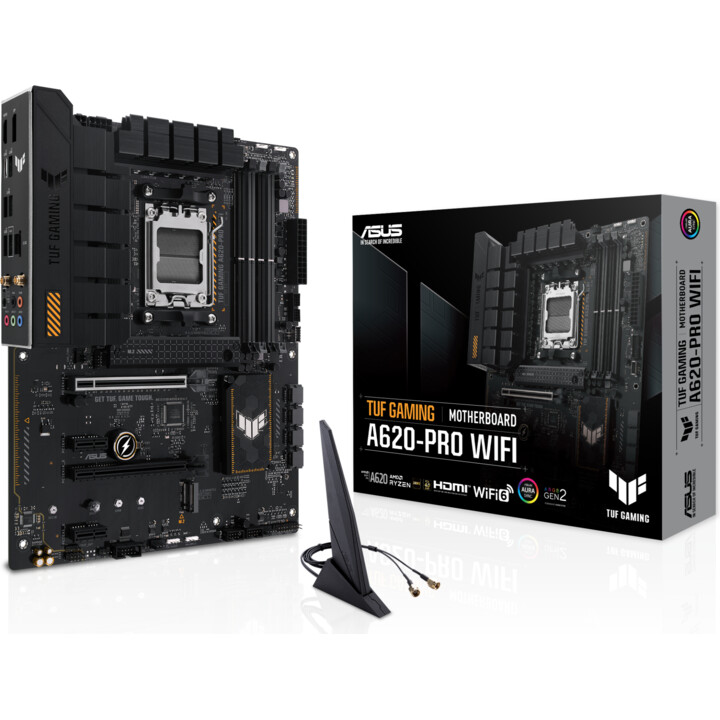

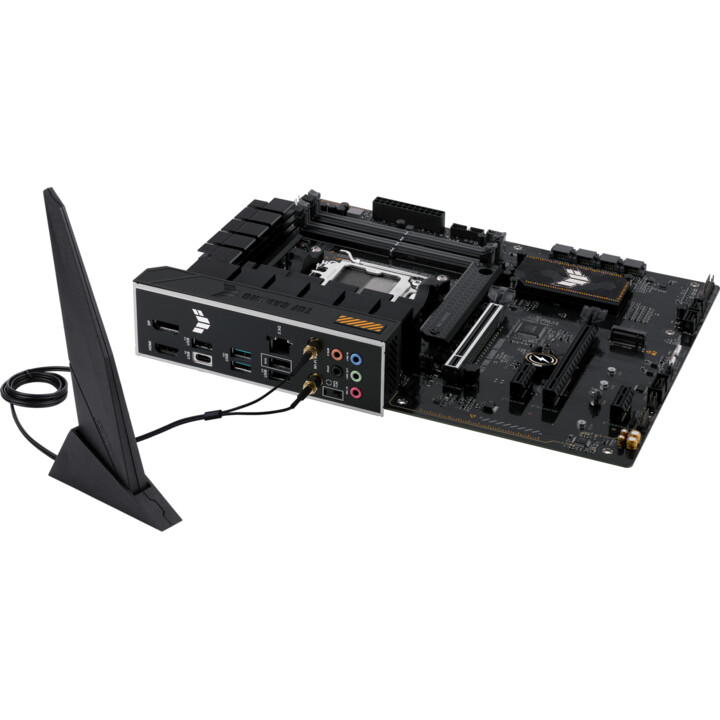

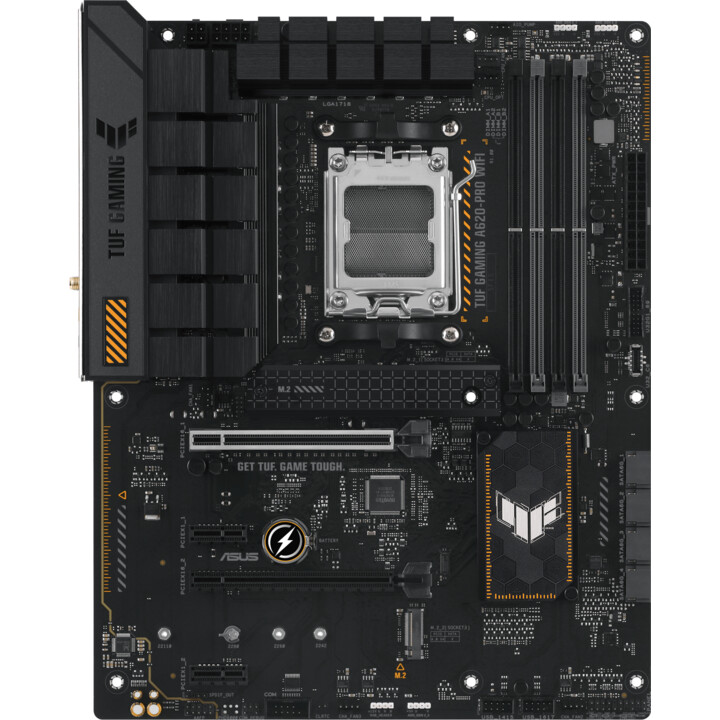

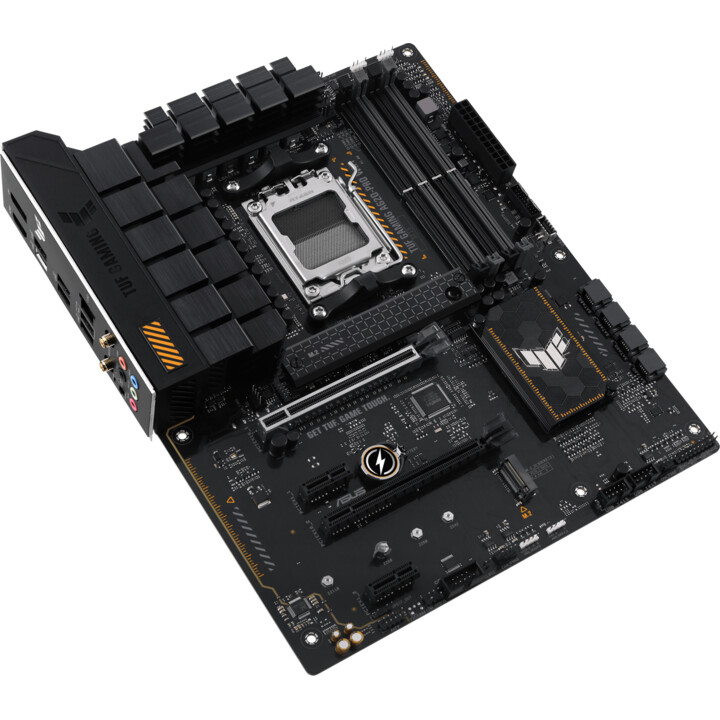

Asus Tuf A620-PRO Gaming WiFi AM5 Black

Processor

• AMD AM5 Socket for AMD Ryzen 7000 series desktop processors

Chipset

• AMD A620

Memory

• 4 DIMM slots, max. 192GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/
• 5400(OC)/5200/5000/4800 ECC and non-ECC, unbuffered memory*
• Dual-channel memory architecture supports AMD EXTended Profiles for Overclocking (EXPO?)
• OptiMem II

Expansion Slots

• 1 PCIe 4.0 x16 slot (supports x16 mode)
• 1 PCIe 3.0 x16 slot (supports x2 mode)**
• 2 PCIe 3.0 x1 slots

Graphics

• 1 display port
• 1 HDMI port

Storage

• M.2_1 slot (clM), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (clM), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• 4 SATA 6Gb/s ports

USB

• 2 USB 3.2 Gen 2 (10G) ports (2 x Type-A)
• 1 USB 3.2 Gen 1 (5G) port (1 x USB Type-C)
• 3 USB 2.0 ports (3 x Type-A)
• 1 USB 3.2 Gen 1 (5G) connector (USB Type-C compliant?)
• 1 USB 3.2 Gen 1 (5G) connector supports 2 additional USB 3.2 Gen 1 ports
• 2 USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• High definition audio CODEC with Realtek 7.1 surround sound
• Supports jack detection, multi-streaming, front panel jack re-tasking
• Supports playback up to 24-bit/192 kHz
• Audio shielding
• Premium audio capacitors
• Dedicated audio PCB layers

Connectivity and Networking

• 1 x Realtek 2.5 Gb Ethernet
• TUF LANGuard
• Wi-Fi 6
• 1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) compatible with 2.4/5 GHz bands
• Bluetooth v5.3

Internal Connectors

• 1 x 4-pin CPU fan connector
• 1 x 4-pin CPU OPT fan connector
• 1 x 4-pin AIO pump header
• 3 x 4-pin chassis fan connectors
• 1 x 24-pin main power connector
• 1 x 8-pin +12V power connector
• 1 x 4-pin +12V power connector
• 2 M.2 (clM) slots
• 4 SATA 6 Gb/s ports
• 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C)
• 1 x USB 3.2 Gen 1 (5G) connector supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 connectors supporting 4 additional USB 2.0 ports
• 3 x Gen 2 addressable headers, 1 header
• Aura RGB
• 1 x Clear CMOS header
• 1 x COM port header
• 1 x Front panel audio header (AAFP)
• 1 x S/PDIF output connector
• 1 x 20-3 pin system panel header with chassis intrusion function

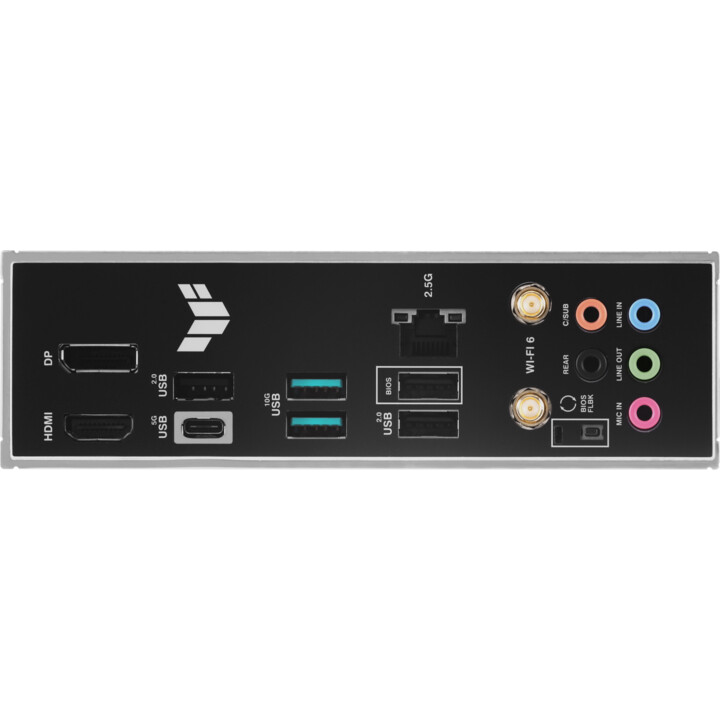

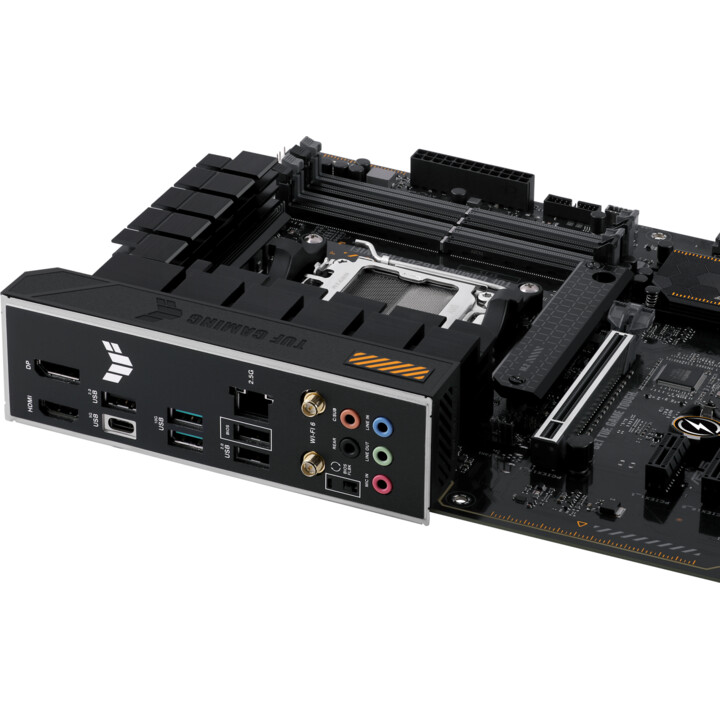

Rear Connectors

• 2 USB 3.2 Gen 2 (10G) ports (2 x Type-A)
• 1 USB 3.2 Gen 1 (5G) port (1 x USB Type-C)
• 3 USB 2.0 ports (3 x Type-A)
• 1 display port
• 1 HDMI port
• 1 Wi-Fi module
• 1 Realtek 2.5 Gb Ethernet port
• 5 audio jacks
• 1 x BIOS FlashBack button

Form Factor

• ATX (30.5 cm x 24.4 cm)
