LevelOne GVT-2016, RJ45 to SFP Gigabit Media Converter, 802.3bt 90W PoE PSE, Single-Port End-Span

The LevelOne GVT-2016 is a Gigabit media converter with an RJ45 to SFP interface and 802.3bt PoE++ output up to 90W, enabling seamless extension of Gigabit Ethernet and high-power PoE over fiber for industrial or long-distance deployments without electrical interference.

Performance Features

• Supports auto-negotiation of 10/100/1000 Mbps on the copper port with full/half-duplex modes, an SFP slot compatible with various Gigabit fiber modules (multi/single mode up to 120 km), and IEEE 802.3bt Type 4 PoE passthrough delivering up to 90W (PD input required) to power high-demand remote devices such as PTZ cameras or Wi-Fi 6 APs over extended fiber links.

• Equipped with link fault pass-through, loop detection, and VLAN support for reliable network extension.

Connectivity and Features

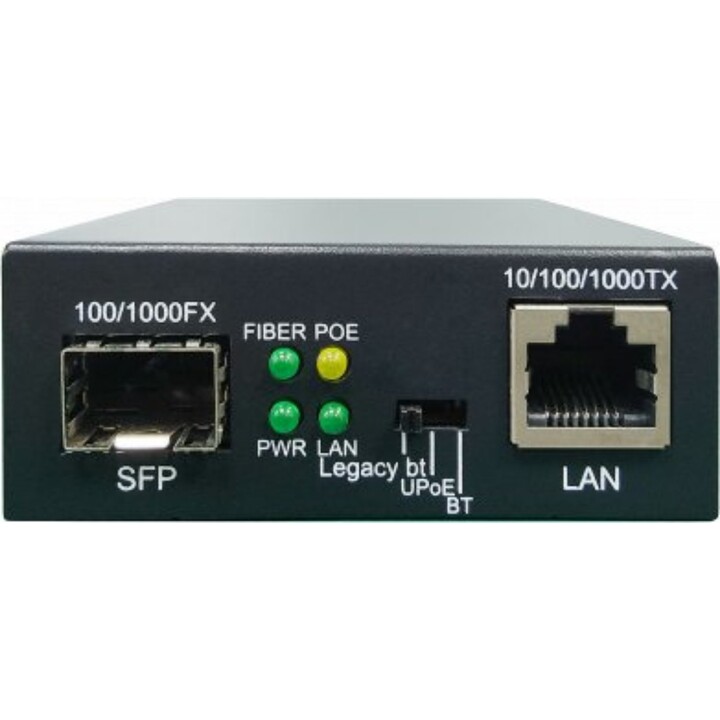

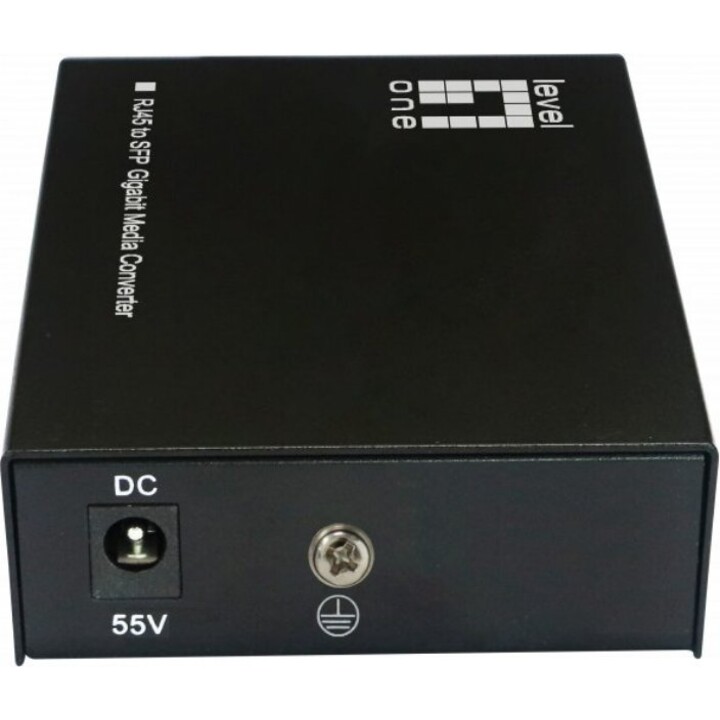

• Single Gigabit RJ45 copper port (MDI/MDI-X auto-crossover), SFP slot for flexible fiber connectivity, terminal block for redundant DC 48-57V power input (power adapter optional), and DIP switches for easy mode configuration including PoE reset and fiber priority.

Design and Efficiency

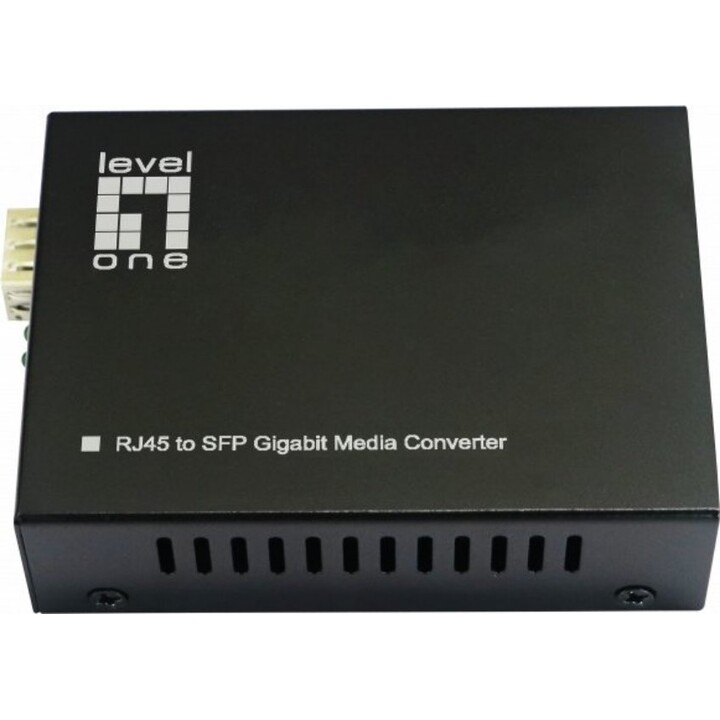

• IP40 metal enclosure (30x70x95mm, 0.185kg) mountable on DIN rail or wall, designed to operate from -40°C to 75°C with 5-95% relative humidity tolerance, fanless, with LED indicators for power/link/PoE status, ensuring silent and robust performance in harsh industrial environments.
