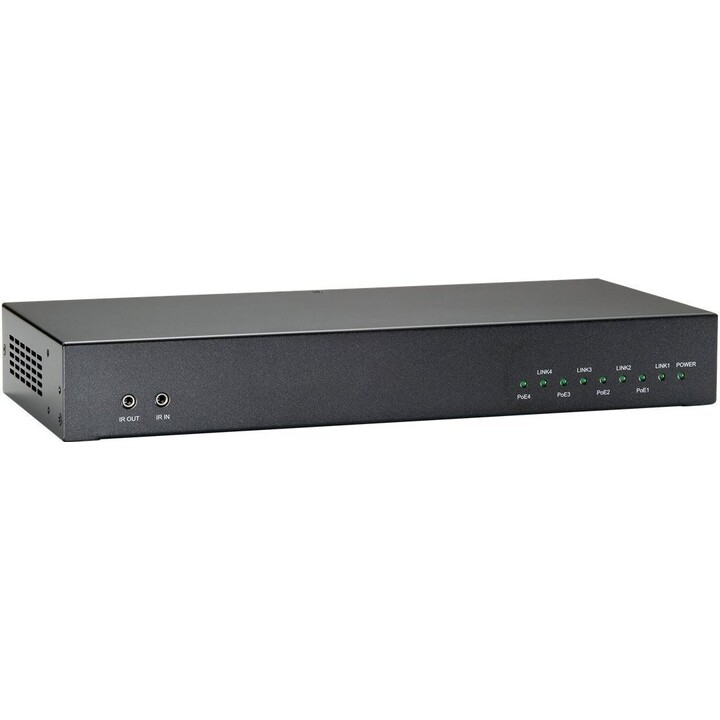

HVE-6701T, HDMI over IP PoE (T) Transmitter, 150 meters

Key Features

• Maximum Resolution: 1920x1080p@60Hz (Full HD) with HDMI 1.3b and HDCP, supports 720p/1080i/p and uncompressed embedded audio, bandwidth up to 10.2 Gbps.

• Connectivity: 1x HDMI input, 1x Gigabit RJ-45 for multicast IP streaming, 3.5mm IR (20-60 KHz), RS-232 for remote control, and Mini USB-B for configuration.

• PoE Power Supply: IEEE 802.3af/at (36-57V) or external 12V DC, maximum consumption 8W; enables simplified power in rack or wall installations.

• Scalable Distribution: point-to-point or point-to-multipoint topologies (up to 99+ receivers via managed VLAN/IGMP switches), no signal degradation.

• Advanced Control: RS-232 passthrough to manage remote displays, DIP switches for ID group switching, and free software utility for complex matrices.

• Compact Dimensions: 114 x 140 x 28 mm, weight 800 g, rack or wall mount; operating temperature 0-50°C, humidity 10-85% RH.

• LED Indicators: Power, Link, Data for quick diagnostics; plug-and-play with EDID/HDCP bypass support for universal compatibility.

• Included Accessories: DC adapter, IR cable, quick guide; CE/FCC certifications for professional use in industrial environments.
