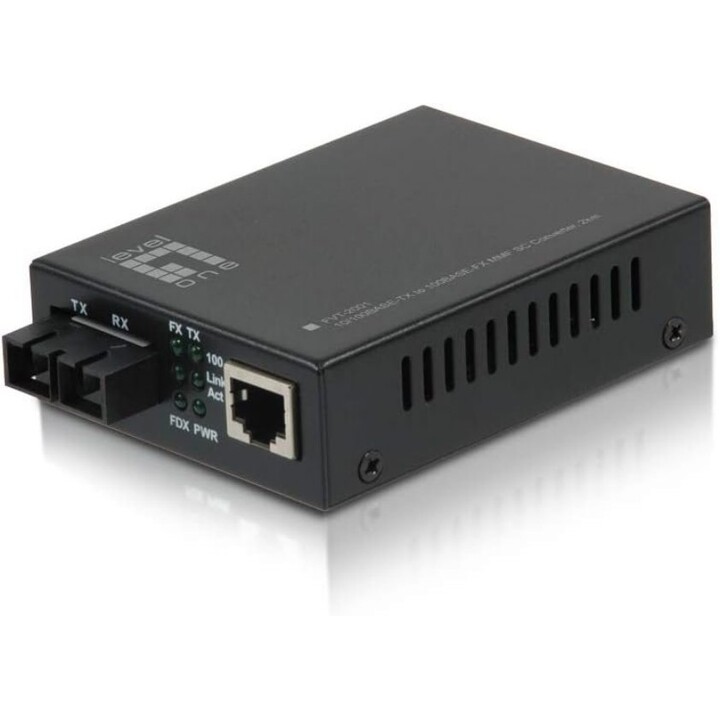

Level One FVT-2001 10/100Base-TX RJ45 to 100Base-FX MMF SC Fiber Media Converter 2km 1310nm LFP DIP Switches

LevelOne FVT-2001 RJ45 to SC Fast Ethernet Media Converter - Black (4015867225462)

The LevelOne FVT-2001 is a professional-grade media converter designed to seamlessly convert data between 10/100Base-TX copper interfaces and 100Base-FX optical fiber. This device extends the reach of Fast Ethernet networks over multimode fiber optic cabling up to distances of 2 kilometers, bypassing the 100-meter limitation of standard category copper cables. It features an SC connector for fiber termination and an RJ45 port for local network connectivity. The converter incorporates Link Fault Pass-Through (LFP) technology, allowing it to monitor the link status of both ports; if a link fails, the device automatically disables the corresponding link to notify the remote management system. Built for long-term operational reliability, the FVT-2001 can operate as a standalone unit or be integrated into a specialized rack-mount chassis for high-density network deployments.

Technical Specifications

* Model: FVT-2001

* Part Number: 4015867225462

* Standards: IEEE 802.3, 802.3u, 802.3x

* Copper Interface: 1x 10/100Base-TX RJ45

* Fiber Interface: 1x 100Base-FX SC (Multimode)

* Wavelength: 1310 nm

* Maximum Distance: 2 km

* Transmission Mode: Full Duplex / Half Duplex (Auto-negotiation)

* LEDs: PWR, Link/Act, FDX

* Power Input: 5V DC, 1A (external power adapter)

* Power Consumption: < 2.5W

* Operating Temperature: 0°C to +50°C

* Dimensions: 94 x 70 x 26 mm

Main Features

* High-Efficiency Media Conversion: Provides a transparent bridge between electrical and optical signals, enabling the integration of high-bandwidth fiber optic backbones into existing Ethernet infrastructure.

* Integrated Link Fault Pass-Through (LFP): Includes an intelligent diagnostic mechanism that ensures network administrators are immediately alerted in case of a physical link failure across the media span.

* Industrial-Grade Signal Integrity: Uses 1310 nm multimode optics to maintain low attenuation and high signal-to-noise ratios over extended transmission distances of 2 kilometers.

* Ready-to-Deploy Mechanical Design: Designed for quick installation with auto-MDI/MDI-X support on the copper port, eliminating the need for specialized crossover cabling.

* Flexible Chassis Compatibility: Features a compact metal housing that supports both standalone desktop operation and seamless integration into a 14-slot media converter rack for centralized management.
