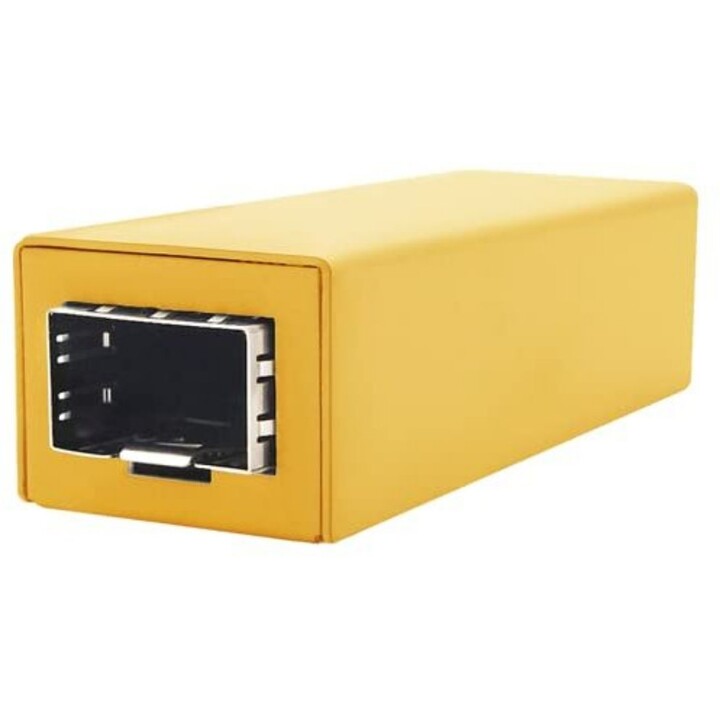

LevelOne GVT-1001 Ultra-Slim RJ45 to SFP Gigabit Media Converter USB Powered

LevelOne GVT-1001 Ultra-Slim RJ45 to SFP Gigabit Media Converter (4015867229293)

The LevelOne GVT-1001 is a professional-grade ultra-slim media converter designed for high-speed transition between 10/100/1000Base-T copper networks and 1000Base-X fiber optic networks. This compact networking device features an open SFP slot, allowing the use of various fiber optic transceivers depending on the required distance and cable type. Designed for space-constrained environments, its ultra-thin casing enables installation in narrow enclosures or integrated equipment racks. The GVT-1001 supports Jumbo Frames up to 10KB and includes a built-in watchdog function that automatically restarts the device if a system lock-up is detected, ensuring maximum network uptime. It can be powered via a standard USB port or the included power adapter, making it an ideal portable solution for field technicians and mobile workstations requiring reliable fiber connectivity.

Technical Specifications

* Model: GVT-1001

* EAN: 4015867229293

* Interface: 1 x RJ45 (10/100/1000Base-T), 1 x SFP (1000Base-X)

* Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z

* Data Rate: 1.25 Gbps (Gigabit Ethernet)

* Power Input: 5V DC, 1A (USB or AC adapter)

* Power Consumption: < 1.2 W

* Jumbo Frame Support: 10 KB

* Watchdog Function: Built-in automatic restart

* Operating Temperature: -20°C to 70°C

* Operating Humidity: 5% to 95% (non-condensing)

* Dimensions: 79 x 23.3 x 18.5 mm

* Certifications: CE, UKCA, RoHS

Main Features

* Ultra-Slim Portability: Specifically designed with a minimalist footprint and lightweight chassis, allowing the converter to be easily carried in laptop bags or deployed in high-density network cabinets.

* Versatile Power Options: The converter is powered via a standard USB 2.0/3.0 port, facilitating fiber optic connections in locations without dedicated power outlets.

* Intelligent Monitoring System: Advanced hardware monitoring detects operational lock-ups and triggers an automatic power cycle, reducing the need for manual on-site intervention.

* High-Performance Throughput: Optimized for low-latency data transmission and high-bandwidth applications, it supports full-duplex Gigabit speeds and large data packets for efficient file transfers.

* Plug-and-Play Integration: The device uses Auto-MDI/MDIX and auto-negotiation on the copper port for hardware synchronization and immediate deployment.
