Z ALLNET Media Converter 10BASE-T/10BASE2 to BNC ALL0500v3 DC 12VDC

Z ALLNET Media Converter 10BASE-T/10BASE2 to BNC ALL0500v3 DC 12VDC

ALLNET
Reference: ALL0500v3
Condition: New
€194.38
VAT included
Without tax: €160.64

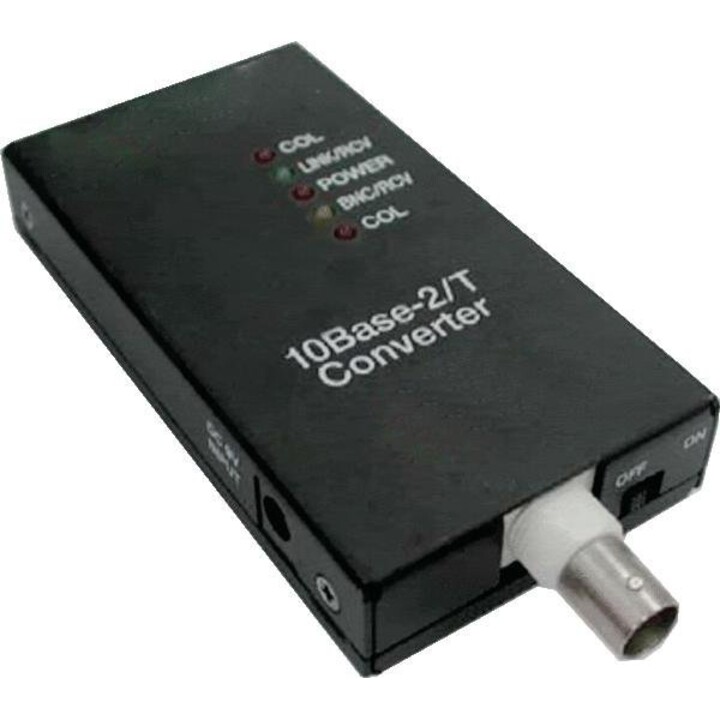

The Z ALLNET Media Converter ALL0500v3 enables seamless conversion between 10Base-T and 10Base2 networks, supporting RJ45 UTP to BNC coaxial RG58 connections up to 185m. Featuring configurable terminator modes, Auto-MDI RJ45 compatibility, diagnostic LEDs, and a low-power 12V DC supply, it supports up to 30 nodes with industrial-grade thermal tolerance from 0-55°C.
Share


Buy it now and receive it between Thu 1 and Wed 7 with GLS o Correos Express España €19.90

Up to 3 years warranty 100% secure payment 14 days return

Key features

  • 10Base-T ↔ 10Base2 conversion: RJ45 UTP to BNC coaxial RG58 (185m max.).

  • Configurable modes: 50Ω terminator (end bus) or inline (intermediate).

  • Auto-MDI RJ45: Compatible 10 Mbps hubs/switches without crossover cables.

  • Diagnostic LEDs: Power/Link/Collision for visual troubleshooting.

  • 12V DC power supply: Standard jack, power consumption <1W, external power supply included.

  • Coaxial bus topology: Up to 30 nodes, IEEE 802.3 compliant.

  • Thermal range: 0-55°C operation, industrial desktop design.

  • Protections: Anti-loop, selectable automatic termination.

  • Brand
    ALLNET
  • Reference
    ALL0500v3
  • In stock
    20 Items
  • Condition
    New
  • MPN
    ALL0500v3

Brand ALLNET
Country Germany
Address of origin Maistrasse 2, 82110 Germering, Germany
EU responsible person ALLNET GmbH Computersysteme
Address Maistrasse 2, 82110 Germering, Germany
Email [email protected]
Phone +49 89 89422222
