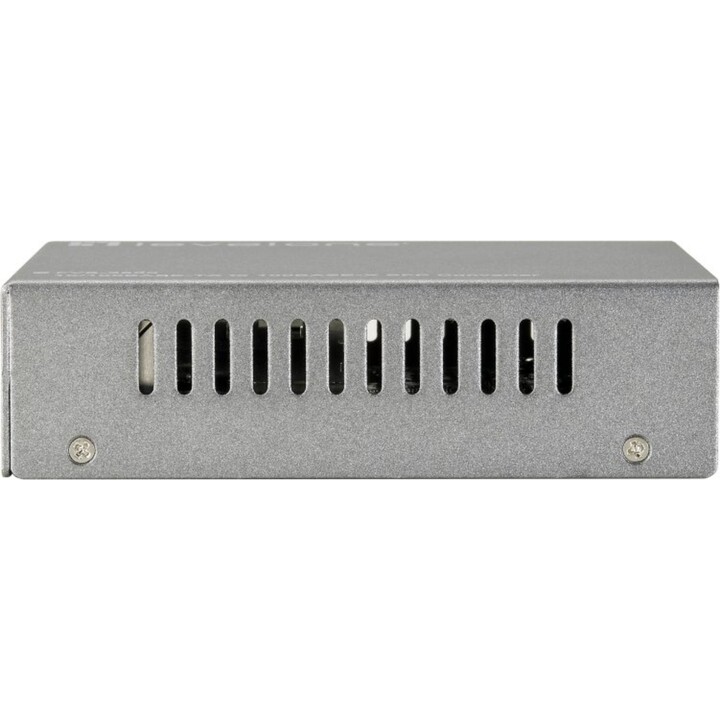

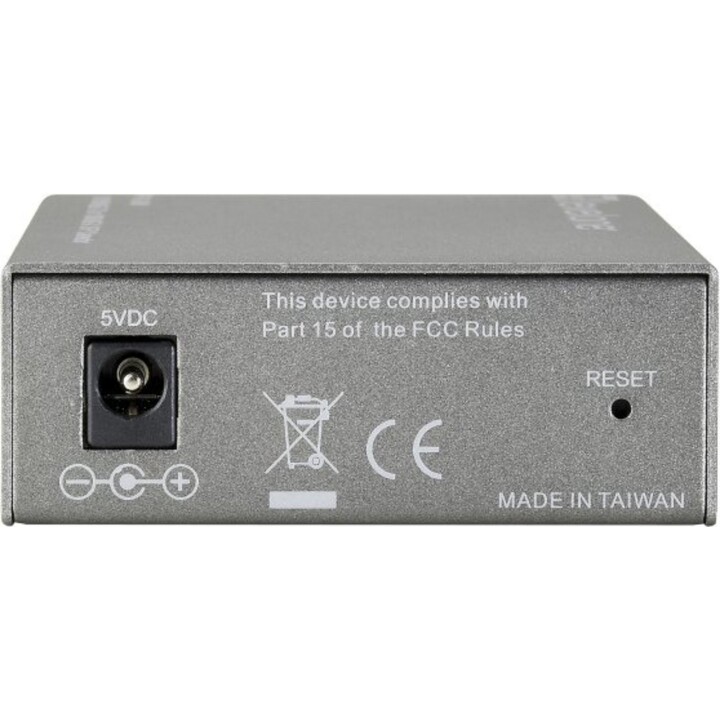

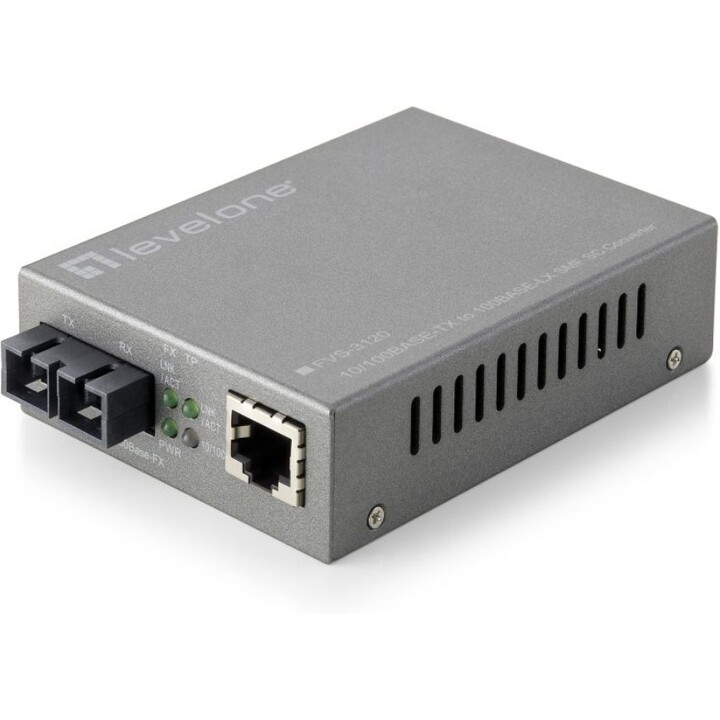

LevelOne FVS-3120 Web Smart Media Converter, 10/100Base-TX to 100Base-LX Single-Mode Fiber
Reference:
FVS-3120
EAN:
4015867160183
Condition:
New
Price:
€199.73
VAT included
Without tax:
€165.07
The LevelOne FVS-3120 is a web-smart media converter that connects 10/100Base-TX Ethernet to 100Base-LX single-mode fiber, extending network links up to 20km via SC connector. It supports IEEE 802.3u full-duplex, VLAN tagging, jumbo frames, HTTP web management, and SNMP monitoring. Features include 1x RJ45 UTP port, 1x SC fiber port, flow control, and DIP switch configuration. Compact and energy-efficient with DIN-rail mount and FCC/CE compliance.
LevelOne FVS-3120 is a web-smart 10/100Base-TX to 100Base-LX single-mode fiber media converter extending Ethernet links up to 20km via SC connector for reliable long-distance network connectivity.
Performance Specs
-
Supports IEEE 802.3u 100Mbps full-duplex, VLAN/Q-in-Q tagging, jumbo frames up to 9K, rate limiting, and LLR (Link Loss Return) for fault detection.
-
HTTP web management with remote firmware upgrades and SNMP monitoring.
Connectivity & Features
-
1x RJ45 UTP (Cat5 up to 100m) + 1x SC single-mode fibre (1310nm), flow control (802.3x), and DIP switch for basic config.
Design & Efficiency
-
Compact desktop DIN-rail mount (26.2x70.3x94mm), 5V DC/1.5W low power, 0-50°C operation with FCC/CE compliance.
-
Brand
-
ReferenceFVS-3120
-
In stock16 Items
-
ConditionNew
-
EAN134015867160183
-
MPNFVS-3120
| Brand | LEVEL ONE |
|---|---|
| Country | Netherlands |
| Address of origin | Krijgsman 1, 1186 DM Amstelveen |
| EU responsible person | Digital Data Communications (DDC) Group |
| Address | Krijgsman 1, 1186 DM Amstelveen |
| [email protected] | |
| Phone | +49 (0) 231 9075 - 0 |
