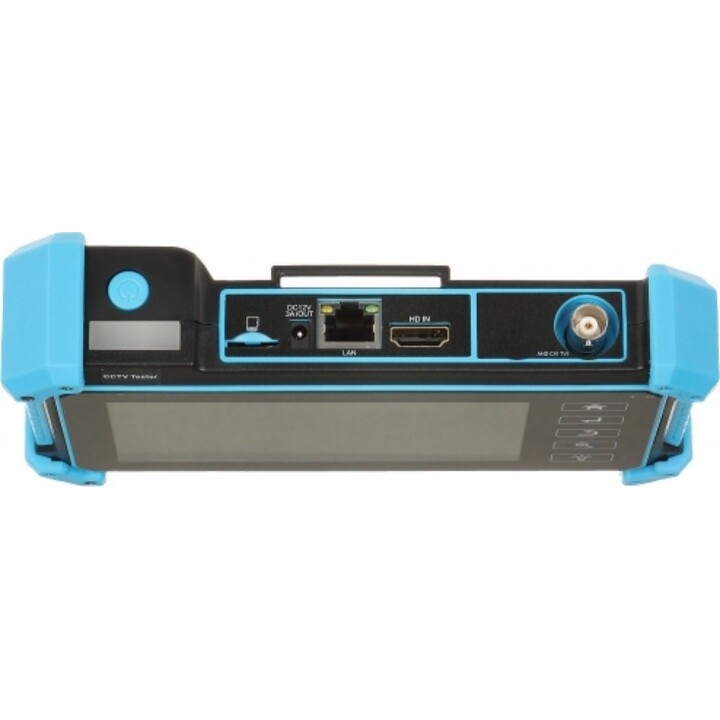

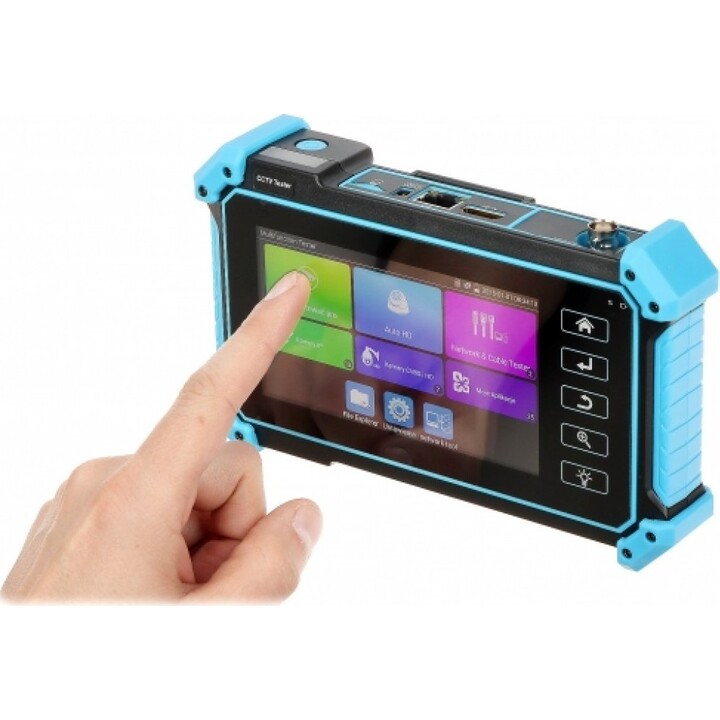

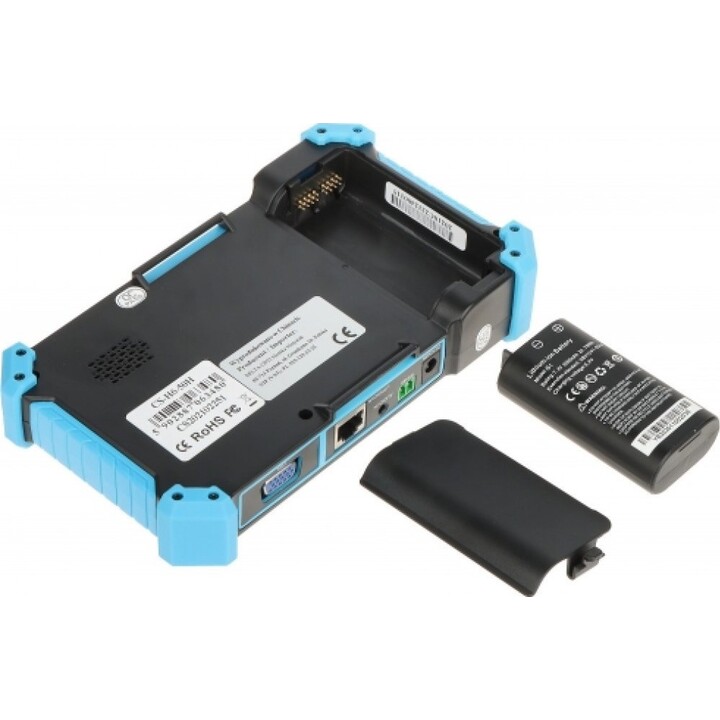

Cs-H6-50H Cctv Multifunction Tester Delta Tester
- 5-inch high-brightness LCD touchscreen
- 4K HDMI input for camera testing
- PoE/PoE++ output (48V/56V, up to 60W)
- PTZ control via RS485/RS232
- Cable tracing and network cable testing
CS-H6-50H CCTV MULTIFUNCTION TESTER DELTA TESTER
The CS-H6-50H is a professional CCTV multifunction tester designed for security system installers and technicians. It features a 5-inch high-brightness LCD touchscreen, 4K HDMI input for testing cameras, and PoE/PoE++ output with up to 60W power. The device supports PTZ control via RS485/RS232, cable tracing, and network cable testing, making it an all-in-one tool for CCTV installation and maintenance.
With built-in network testing capabilities, including IP address scanning, ping, and port detection, the CS-H6-50H simplifies troubleshooting. It also includes a digital multimeter for voltage and resistance measurements, and a signal generator for video testing. The rugged design and long battery life ensure reliable performance in the field.
| Display | 5-inch LCD, 800x480, touchscreen |
| Video Input | 4K HDMI (3840x2160) |
| PoE Output | 48V/56V, IEEE 802.3af/at/bt, up to 60W |
| PTZ Control | RS485/RS232, Pelco-D/P, Samsung, etc. |
| Cable Tracing | Coaxial cable tracing and network cable testing |
| Network Testing | IP scan, ping, port detection, DHCP |
| Multimeter | DC/AC voltage, resistance, continuity |
| Signal Generator | Video signal output (PAL/NTSC) |
| Battery | Li-ion, 7.4V/5000mAh |
| Dimensions | 220 x 130 x 50 mm |
| Weight | 0.8 kg |
-
Brand
-
ReferenceCS-H6-50H
-
In stock3 Items
-
ConditionNew
-
EAN135902887065743
-
MPNCS-H6-50H
| Brand | Dipol |
|---|---|
| Country | Poland |
| Address of origin | Dipol Sp.j., ul. Ciepłownicza 40, 31-587 Kraków, Poland |
| EU responsible person | Dipol Sp.j. |
| Address | ul. Ciepłownicza 40, 31-587 Kraków, Poland |
| [email protected] | |
| Phone | +48 12 644 29 13 |
