Cs-Hb-45W Cctv Multifunction Tester Delta Tester

Cs-Hb-45W Cctv Multifunction Tester Delta Tester

Name: Cs-Hb-45W Cctv Multifunction Tester Delta Tester
Brand: Dipol
SKU: CS-HB-45W
Price: 200.01 EUR
Availability: InStock

Dipol

Reference: CS-HB-45W

EAN: 5902887067501

Condition: New

€200.01

VAT included

Without tax: €165.29

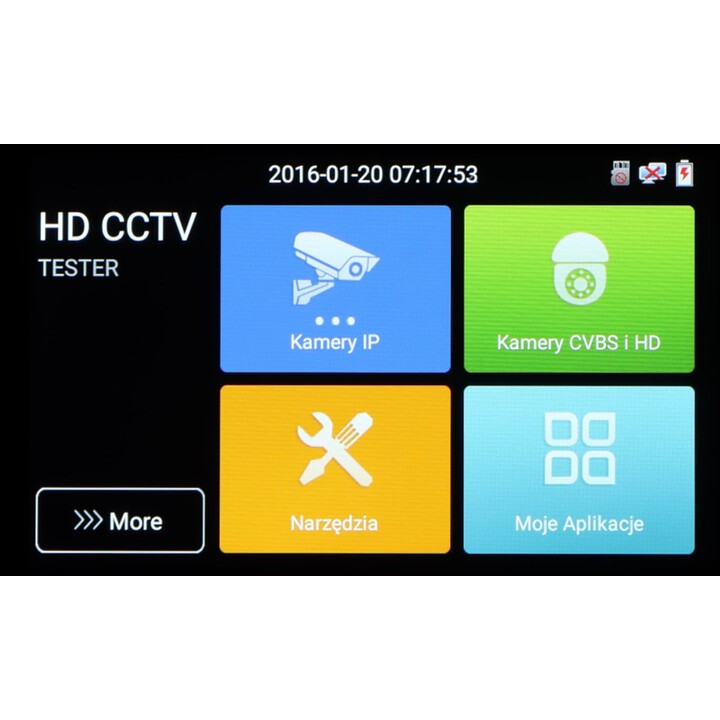

5-inch high-brightness LCD display
Supports PTZ control (RS485/RS232)
Built-in PoE (Power over Ethernet) output
Cable tracing and continuity test
Video signal test (CVBS, AHD, CVI, TVI)

Last items in stock

Buy it now and receive it between Mon 28 and Fri 2 with GLS o Correos Express España €19.90

Up to 3 years warranty

100% secure payment

14 days return

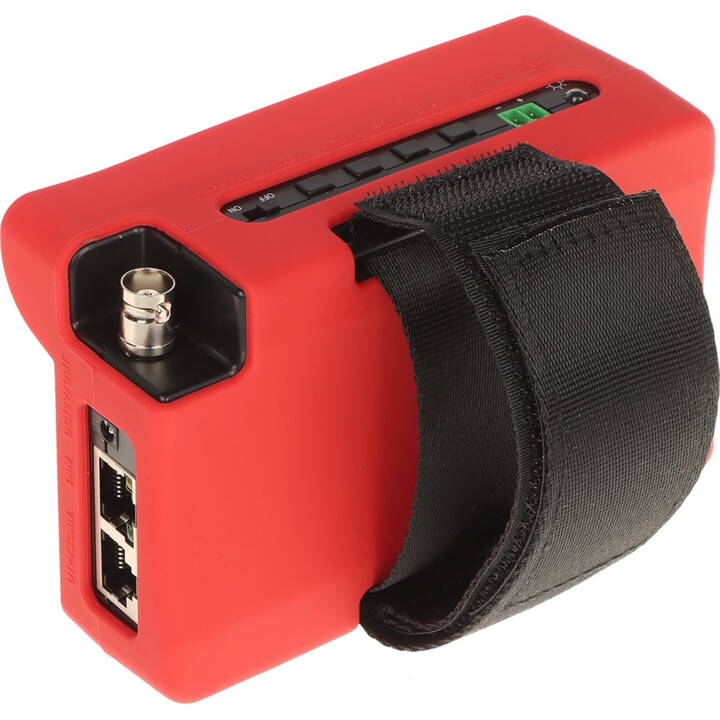

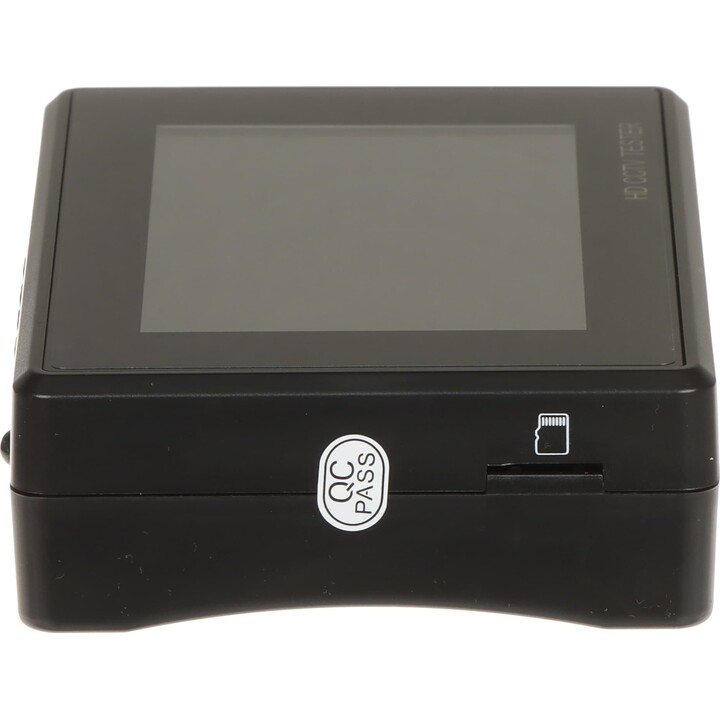

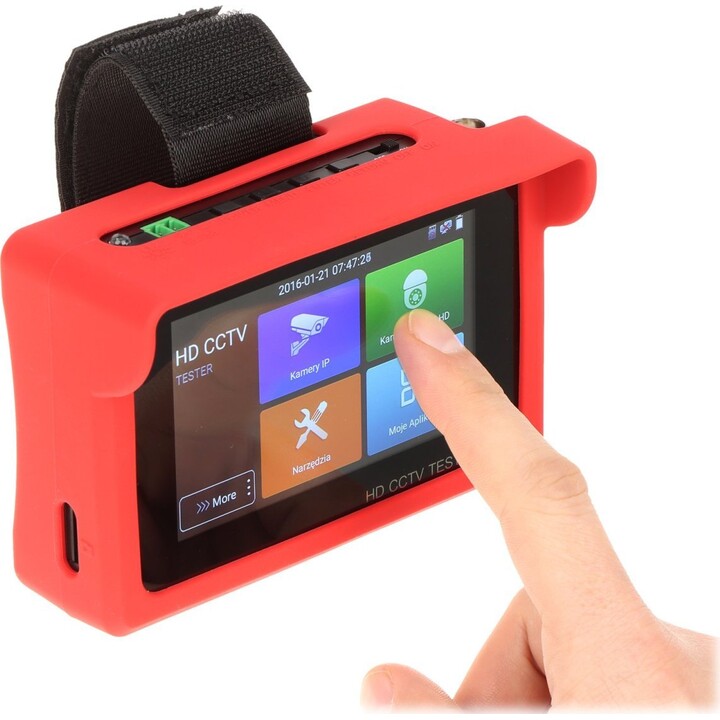

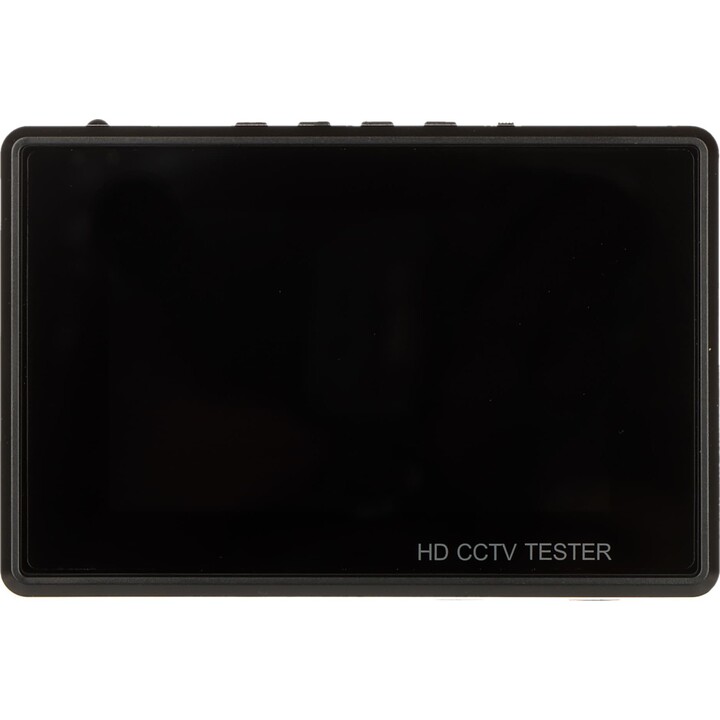

CS-HB-45W CCTV MULTIFUNCTION TESTER DELTA TESTER

The CS-HB-45W is a professional CCTV multifunction tester designed for security system installers and technicians. It features a 5-inch high-brightness LCD screen for clear video preview and menu navigation. The tester supports multiple video formats including CVBS, AHD, CVI, and TVI, making it compatible with a wide range of cameras.

With built-in PoE output, the CS-HB-45W can power cameras directly during installation and testing. It also includes PTZ control via RS485/RS232, cable tracing, and continuity testing to simplify troubleshooting. The device is powered by a rechargeable lithium battery for field use.

Display	5-inch LCD, 800x480 pixels
Video Input	CVBS, AHD, CVI, TVI (up to 8MP)
PTZ Control	RS485/RS232, Pelco-D/P, Samsung, etc.
PoE Output	48V DC, 802.3af/at
Cable Tracing	Coaxial cable and network cable tracing
Continuity Test	Yes
Battery	Rechargeable Li-ion, 7.4V 4000mAh
Dimensions	200 x 110 x 45 mm
Weight	0.6 kg
