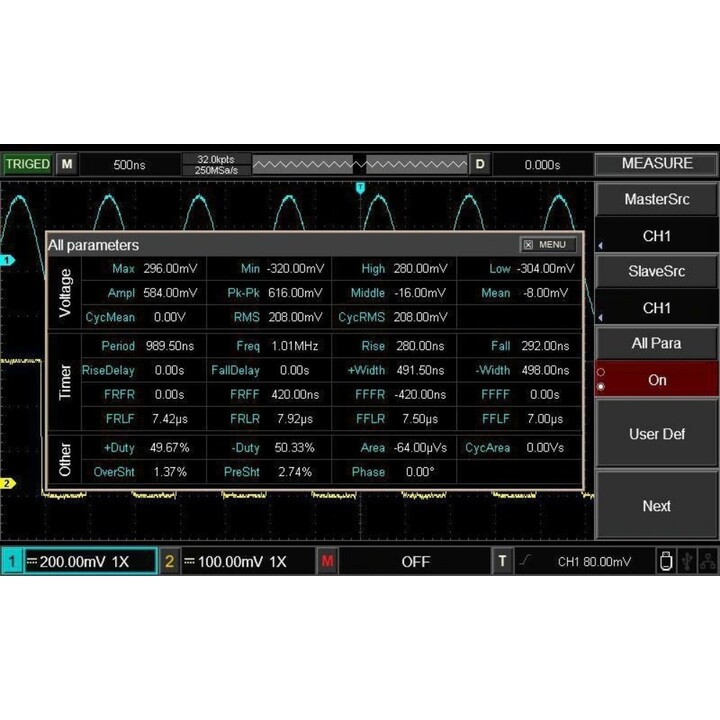

The UNI-T UTD2102CL+ is a dual-channel digital oscilloscope with a bandwidth of 100 MHz and a real-time sampling rate of 1 GS/s. It features a 7-inch TFT LCD display with high resolution for clear waveform viewing. The oscilloscope offers advanced triggering modes, automatic measurements, and waveform math functions, making it suitable for educational, service, and R&D applications.
With USB host and device ports, the UTD2102CL+ allows easy data transfer and remote control via PC software. It includes a built-in FFT function for frequency analysis and supports waveform storage and recall. The compact design and intuitive user interface enhance productivity in various testing scenarios.
| Bandwidth | 100 MHz |
| Channels | 2 |
| Sampling Rate (Real-time) | 1 GS/s |
| Sampling Rate (Equivalent) | 25 GS/s |
| Record Length | 25 kpts per channel |
| Display | 7-inch TFT LCD (800x480) |
| Vertical Sensitivity | 2 mV/div to 10 V/div |
| Timebase Range | 2 ns/div to 50 s/div |
| Trigger Types | Edge, Pulse, Video, Slope, Alternative |
| Connectivity | USB Host, USB Device |
| Power Supply | 100-240 V AC, 50/60 Hz |
