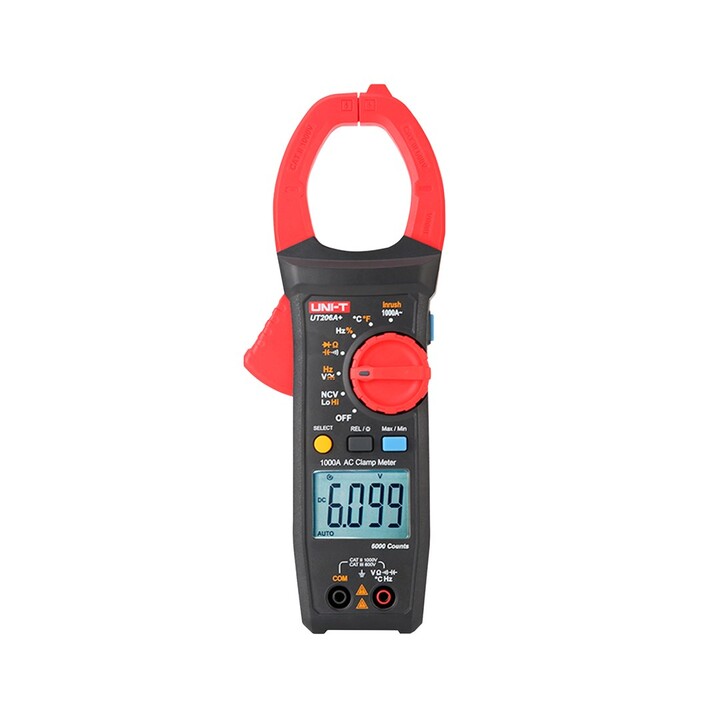

The UNI-T UT206A+ is a versatile clamp meter designed for electrical professionals and DIY enthusiasts. It measures AC and DC current up to 600A without breaking the circuit, using a jaw opening of 30mm. True RMS ensures accurate readings on non-sinusoidal waveforms. The meter also measures AC/DC voltage up to 600V, resistance, capacitance, frequency, and includes diode and continuity testing.
Safety is prioritized with CAT II 600V and CAT III 300V ratings. Additional features include data hold, relative mode, auto power off, and a backlit LCD display. The non-contact voltage (NCV) detector helps identify live wires quickly. Powered by two AAA batteries, the UT206A+ is a reliable tool for troubleshooting electrical systems.
| Brand | UNI-T |
| Model | UT206A+ |
| Type | Clamp Meter |
| AC Current | 0.1A - 600A |
| DC Current | 0.1A - 600A |
| AC Voltage | 0.1V - 600V |
| DC Voltage | 0.1V - 600V |
| Resistance | 0.1Ω - 60MΩ |
| Capacitance | 0.1nF - 60mF |
| Frequency | 10Hz - 10MHz |
| True RMS | Yes |
| Jaw Opening | 30mm |
| Safety Rating | CAT II 600V, CAT III 300V |
| Display | LCD with backlight |
| Power | 2 x AAA batteries |
| Weight | Approx. 200g |
