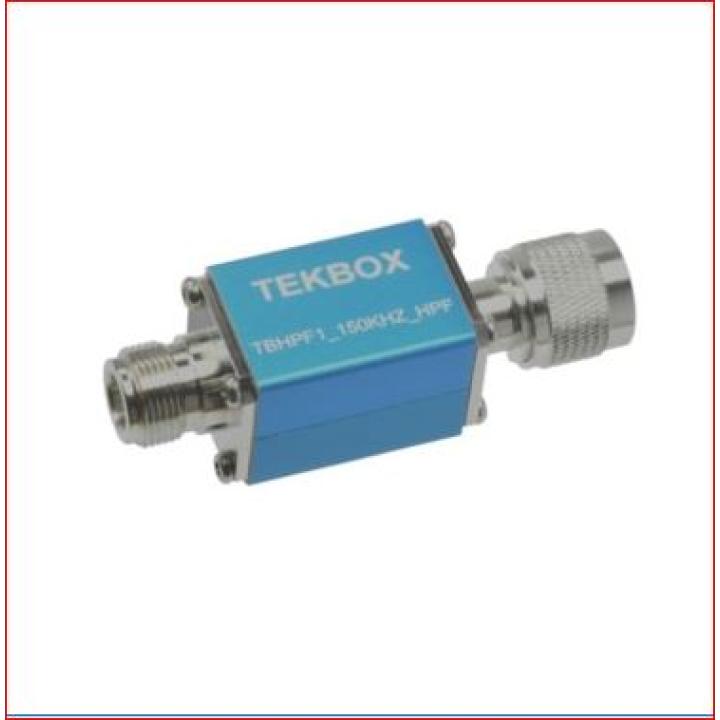

Tekbox TBHPF1-150kHz / High-Pass Filter

Tekbox TBHPF1-150kHz / High-Pass Filter

Tekbox
Reference: TBHPF1-150kHz
Condition: New
€126.41
VAT included
€102.77 Without tax
The Tekbox TBHPF1-150kHz is a high-pass filter designed to protect RF inputs of spectrum analyzers and EMC receivers from high-amplitude subharmonics and 50-Hz residual voltage. It features a 3 dB bandwidth from 150 kHz to 3 GHz, supports up to 100 V input voltage, and includes N-plug/N-jack connectors for reliable connections.

Buy it now and receive it between Wednesday 21 October and Friday 23 October with GLS / UPS / DHL €6.09

Share
Up to 3 years warranty 100% secure payment 14 days return
Spotted a mistake on this page? Tell us

Tell us what is wrong and we will check it. No details needed.

150-kHz high-pass filter for protecting the RF inputs of spectrum analyzers or EMC receivers against high-amplitude subharmonics and 50-Hz residual voltage in test setups for conducted emissions.

SPECIFICATIONS

High-pass filter, reflective, 50 ohms
3 dB bandwidth: 150 kHz – 3 GHz
Maximum input voltage: 100 V, 250 V for < 5 sec.
Maximum permissible input current at frequencies < 150 kHz and open output: 650 mA
Maximum input power at frequencies 300 kHz – 1 GHz: 10 W
Connectors: N-plug / N-jack

  • Brand
    Tekbox
  • Reference
    TBHPF1-150kHz
  • In stock
    4 Items
  • Condition
    New
  • MPN
    TBHPF1-150kHz
