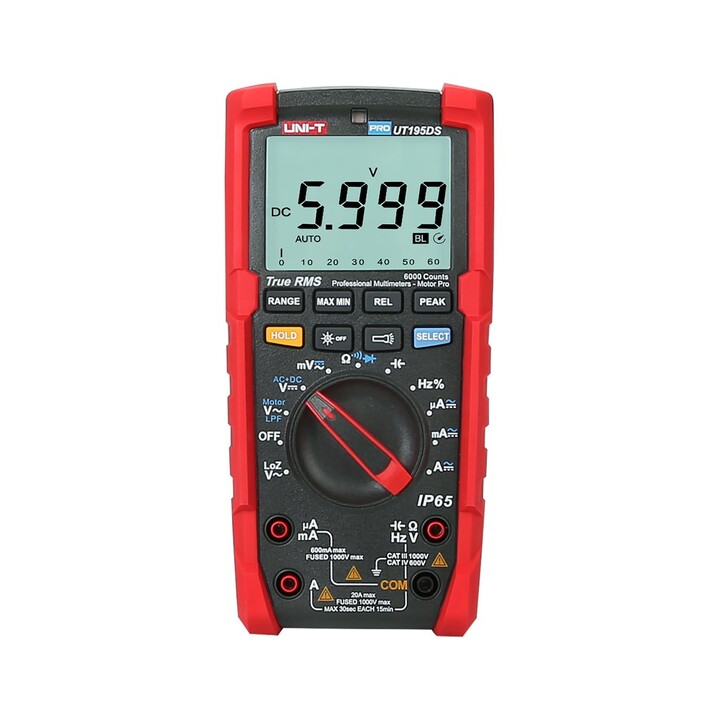

The UNI-T PRO UT195DS is a professional-grade digital multimeter designed for demanding electrical and electronic applications. It features true RMS measurement for accurate readings on non-sinusoidal waveforms, a 6000-count display with bright backlight for easy reading in low-light conditions, and a robust safety rating of CAT IV 600V / CAT III 1000V, ensuring reliable operation in industrial environments.
This multimeter offers both auto-ranging and manual ranging modes, allowing flexibility for various measurement tasks. It includes data logging capabilities and USB connectivity for transferring data to a PC for analysis. Additional features include a low-pass filter for VFD measurements, temperature measurement with a thermocouple, and a built-in flashlight for working in dark spaces. The UT195DS is an essential tool for professional electricians and technicians.
| Display Counts | 6000 |
| True RMS | Yes |
| AC Voltage Range | 0.1 mV to 1000 V |
| DC Voltage Range | 0.1 mV to 1000 V |
| AC Current Range | 0.1 µA to 10 A |
| DC Current Range | 0.1 µA to 10 A |
| Resistance Range | 0.1 Ω to 60 MΩ |
| Capacitance Range | 1 pF to 60 mF |
| Frequency Range | 0.01 Hz to 60 MHz |
| Temperature Range | -40°C to 1000°C |
| Safety Rating | CAT IV 600V / CAT III 1000V |
| Data Logging | Yes |
| PC Connectivity | USB |
| Backlight | Yes |
| Low-Pass Filter | Yes |
| Flashlight | Yes |
