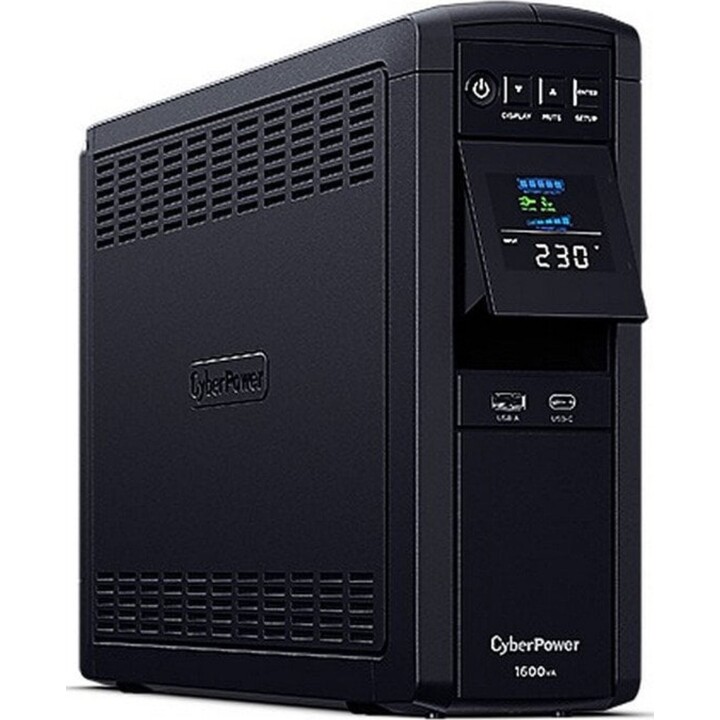

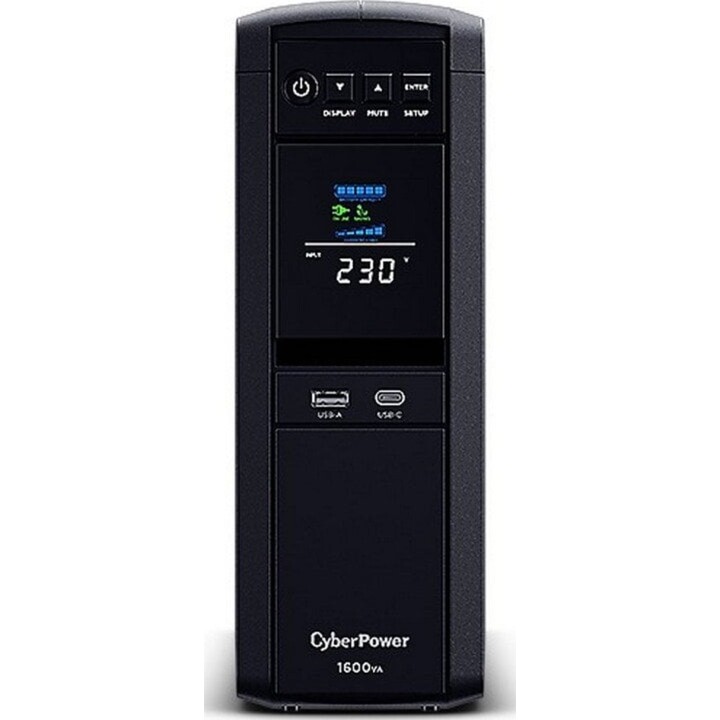

Cyberpower CP1600EPFCLCD Line Interactive UPS Tower Format 1600VA 1000W with 6 Schuko Outlets

The CyberPower CP1600EPFCLCD, with its pure sine wave output, protects mid- to high-end computer systems, servers, and network hardware that use conventional and Active Power Factor Correction (PFC) power supplies. Designed with GreenPower UPS technology to improve UPS operating efficiency and minimize energy consumption, users can enjoy significant energy cost savings compared to conventional UPS systems.

The UPS provides Automatic Voltage Regulation (AVR) to maintain stable voltage for connected equipment. The product features high-speed data line protection to safeguard communication equipment against surges and spikes, and delivers data transmission speeds of up to 1 Gbps. The tiltable color LCD panel allows users to monitor key power and battery information at a glance. The PowerPanel power management software enables real-time monitoring and configuration.

Features

• Line-interactive UPS topology
• Compatible with active PFC
• Automatic Voltage Regulation (AVR)
• LED status indicator
• PowerPanel management software
• USB charging ports
• Tower shape factor
• Energy saving technology
• Pure sine wave output
• Color LCD panel
• SNMP/HTTP remote management capability (optional)
• Protection against surges and spikes
• High-speed Ethernet data transmission

CyberPower CP1600EPFCLCD Specifications

• General
  • Form factor: Tower
  • UPS Topology: Line Interactive
  • Energy-saving technology: GreenPower UPS bypass technology
  • Compatible with Active PFC: Yes
• Prohibited
  • Nominal input voltage (Vac): 220 / 230 / 240
  • Input voltage range (VAC): 169 ~ 271
  • Input frequency (sf): 50 ± 3 / 60 ± 3
  • Input frequency detection: Automatic sensor
  • Nominal input current (A): 10
  • Input connector type: IEC C14
  • Removable power cord connector type: Schuko x
  • Power cord length (feet): 6
  • Power cord length (m): 1.83
• Exit
  • Capacity (VA): 1600
  • Capacity (watts): 1000
  • Battery waveform: Pure Sine Wave
  • Battery voltage(s) (VAC): 230 ± 5% (Under a test load of ≤60%. When the load is ≤60%, the output voltage range may be ≤5%.)
  • Frequency on battery (sf): 50 ± 1% / 60 ± 1%
  • Automatic Voltage Regulation (AVR): Single Boost
  • Overload protection: Internal voltage limitation
  • Departures - Total: 6
  • Outlet type: Schuko x 6
  • Outlets - Battery and surge protected: 6
  • Typical transfer time (ms): 8 (Maximum 12 ms with normal sensitivity)
  • USB charging ports:
    • USB-A x 1
    • USB-C x 1
  • Total USB charging output (Watts): 30
  • USB-A Charging Output: 5V/2.4A Max.
  • USB-C charging output:
    • 5V/ 2.5A Max.
    • 9V/ 2A Max.
    • 15V/ 2A Max.
• Battery
  • Half load execution time (min): 9.7
  • Run time at full load (min): 2.6
  • Typical recharge time (Hours): 8 (Recover to 90% after full discharge)
  • User replaceable: Yes
  • Battery type: Sealed lead-acid
  • Battery Replacement Pack: RBP0142
  • Number of battery replacement packs (pcs): 1
• Surge protection and filtering
  • Surge suppression (Joules): 405
  • RJ45 network protection: 1 input, 1 output
• Management and communications
  • LCD Panel: Yes
  • LCD Types: Color LCD
  • Tiltable LCD panel: 22º
  • LCD Information Display: Operating Type, Power Status, Battery Status, Charging Status, Fault and Warning, Event and Log
  • LCD settings and control: Alarm settings, Input and output, Battery settings, Event and log
  • LED Indicators: Power On
  • HID-compatible USB ports: 1
  • Serial port: Dry contact
  • Audible alarms: Battery mode, Low battery, Overload, UPS failure
  • Cable management (pcs): USB cable x1
  • Ethernet data transmission speed: Up to 1Gbps
  • Power management software: PowerPanel Business (recommended)
  • SNMP/HTTP remote monitoring: Yes - with optional RMCARD205
• Physical size - UPS module
  • Dimensions (WxHxD) (mm): 100 x 280 x 355
  • Weight (kg): 11
• Environmental
  • Operating temperature (°F): 32 ~ 104
  • Operating temperature (°C): 0 ~ 40
  • Operating relative humidity (non-condensing) (%): 0 ~ 95
  • Operating elevation (feet/meters): 0-10,000 feet (0-3,000 meters)
  • Storage temperature (°F): 5 ~ 113
  • Storage temperature (°C): -15 ~ 45
  • Storage relative humidity (non-condensing) (%): 0 ~ 95
  • Storage elevation (feet/meters): 0-50,000 feet (0-15,000 meters)
  • Online heat dissipation (BTU/h): 24
• Certifications
  • Certifications: CE
  • RoHS: Yes
