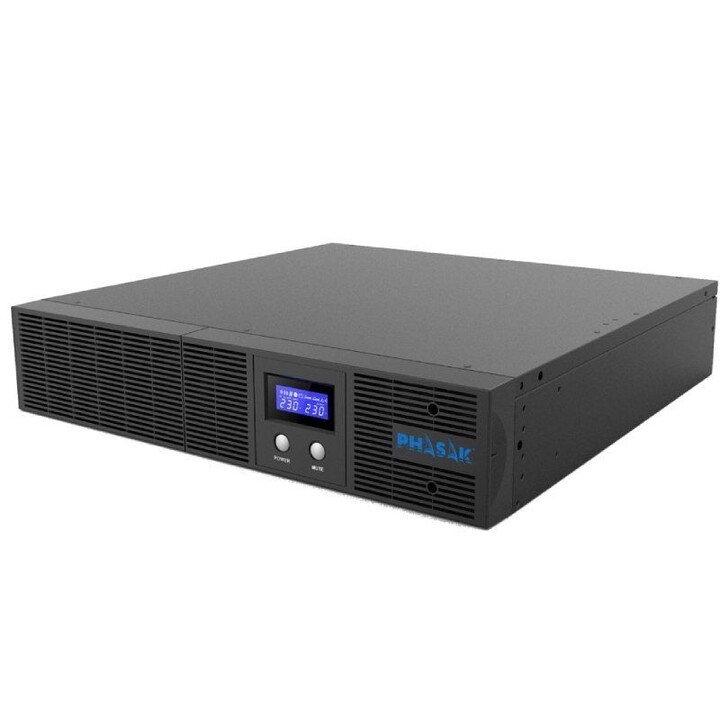

Line Interactive UPS Phasak Protekt Rack/ 1260VA-720W/ 4 Outputs/ Rack Format

A complete solution for users seeking maximum protection and advanced time parameterization through the display and the built-in management software for their servers.

The LCD screen provides real-time information on the voltage measurements at the input and output of the UPS, as well as information on the autonomy time or the current charging capacity of the batteries, among other relevant data. You can perform the management and control of the UPS parameters through the USB port with HID protocol, which allows access to the configuration and shutdown of systems easily from a computer with USB input. The supplied POWER GUIDE software allows monitoring and file management for Windows, Linux and Mac.

Equipment specially recommended for the use of Business IT Networks, telecommunications systems, industrial automation equipment, emergency installations or for the protection of dedicated lines. Critical applications: Industrial, public, pumps or electric motors, etc.

• Automatic Voltage Regulator (AVR)
• Pure Sine Wave
• generator compatible
• Surge Protect sockets
• auto reset
• automatic recharge
• Cold start
• offline upload
• SNMP Slot (Optional)

• Specifications
• Power 1260VA
• 720W capacity
• Entrance
• Voltage Voltage 165V - 290V
• Frequency 50Hz ± 5Hz
• Exit
• Nominal Voltage (Bat.) 230 Vac ±10%
• Frequency (Batt.) 50 Hz ± 1%
• Waveform (Bat.) Sinusoidal
• Overload protection In use: Fuse, Battery connected, Internal current limit
• UPS connectors
• IEC-C13 x2
• SCHUKO x2
• Battery
• Quantity / Type / No. 2x 12V/ 7 Ah
• Charging time (90%) 8h
• Indicators
• Input Current / Output Display
• Alarms Battery on / Battery low / Overload / Fault
• Characteristics
• Weight (Kg) 14.2
• Operating humidity 0 – 90% non-condensing
• Operating temperature 0 - 40ºC
