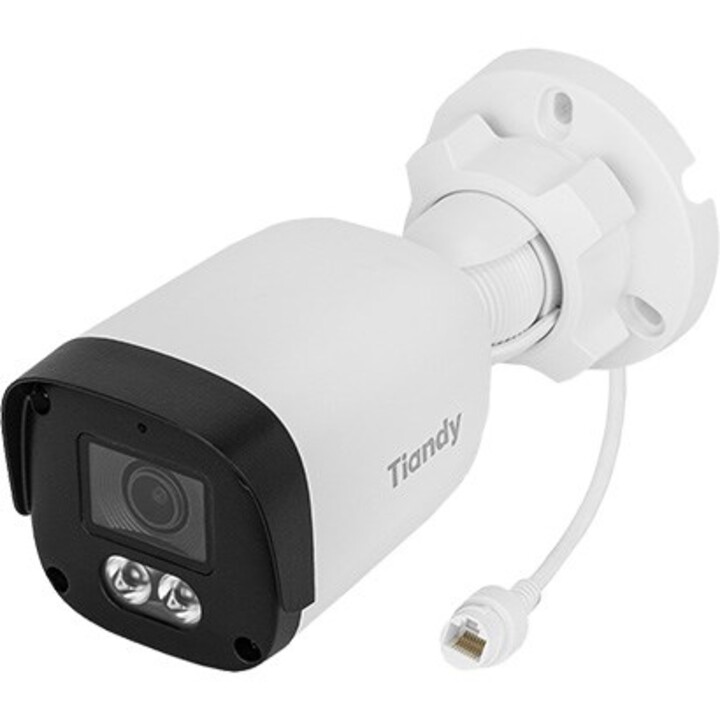

Spark Series 4MP 2.8mm IP Camera
- 4MP (2560x1440) resolution at 25fps
- 2.8mm fixed lens with 105° horizontal FOV
- Smart IR up to 30m distance
- H.265+/H.265/H.264 video compression
- IP67 weatherproof and IK10 vandal-resistant
Spark Series 4MP 2.8mm IP Camera
The Tiandy TC-C34QN from the Spark Series delivers crisp 4MP surveillance with a 2.8mm fixed lens offering a wide 105° horizontal field of view. Equipped with smart IR technology, it provides clear night vision up to 30 meters. The camera supports H.265+ compression to reduce bandwidth and storage usage without sacrificing image quality.
Built for outdoor use, the TC-C34QN features an IP67 weatherproof rating and IK10 vandal-resistant housing, ensuring reliable operation in harsh environments. It includes intelligent analytics such as motion detection, line crossing, and intrusion detection. With PoE support and ONVIF compatibility, integration into existing systems is seamless.
| Image Sensor | 1/3" Progressive Scan CMOS |
| Resolution | 4MP (2560x1440) @ 25fps |
| Lens | 2.8mm fixed, F2.0 |
| Field of View | Horizontal: 105°, Vertical: 57° |
| Minimum Illumination | 0.01 Lux (color), 0 Lux (IR on) |
| IR Range | Up to 30m (smart IR) |
| Video Compression | H.265+/H.265/H.264 |
| Day/Night | ICR auto switch |
| Audio | 1-ch audio input, 1-ch audio output |
| Alarm | 1-ch alarm input, 1-ch alarm output |
| Network | RJ45 10/100Mbps, PoE (802.3af) |
| Protocols | IPv4, IPv6, TCP, UDP, HTTP, HTTPS, RTSP, ONVIF (Profile S/G/T) |
| Smart Analytics | Motion detection, line crossing, intrusion, tampering |
| Storage | MicroSD slot (up to 256GB), NAS |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Power Supply | DC 12V ±25% or PoE (802.3af) |
| Power Consumption | ≤ 8W |
| Operating Temperature | -40°C to 60°C |
| Dimensions | Φ 110mm × 95mm |
| Weight | Approx. 0.5 kg |
