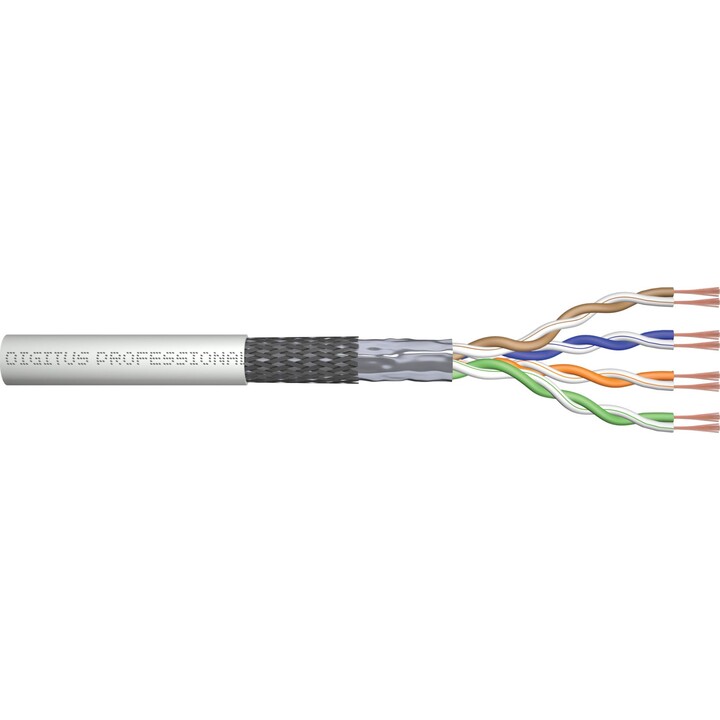

CAT 5e SF-UTP patch cable, 305 m, box, AWG 26/7, PVC, simplex, gray

Description

For the construction of Class D cable lines, 100 MHz.

Technical data

• Insulation: HD-PE
• Outer sheath thickness: 0.55 mm nominal
• Outer diameter: 5.6 mm nominal
• Tension relief: 150 N max.
• Dynamic radius of curvature: 8x AD mm min.
• Static radius of curvature: 4x AD mm min.
• Transport and storage temperature: -10 °C to +75 °C
• Operating temperature: -10 °C to +60 °C
• Installation temperature range: 0 °C to +50 °C
• Loop resistance: °280 km
• Resistance imbalance: 2%.
• Insulation resistance: 2000M?/km @500V
• Capacitance: nominal 48 nF/km @ 800 Hz
• Capacitance imbalance (pair-ground): 1500 nF/km
• Impedance: 100 15 Ohm @ 10-100 MHz
• NVP: 67%
• Delay time: nom. 555 ns/100 m
• Signal travel difference: nom. 50 ns/ 100 m
• Test voltage (DC 1 min) core/core: 1000V
• Coupling attenuation: 40 dB
• Capacitance: 40 pF/m nominal at 800 Hz
• Capacitance imbalance (pair-to-ground): 1.5 pF/m max. @ 1 KHz
• Insulation resistance: 2 GOhm x km min.
• Loop resistance: 147 Ohm/Km max. (2% max. resistance imbalance)
• Operating voltage: 72 Vdc max.
• Insertion loss: 40 dB
• Phase delay: 450 nS/100 m max.
• Timing: 20 nS/100 m max.

Attributes

• Range: Twisted pair cables
• Category: CAT 5e
• Shielding: SF-UTP, foil and braided shielding
• Length: 305 m
• Gray
• Wrapping: PVC
• Structure: 4 x 2 AWG 26/7, twisted pair
• Slim version: no
• Flat Version: no

?
