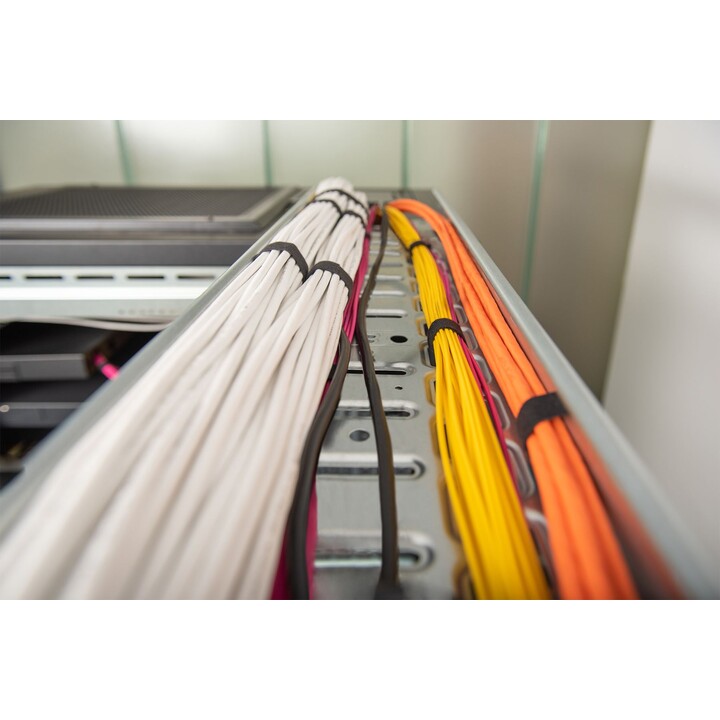

Digitus CAT 5e F-UTP Installation Cable, 100 MHz Eca (PVC), AWG 24/1, 305 m cardboard, Sx, gray

Description

The Digitus Cat.5e F/UTP installation cable features a 4x2x AWG24/1 cable structure and supports transmission frequencies up to 100 MHz. The cable's PVC jacket meets BauPVO Euroclass Eca standards. This cable is suitable for structured cabling in secondary and tertiary building zones. It complies with ISO/IEC 11801, DIN EN 50173, and DIN EN 50288-2-1 standards.

Technical data

• Physical properties:
• Conductor: bare copper wire, AWG 24/1
• Performance consistency assessment and verification system(s): System 3
• Insulation: PE (polyethylene)
• Total number of insulated conductors: 8, twisted into 4 pairs
• Color code: Blue-white, orange-white, green-white, brown-white
• Shielding of individual pairs: None
• General shielding: foil shielding, double cable
• Outer cover: Eca according to EN 50575; PVC
• Outer sheath thickness (nominal): 0.55 mm nominal
• Outer casing color: Gray (RAL 7035)
• Mechanical properties:
• Tension relief: 150N max.
• Dynamic radius of curvature: 8x AD mm min.
• Static radius of curvature: 4x AD mm min.
• Transport and storage temperature: -20 °C to +75 °C
• Operating temperature: -20 °C to +60 °C
• Installation temperature range: 0 °C to +50 °C
• Simplex outer diameter (nominal): 6.1 mm nominal
• Electrical properties:
• Impedance: 100±5 Ohm @ 1-100 MHz
• Capacitance: 40 pF/m nominal at 800 Hz
• Capacitance imbalance (pair-to-ground): 1.5 pF/m max. @ 1 KHz
• Insulation resistance: 5 GOhm x km min.
• Loop resistance: 147 Ohm/km max. (2% max. unbalanced resistance)
• Operating voltage: 72 Vdc max.
• Coupling attenuation: AC-Type 3
• Phase delay: 535 nS/100 m max.
• Timing: 20 nS/100 m max.
• Insulation class: "b" according to EN 50174-2
• NVP: 69%

Attributes

• Range: Twisted pair installation cables
• Category: CAT 5e
• Armor: F-UTP, sheet armor
• CPR: Eca
• Length: 305 m
• Gray
• Wrapping: PVC
• Structure: 4 x 2 AWG 24/1, solid twisted pair
