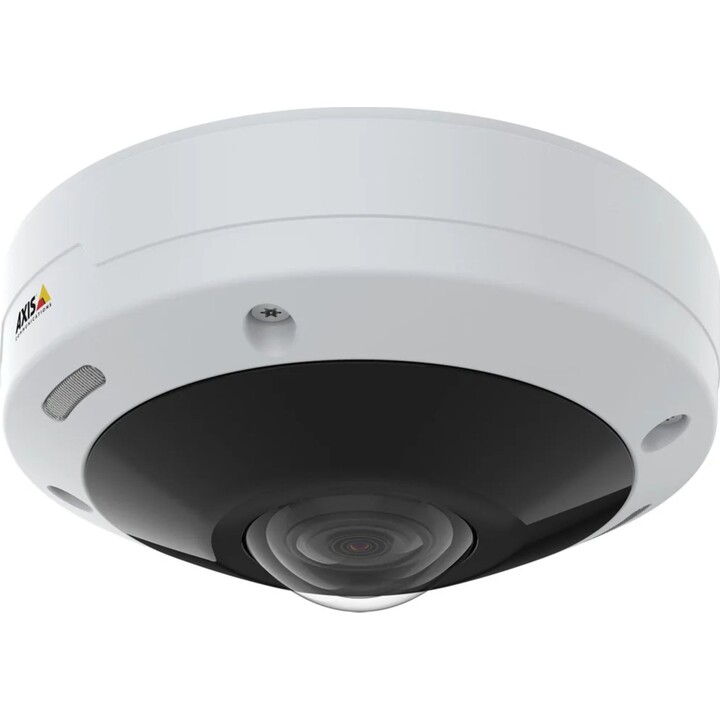

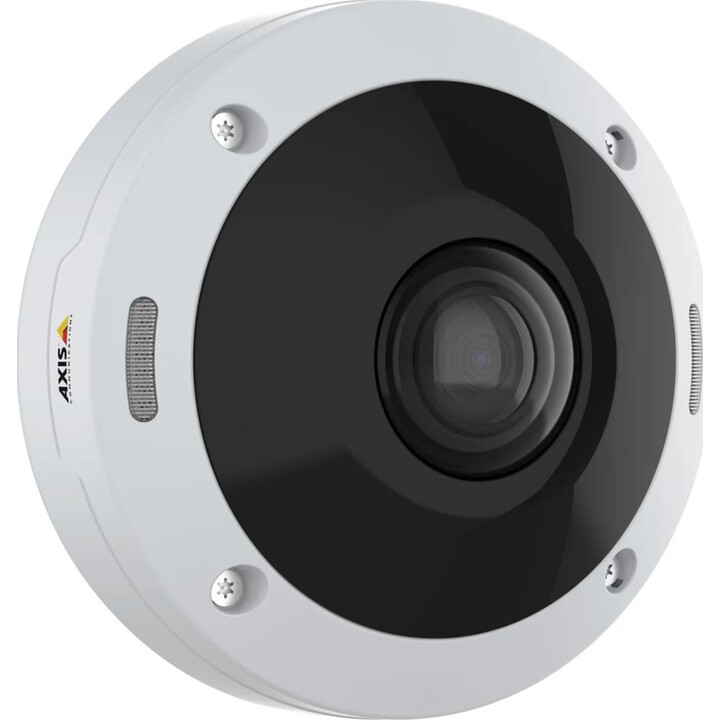

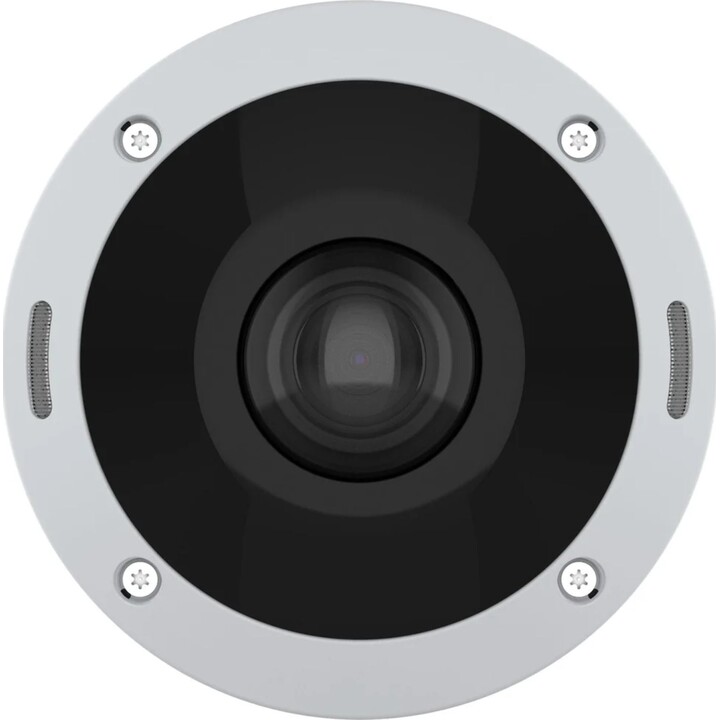

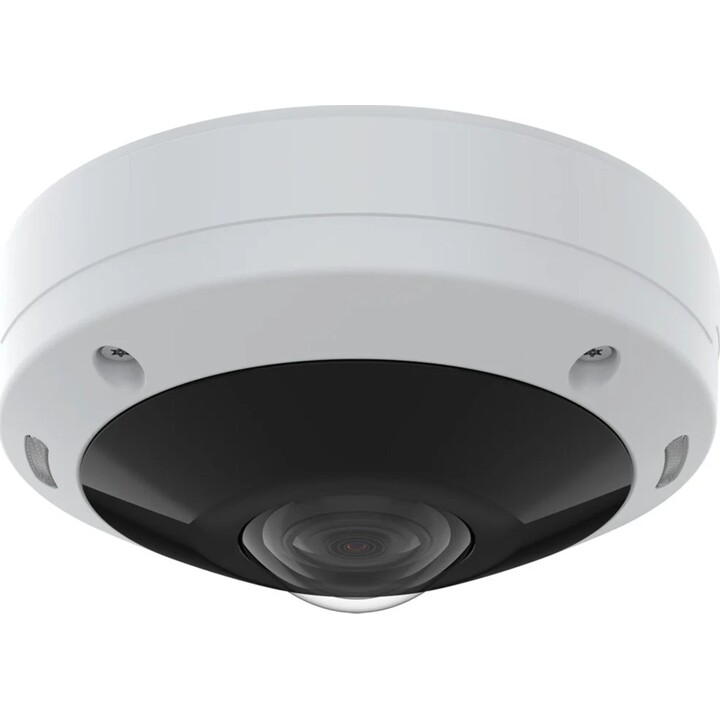

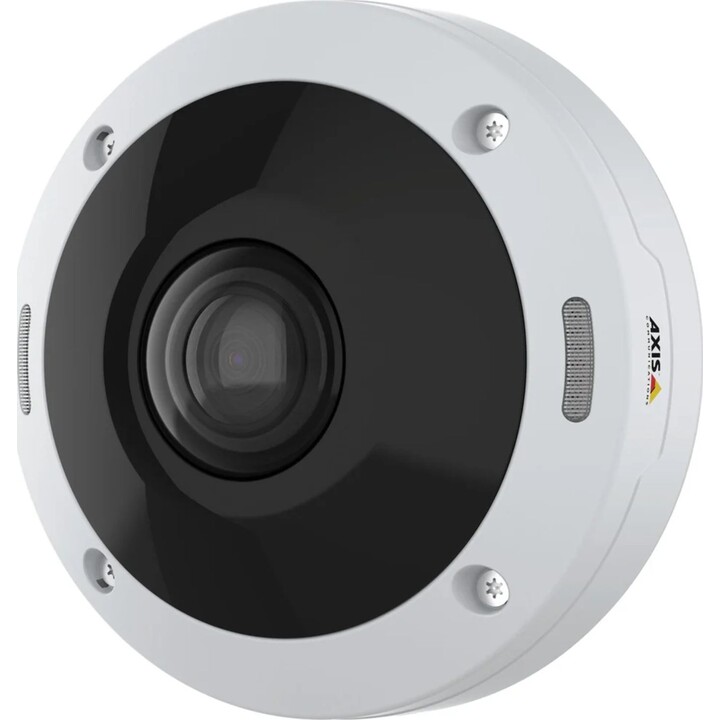

AXIS M4308-PLE Panoramic Network Camera, CMOS sensor, IP66, white

Description

Axis 02100-001 Surveillance Camera Pad IP Security Camera Indoor and Outdoor 2880 x 2880 Pixels Ceiling/Wall

AXIS M4308-PLE is a discreet outdoor mini dome designed to blend seamlessly into any environment. With a 12 MP sensor and stereographic lens, it delivers excellent images and a full 360° panoramic view. Thanks to Sharpdome 360, this panoramic camera offers enhanced sharpness at the image edges. It includes AXIS Object Analytics and the Deep Learning Processing Unit (DLPU) to take advantage of unique deep learning-based analytics opportunities at the edge. It includes Axisightfinder and Axis Forensic WDR for true colors and high detail in low-light or near-dark conditions. Plus, Axis OptimizedIR for surveillance in complete darkness. Four built-in microphones and a voice enhancer deliver audio capture with excellent noise suppression.

Key product points

4 microphones with voice enhancement; Deep learning analytics support; Lightfinder, Forensic WDR, OptimizedIR; Stereo lens and Sharpdome 360; 12 MP sensor with full 360° view

Performance

Type: IP Security Camera

Supported placement: Indoor and outdoor

Connectivity Technology: Wired

PTZ Modes: Digital PTZ

Wide Dynamic Range (WDR): Yes

Day/Night Mode: Yes

Infrared cut filter: Yes

Entry/exit alarm: Yes

Number of languages: 12

Supported languages: Simplified Chinese, Traditional Chinese, German, English, French, Italian, Japanese, Korean, Polish, Portuguese, Russian

Certificación: EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KS C9832 Class A, KS C9835

Design

Form Factor: Pad

Mounting type: Ceiling/wall

Product color: White

LED indicators: Yes

Housing material: Aluminum

Protection features: Dustproof, Waterproof

IP (International Protection) Code: IP66

IK Code: IK10

Camera

Camera pan control: Yes

Camera Tilt Control: Yes

Minimum illumination: 0.04 lx

Field of view (FOV) angle: 183°

Lens angle of view, horizontal: 183°

Shutter speed: 1/22000 - 1 s

Image sensor

Number of sensors: 1

Optical sensor size: 25.4 / 1.7 mm (1 / 1.7")

Progressive Scan: Yes

Sensor type: CMOS

Lens system

Zoom capability: Yes

Number of lenses: 1

Focal length range: 1.3 mm

Autofocus: No

Fixed focus: Yes

Night vision

Night vision: Yes

LED Type: IR

Video

Maximum resolution: 2880 x 2880 pixels

Total megapixels: 12 MP

Video recording: Yes

Frame rate: 30 pps

Video streaming: Yes

Image quality adjustment: Brightness, Contrast

Privacy Mask: Yes

Audio

Supported audio formats: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS

Built-in microphone: Yes

Audio detection: Yes

Connection

Ethernet: Si

Network standards: IEEE 802.3at

Wifi: No

Bluetooth: No

Quality of Service (QoS) support: Yes

Storage media

Built-in HDD: No

Integrated reading card: Yes

Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC

Flash Memory: 1000 MB

Internal memory: 2000 MB

Ports and Interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Active tamper alarm: Yes

IP Address Filter: Yes

Supported security algorithms: 802.1x RADIUS, HTTPS

HTTPS Encryption: Yes

Alert Notification Type: Email, SMS Alert Message

Pixel counter: Yes

Digest Authentication: Yes

Power control

Power: PoE

Power consumption: 7.9 W

Power consumption (max): 15.5 W

Environmental conditions

Operating temperature range: -40 - 50 °C

Storage temperature range: -40 - 65 °C

Relative humidity range for operation: 10 - 100%

Relative humidity range during storage: 5 - 95%

Weight and dimensions

Height: 69 mm

Diameter: 14.9 cm

Weight: 850 g

Package contents

Number of cameras: 1

Mounting kit: Yes

Mounting brackets included: Yes

Includes drilling template: Yes

User Manual: Yes
