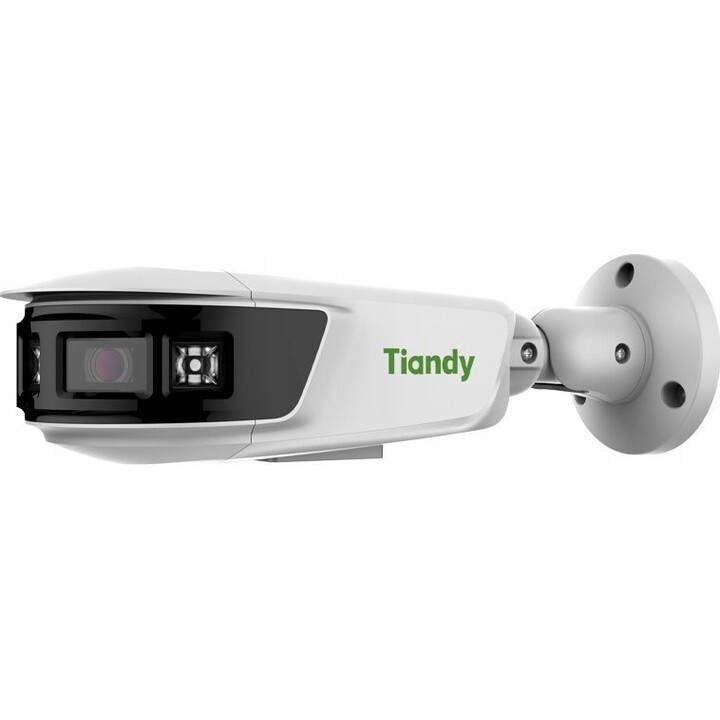

Tiandy TC-C382V outdoor IP camera
- 8MP (3840x2160) resolution at 20fps
- 2.8mm fixed lens with 106° horizontal FOV
- H.265/H.264 video compression
- Smart IR up to 30m (98ft)
- IP67 weatherproof and IK10 vandal-resistant
TC-C382V 8MP IP Camera with 2 x 2.8mm
The Tiandy TC-C382V is a high-performance 8MP IP camera designed for demanding surveillance applications. Featuring a 1/2.8-inch progressive scan CMOS sensor, it delivers crisp 3840x2160 resolution at 20 frames per second. The 2.8mm fixed lens provides a wide 106° horizontal field of view, making it ideal for monitoring large areas such as parking lots, warehouses, or retail spaces. With H.265 compression, bandwidth and storage requirements are significantly reduced without compromising image quality.
Built for outdoor use, the TC-C382V boasts an IP67 rating for dust and water ingress protection and an IK10 vandal-resistant housing. Smart IR technology ensures clear images up to 30 meters in complete darkness. The camera supports Power over Ethernet (PoE) for simple installation and includes advanced analytics such as motion detection, line crossing, and intrusion detection. Multiple models (W/E/Y/S/H) offer variations in lens options or additional features, but the 2.8mm version provides a balanced wide-angle view.
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Resolution | 8MP (3840x2160) @ 20fps |
| Lens | 2.8mm fixed, F2.0 |
| Field of View | Horizontal: 106°, Vertical: 58°, Diagonal: 124° |
| Minimum Illumination | Color: 0.01 Lux @ F2.0; B/W: 0.001 Lux; 0 Lux with IR |
| IR Range | Up to 30m (98ft) Smart IR |
| Video Compression | H.265, H.264, MJPEG |
| Audio | 1ch audio input, 1ch audio output |
| Alarm | 1ch alarm input, 1ch alarm output |
| Network | 10/100Mbps Ethernet, PoE (802.3af) |
| Storage | MicroSD slot (up to 256GB), NAS |
| Smart Analytics | Motion detection, line crossing, intrusion, tampering |
| Weather Rating | IP67 |
| Vandal Rating | IK10 |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Power Supply | DC12V ±25%, PoE (802.3af) |
| Power Consumption | ≤ 12W |
| Dimensions | Φ140mm × 106mm (Φ5.5" × 4.2") |
| Weight | Approx. 0.8kg (1.76lbs) |
