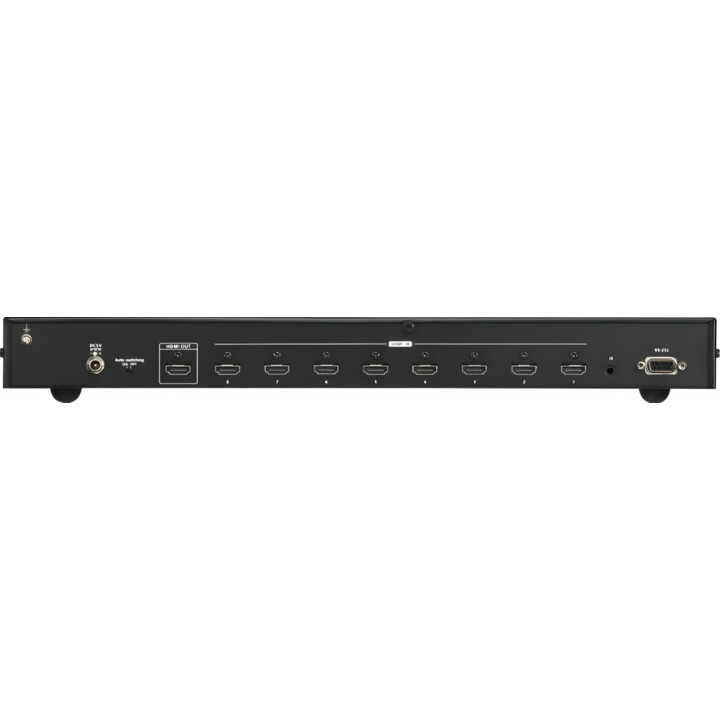

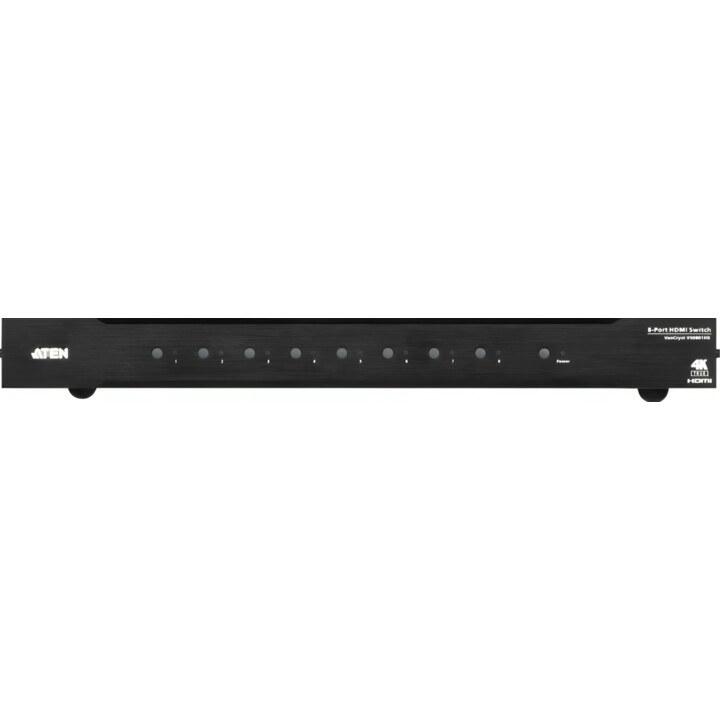

Attach VS801HB Black HDMI Video Switch

ATEN 8-PORT TRUE 4K HDMI SWITCH (VS0801HB-AT-G)(CP3)

Specifications:

- Video port type: HDMI
- HDMI ports: 8
- HDMI input: 8
- Video input: 8 x HDMI Type A Female (Black)
- DC-in jack: Yes
- Number of HDMI outputs: 1
- Port - RS-232: 1
- HDMI version: 2.0
- Video output: 1 x HDMI Type A Female (Black)
- Weight: 2.14 kg
- Width: 158.3mm
- Depth: 437.2mm
- Height: 44mm
- Depth: 43.7 cm (17.2")
- Height: 4.39 cm (1.73")
- Width: 15.8cm (6.23")
- AC adapter input voltage: 5.3 V
- Power consumption: 3.73 W
- Operating temperature range: 0 - 40 °C
- Relative operating humidity: 0 - 80%
- Storage temperature range: -20 - 60 °C
- Product colour: Black
- HDCP: Yes
-Material: Metal
- Frequency: 60Hz
- Maximum operating distance: 3 m
- Supported graphics formats: 1920 x 1080 (HD 1080),3840 x 2160,4096 x 2160
- Maximum resolution: 4096 x 2160 pixels
- Input impedance: 100 Ω
- Output impedance: 100 Ω
- Bandwidth: 600 MHz
- Bandwidth: 6 Gbit/s
- 3D: Yes
- HD resolution: 4K Ultra HD
ATEN s VS0801HB is designed for applications that require redirection of 8 sources to a compatible display device. It supports video resolutions up to true 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and lossless HD audio formats. The VS0801HB incorporates Auto Switching modes for port selection and Instant Switching to enable seamless video transition between HDMI ports. Numerous convenient control options such as front panel pushbuttons, bi-directional RS-232, infrared, and auto switching allow for easy integration.nnDesigned to meet today s demands for true 4K signal transmission and designed with the user, ATEN s VS0801HB is a powerful solution for a wide variety of settings, such as home theaters, meeting rooms, trade shows, and shopping malls.
