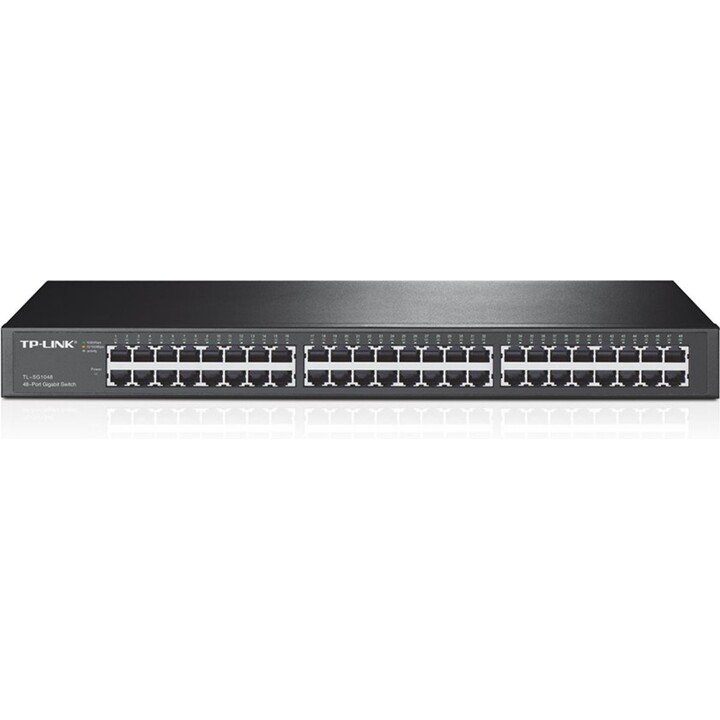

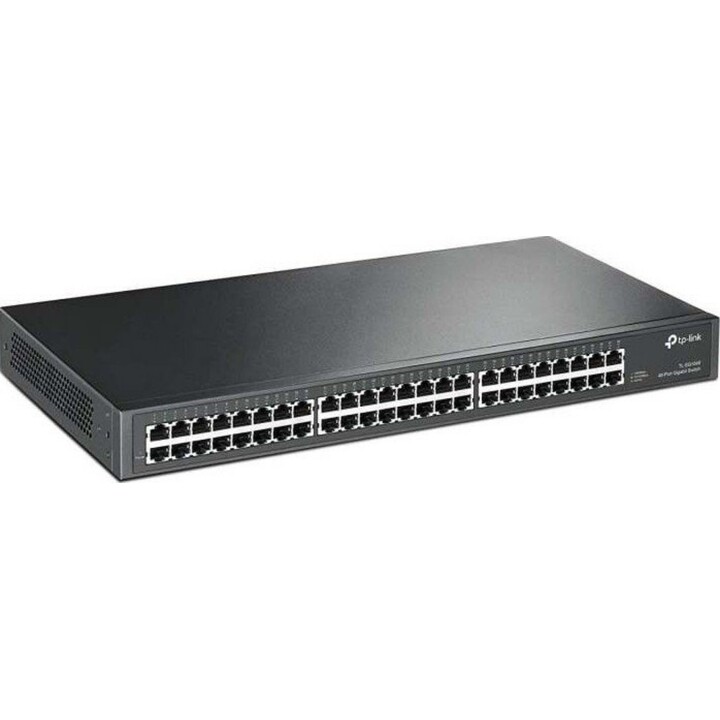

TP-Link 48-Port Gigabit Rackmount Switch (TL-SG1048)

The TP-Link TL-SG1048 is a high-performance, plug-and-play unmanaged switch designed to meet the demanding connectivity requirements of large workgroups and data centers. Featuring 48 10/100/1000 Mbps RJ45 ports, this switch provides a massive 96 Gbps switching capacity, ensuring seamless data transfer and maximum throughput for high-bandwidth applications. Housed in a durable 19-inch rack-mountable steel chassis, the TL-SG1048 is engineered for reliability and longevity in professional environments. It incorporates TP-Link's innovative energy-efficient technology, which automatically adjusts power consumption based on link status and cable length, significantly reducing the carbon footprint of your network. With support for 802.3x flow control and Auto MDI/MDIX, it eliminates the need for crossover cables and ensures stable, high-speed communication across all connected devices.

Technical Specifications

* Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

* Interface: 48 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

* Switching Capacity: 96 Gbps

* Packet Forwarding Rate: 71.4 Mpps

* MAC Address Table: 16K

* Jumbo Frame: 12 KB

* Transfer Method: Store-and-Forward

* Power Supply: 100-240VAC, 50/60Hz

* Power Consumption: Max 32.29W (220V/50Hz)

* Dimensions: 440 x 260 x 44 mm (17.3 x 10.2 x 1.7 in)

* Mounting: 19" Rack Mountable (1U height)

* Fan Quantity: 2 Fans

Key Features

* Gigabit Speed: All 48 ports provide full Gigabit Ethernet connectivity, making it ideal for transferring large files, streaming high-definition media, and supporting high-density virtualization.

* Energy-Efficient Technology: Dynamically optimizes power usage by powering down idle ports and calculating power needs based on cable length, lowering operational costs without sacrificing performance.

* Plug-and-Play Simplicity: Requires no software configuration or complex setup; the unmanaged design and Auto MDI/MDIX features ensure immediate connectivity right out of the box.

* Non-Blocking Architecture: Forwards and filters packets at full wire-speed for maximum throughput, while the 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate traffic congestion.
