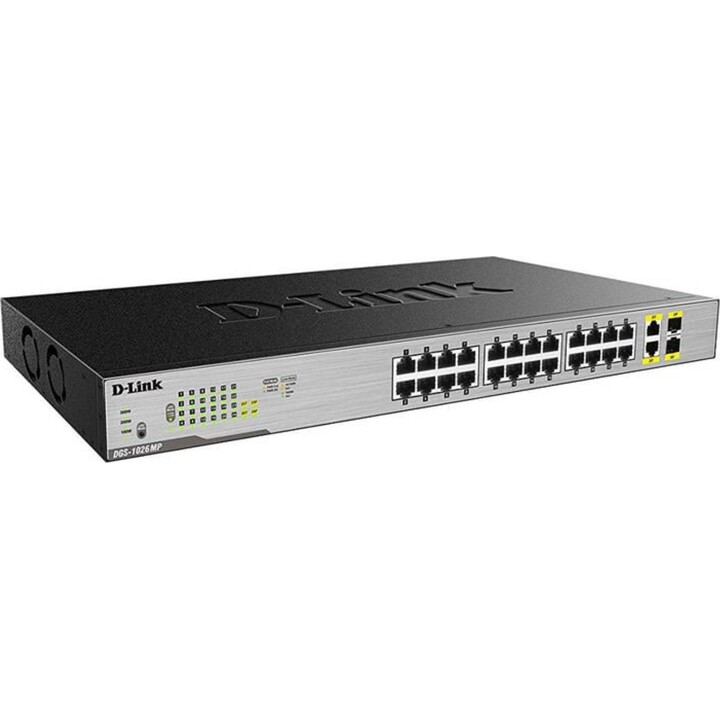

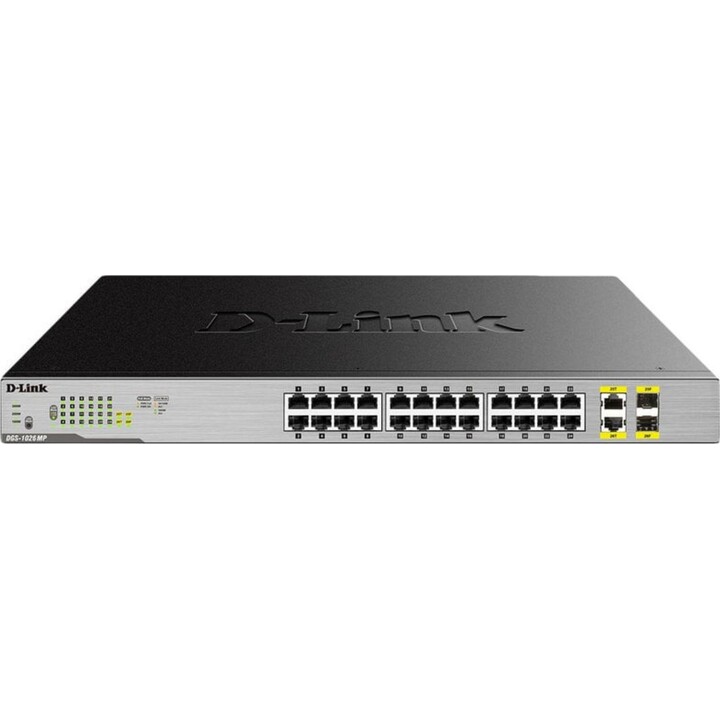

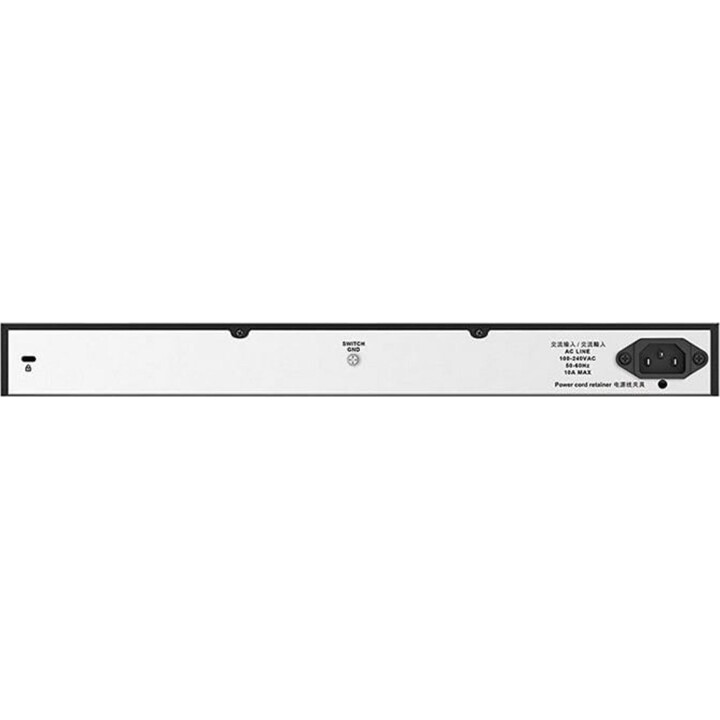

D-Link DGS-1026MP 26-Port Gigabit Switch

The D-Link?DGS-1026MP?26-Port Gigabit Max PoE Switch, thanks to its high Power over Ethernet (370W) budget, is the ideal switch for integrating PoE devices such as Wi-Fi access points (APs), IP cameras, and IP phones into the network of any small or medium-sized business. Each of its 24 Gigabit PoE ports can supply up to 30W, with a total PoE budget of 370W.

Characteristics

• Power over Ethernet (PoE). The DGS-1026MP features 24 x 10/100/1000BASE-T ports compatible with the 802.3at PoE+ standard. Each of the 24 PoE ports can supply up to 30W, with a total PoE power budget of 370W. PoE usage LEDs provide real-time information onctual PoE power consumption on the network and help plan demand to avoid overload issues.
• Deployment versatility. The availability of two Gigabit SFP Combo ports allows for the integration of Copper or Fiber interfaces, so the versatility of the network environment is limitless.
• Energy Efficiency. ?To help SMEs save on operating costs, it supports IEEE 802.3az Energy Efficient Ethernet (EEE). This feature actively monitors network traffic and automatically puts unused ports into hibernation, supplying power only when needed.
• Hassle-free setup. The DGS-1026MP is an unmanaged switch that requires no additional configuration, making installation simple and straightforward. This makes it an excellent choice for small and medium-sized businesses (SMBs) without an IT department that want to save on local network management and maintenance costs.

D-Link DGS-1026MP Specifications

• Ports and Interfaces
  • Number of basic RJ-45 Ethernet switching ports: 24
  • Basic switching type RJ-45 Ethernet ports: Gigabit Ethernet (10/100/1000)
  • Number of SFP modules installed: 1
  • SFP Combo Number of ports: 2

• Weight and dimensions
  • Width: 440 mm
  • Depth: 250.4 mm
  • Height: 44 mm
  • Weight: 3.1 kg

• Energy control
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Power consumption (max): 444.1 W

• Environmental conditions
  • Operating temperature range: 0 - 50°C
  • Storage temperature range: -40 - 70 °C
  • Relative humidity range for operation: 10 - 90%
  • Relative humidity range during storage: 5 - 90%
  • Heat dissipation: 1515 BTU/h

• Connection
  • Network standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
  • Auto MDI / MDI-X: Yes

• Data transmission
  • MAC address table: 8192 entries
  • Switching capacity: 52 Gbit/s
  • Performance: 38.69 Mpps
  • Save and forward: If

• Management features
  • Switch Type: Unmanaged

• Design
  • Product color: Black, Gray
  • LED Indicators: Activity, Link, PoE, Power, Power Failure, Speed
  • Number of fans: 2 Fan(s)
  • Safety: UL/CSA 60950-1, EN 60950-1, IEC 60950-1
  • Certification: FCC Class A\nCE\nCCC\nRoHS\nVCCI\nBSMI\nRCM

• Power over Ethernet (PoE)
  • Power over Ethernet (PoE): Yes
  • Number of Power over Ethernet (PoE) ports: 24
  • Power per Power over Ethernet (PoE) port: 30 W
  • Power over Ethernet (PoE) Budget: 370 W

• Performance
  • Buffer size: 512 KB
  • Mean time between failures: 205975 h
