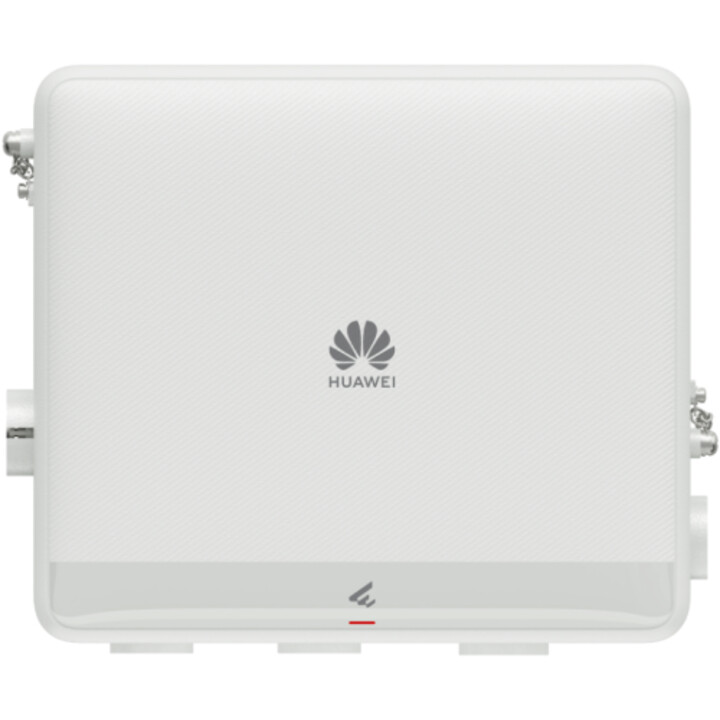

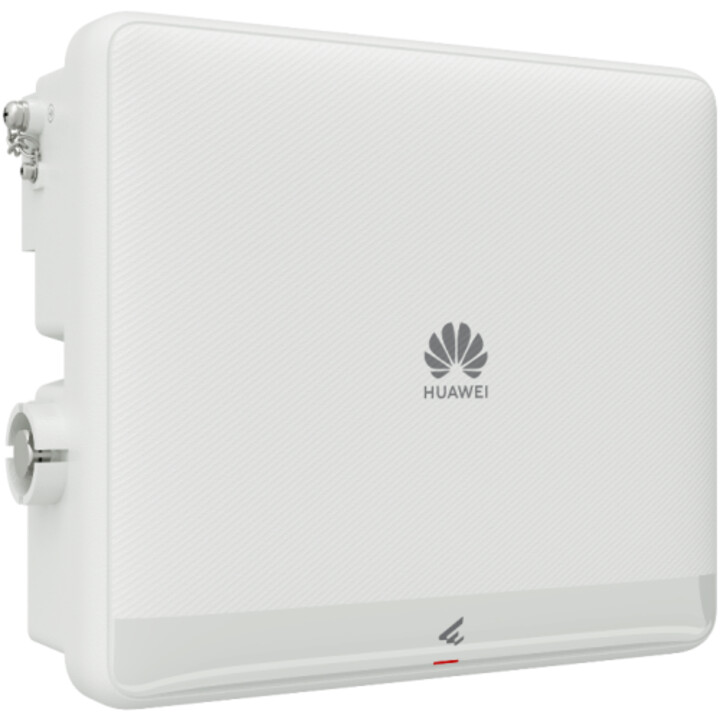

The Huawei Ekit Ap772e is a high-performance wireless access point designed for enterprise networks requiring reliable, high-speed connectivity. Leveraging Wi-Fi 6 (802.11ax) technology, it delivers up to 2.975 Gbps aggregate data rate, ensuring seamless streaming, video conferencing, and IoT device support. With dual-band 2x2 MIMO and advanced features like OFDMA and MU-MIMO, the Ap772e efficiently handles multiple concurrent users in dense environments.
This access point features a 2.5GE uplink port to eliminate bandwidth bottlenecks, making it ideal for high-traffic offices, schools, and public venues. Its built-in antennas with beamforming optimize signal coverage and reduce interference. The Ap772e supports Huawei's cloud management platform for easy deployment and centralized control, ensuring network scalability and security.
| Wi-Fi Standard | 802.11ax (Wi-Fi 6) |
| Frequency Bands | 2.4 GHz and 5 GHz |
| MIMO Configuration | 2x2:2 (2 spatial streams per band) |
| Maximum Data Rate | 2.975 Gbps (2.4 GHz: 574 Mbps, 5 GHz: 2.402 Gbps) |

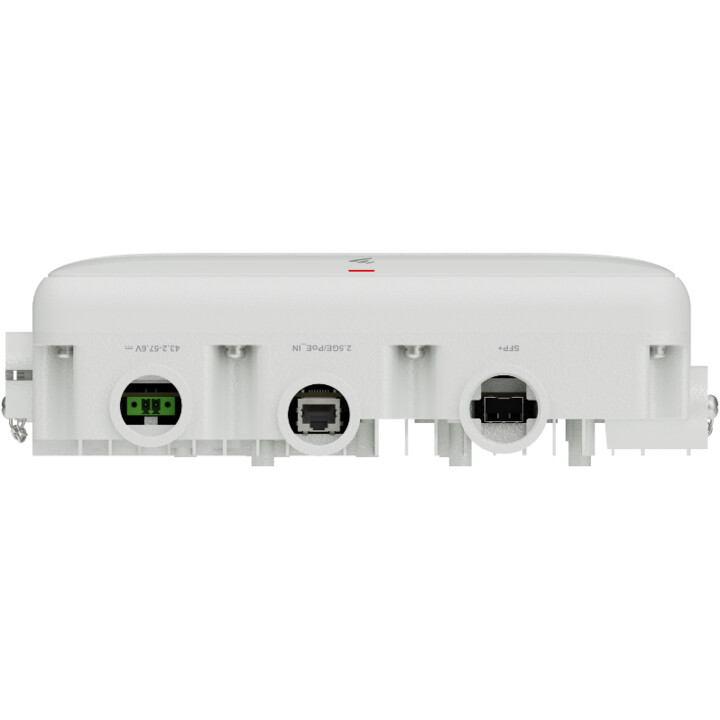

| Ethernet Port | 1x 2.5GE RJ45 |
| Antenna Type | Built-in, beamforming |
| Modulation | 1024-QAM, 256-QAM, 64-QAM, 16-QAM, QPSK, BPSK |
| Security | WPA3, WPA2, 802.1X, MAC filtering |
| Management | Cloud-based (Huawei CloudCampus), local web UI |
| Power Supply | PoE (802.3at) or 12V DC adapter |
| Dimensions (W x D x H) | 200 mm x 200 mm x 35 mm |
| Weight | 0.6 kg |
