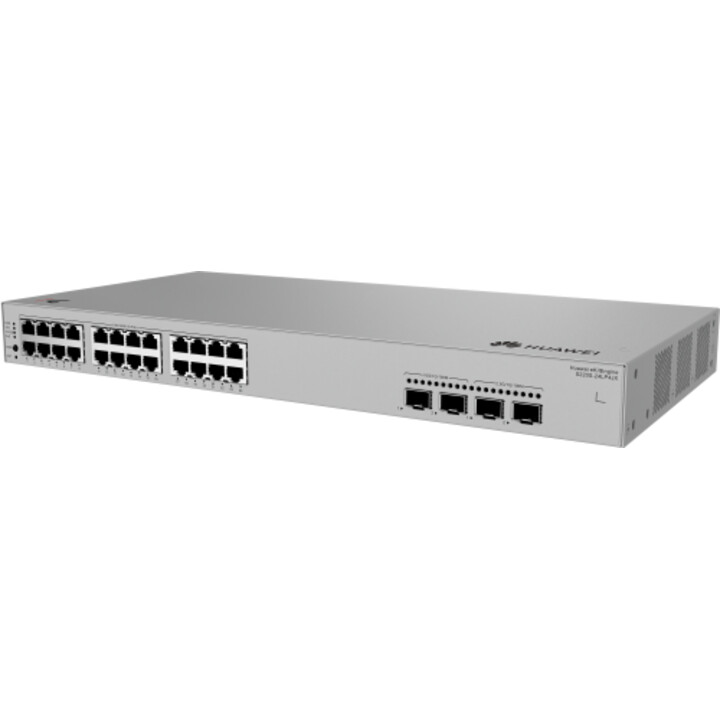

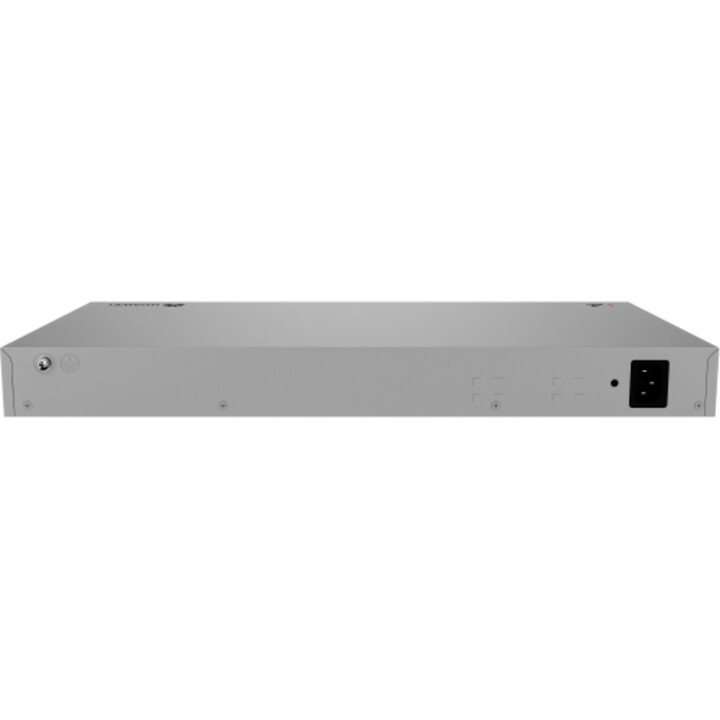

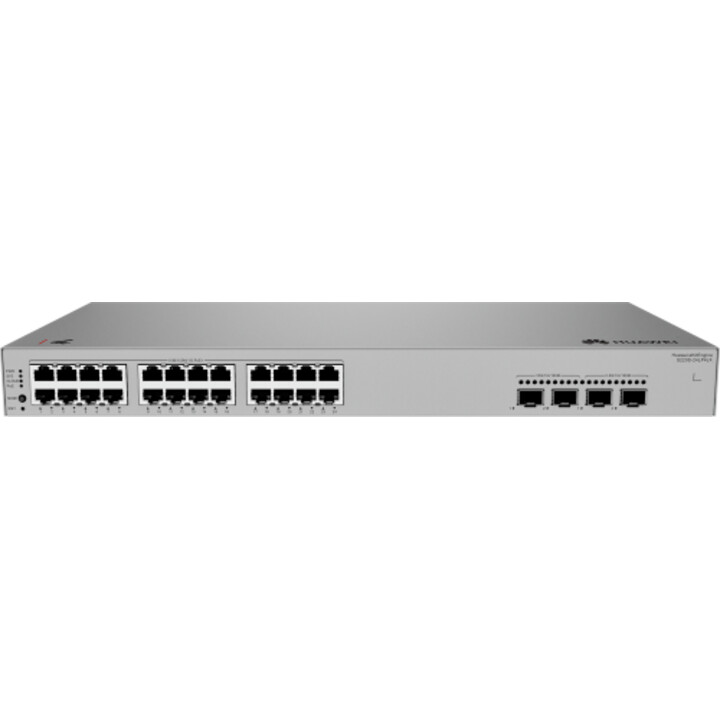

Huawei Ekit S220s Series S220s-24lp4jx Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1u Gray

HUAWEI DATA COMMUNICATION,S220S 24LP4JX,S220S 24LP4JX,S220S 24LP4JX 24 10 100 1000BASE T PORTS 195 W POE, 2 10GE SFP PORTS, 2 2.5GE SFP PORTS, BUILT IN AC POWER

Specs:

- Number of basic RJ-45 Ethernet switching ports: 24
- Basic RJ-45 Ethernet switching ports: Gigabit Ethernet (10/100/1000)
- Number of SFP module slots: 2
- Gigabit Ethernet (copper), number of ports: 24
- Number of SFP+ module slots: 2
- Electrical connector: AC-in power connector
- Width: 442 mm
- Depth: 220 mm
- Height: 43.6 mm
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Number of power supplies: 1
- Power source: Alternating current
- Operating temperature range: -5 - 40 °C
- Operating relative humidity: 5 - 95%
- Storage temperature range: -40 - 70 °C
- Network standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
- 10G Support: Yes
- Port mirroring: Yes
- Adding links: Yes
- Limit rate: Yes
- VLAN Support: Yes
- Storm transmission control: Yes
- Number of VLANs: 4096
- Ethernet LAN, data transfer rate: 10,100,1000 Mbit/s
- Policy-based routing: Yes
- MAC address table: 16000 entries
- Switching capacity: 98 Gbit/s
- Forwarding rate: 73 Mpps
- Quick Setup Guide: Yes
- DHCP Features: DHCP snooping
- Access Control List (ACL): Yes
- IGMP: Yes
- Supported security algorithms: HTTPS, SSH
- IGMP Proxy: Yes
- Switch Type: Managed
- Quality of Service (QoS) support: Yes
- Web-based administration: Yes
- Switch layer: L2
- Managed via the cloud: Yes
- Rack mount: Yes
- Product color: Gray
- LED indicators: Yes
- Form factor: 1U
- PoE: Yes
- Power over Ethernet (PoE) Budget: 195 W
- Power over Ethernet Plus (PoE+) Number of ports: 24
- Multicast support: Yes
