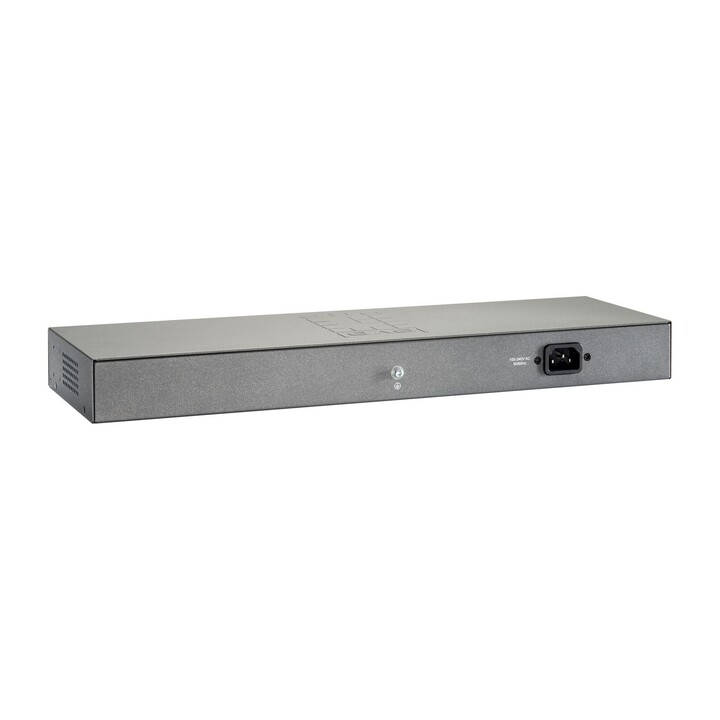

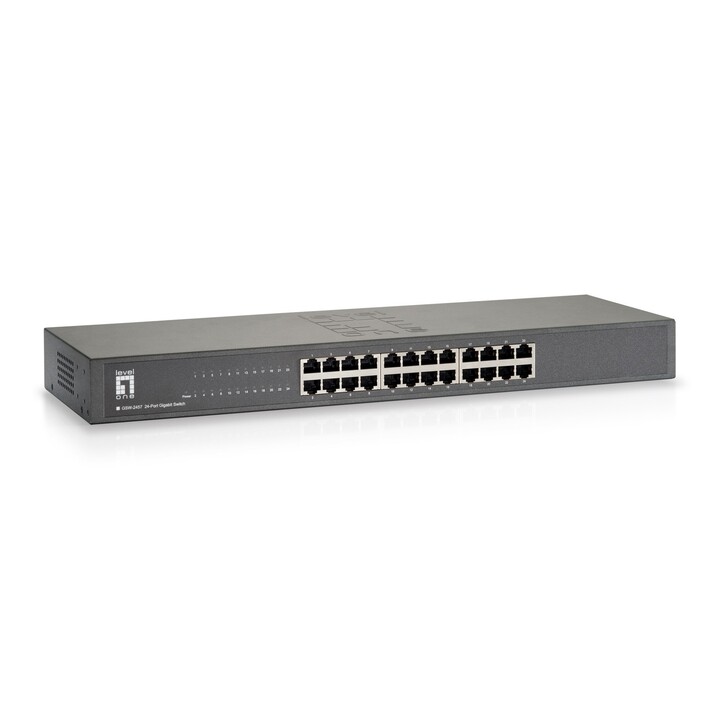

LevelOne GSW-2457 24-port Gigabit switch grey

Gigabit Speeds: Take Your Data to the Next Level
The GSW-2457 is a 24-port Gigabit Ethernet switch that offers high performance, low cost, ease of use and upgradeability to extend your network to 1000Mbps. Increase the speed of your network backbone to an incredible 32Gbps and deliver Gigabit speeds to all your computers.

Need more bandwidth? No problem.
What happens when you have multiple users accessing multimedia applications at the same time? No need to worry as the GSW-2457 lets you move large files faster and easier. Transfer your CGI, CAD, video or other large multimedia files over the network instantly and without lag.

Standards-based
The GSW-2457 features a non-blocking switching architecture that forwards and filters packets at full wire speed. With MAC address auto-learning and auto-aging, IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode, you´ll have powerful features for sending your data across the network.

Plug and Play, flexible and easy
The GSW-2457 is plug and play, so there is no configuration required. By providing auto MDI/MDI-X cable detection on all ports, the need for crossover cables or bonding ports is eliminated. Each port can be used as a general purpose port or bonding port, and any port can be simply connected to a server, hub, router, or switch using either a straight-through or crossover cable. Diagnostic LEDs display connection status and activity, allowing you to quickly detect and correct network problems.

- 24 Gigabit Ethernet ports
- 10/100/1000 Mbps wire speed transmission and reception
- 10000 jumbo frames to increase data transfer speeds
- Supports auto learning and auto aging of 8000 MAC addresses
- QoS control for traffic prioritization and bandwidth allocation
- IEEE 802.3x flow control prevents packet loss to improve data transmission reliability
- 19-inch rack mounting kit included
- Quick and easy installation

LevelOne Switch 24 Gigabit Ports. Switch type: Unmanaged. RJ-45 Ethernet basic switching ports type: Gigabit Ethernet (10/100/1000), RJ-45 Ethernet basic switching ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 48GBit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u. Rack-mountable

Administration Features
Switch type	Unmanaged
Ports and Interfaces
Number of RJ-45 Ethernet basic switching ports	24
Basic RJ-45 Ethernet switching ports	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper), number of ports	24
Connection
Network standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u
10G Support	No
Supports MAC address auto-aging	Yeah
Data transmission
MAC Address Table	8000 entries
Switching capacity	48GBit/s
Forwarding rate	1,488 Mpps
Save and forward	Yeah
Jumbo Frames, stand	Yeah
Jumbo Plots	9000
Design
Rack mount	Yeah
Product color	Black
Case material	Metal
LED indicators	Activity, Link, Power, Speed
Country of origin	China
Performance
Embedded processor	Yeah
Flash memory	4 MB
Energy control
AC input voltage	100 - 240 V
AC input frequency	50 Hz
Energy consumption	15 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Environmental conditions
Operating temperature range	0 - 40 °C
Storage temperature range	-40 - 70 °C
Relative humidity range for operation	10 - 90%
Relative humidity range during storage	5 - 90%
Weight and dimensions
Broad	44 mm
Depth	220 mm
Height	440 mm
Weight	2.65 kg
Packaging
Cables included	AC
Quick Setup Guide	Yeah
Mounting shelf	Yeah
Package width	224 mm
Package depth	486 mm
Package height	77 mm
Package weight	2.2 kg
Logistics data
Width of master box	405 mm
Box length	500 mm
Harmonization System (HS) Code	85176990
Weight of full package	12 kg
Quantity per box	5 piece(s)
